Omron E2B-M12LN08-M1-B1, Inductive Threaded Barrel Proximity Sensor, M12, 8 mm Detection, PNP NO, 12 → 24 V dc

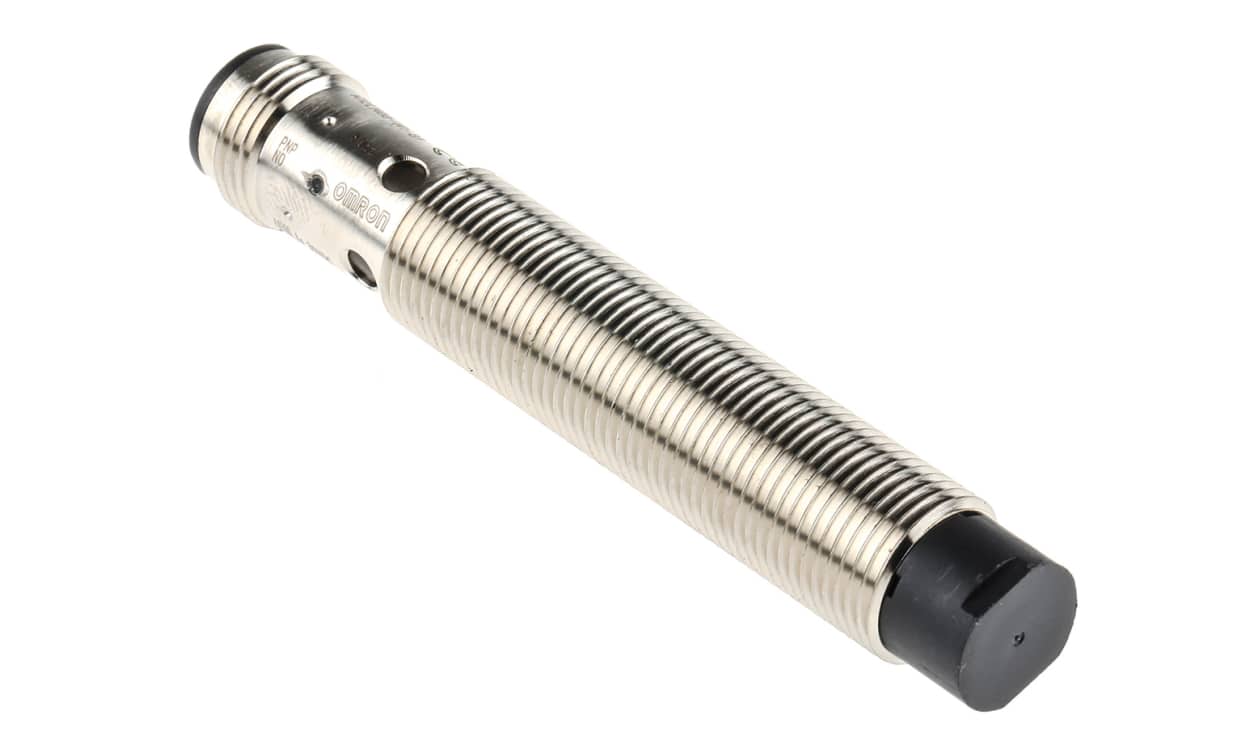

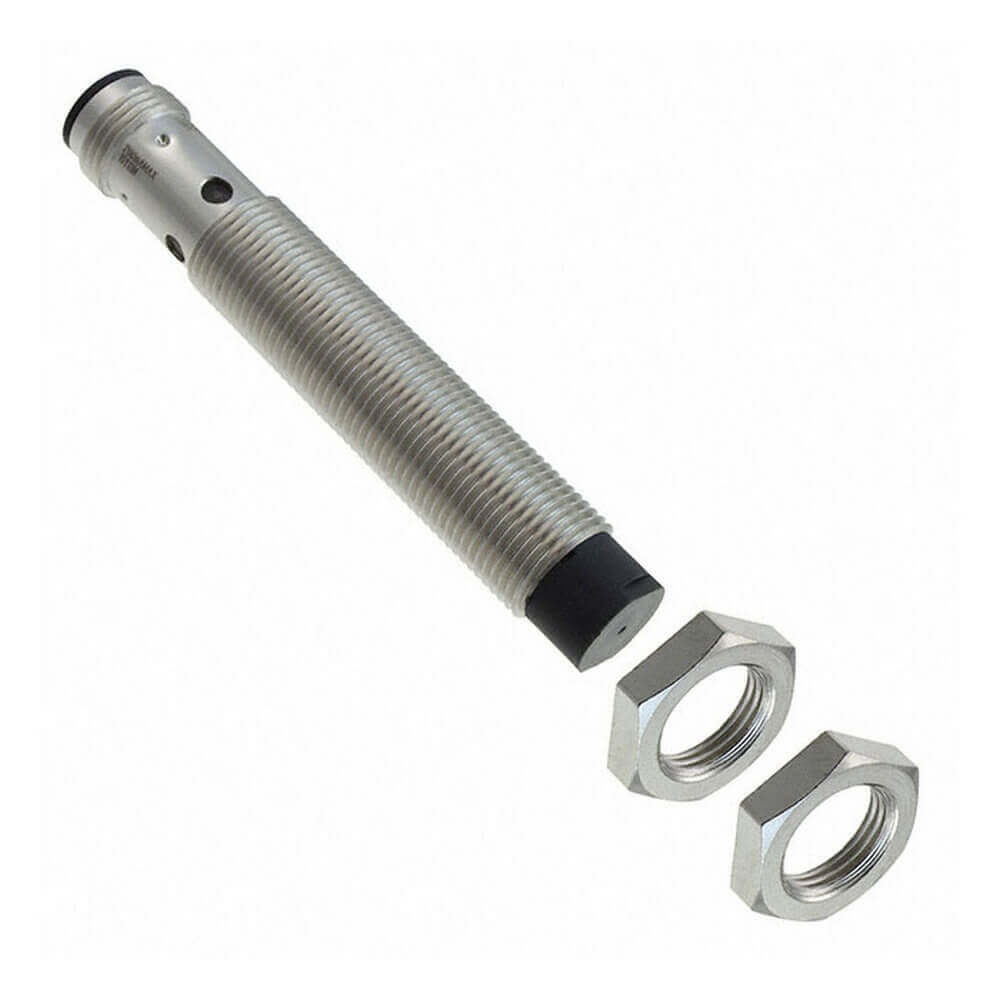

Name: Omron E2B-M12LN08-M1-B1, Inductive Threaded Barrel Proximity Sensor, M12, 8 mm Detection, PNP NO, 12 → 24 V dc
Brand: OMRON
SKU: E2B-M12LN08-M1-B1
Availability: OutOfStock

Part Number : E2B-M12LN08-M1-B1

Proximity sensor, LITE, inductive, nickel-brass, long body, M12, unshielded, 8 mm, DC, 3-wire, PNP-NO, M12 plug-in

Availability: Sold out

Detailed Description
Specifications
Features

Omron Proximity Sensor, 8mm Sensing Distance, IP67 - E2B-M12LN08-M1-B1

This proximity sensor is an inductive device with a cylindrical M12 body style, designed for versatile mounting. It offers a detection range of 8mm and operates with a supply voltage of 12 to 24V DC. With an IP67 rating, it is resistant to dust and water ingress.

Features & Benefits

• Supports PNP output for versatile integration
• Non-flush design for precise sensing
• Unshielded type for effective sensing in standard conditions
• Short circuit and reverse polarity protection for enhanced safety

Applications

• Detecting metal objects in manufacturing
• Position sensing in assembly automation
• Object detection in packaging industries
• Accurate feedback in robotic systems
• Installation in environments with moisture exposure

Can it detect non-metal objects?

No, it is specifically designed for ferrous metals.

Will it function properly in high humidity?

Yes, it is rated IP67 for protection against water exposure.

Is it easy to install?

Yes, the 4-pin M12 connector simplifies installation.

Can it withstand extreme temperatures?

It operates reliably from -25°C to +70°C.

Brand	Omron
Thread Size	M12
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	8 mm
Output Function	NO
Digital Switching Output Type	PNP
Connection Type	M12
Supply Voltage	12 → 24 V dc
IP Rating	IP67
Length	74mm
Mounting Type	Non-Flush
Housing Material	Brass Nickel Plated
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+70°C
Switching Frequency	800 Hz
Short Circuit Overload Protection	Yes
Standards Met	CE
Switching Current	200 mA

Proximity sensor, LITE, inductive, nickel-brass, long body, M12, unshielded, 8 mm, DC, 3-wire, PNP-NO, M12 plug-in
