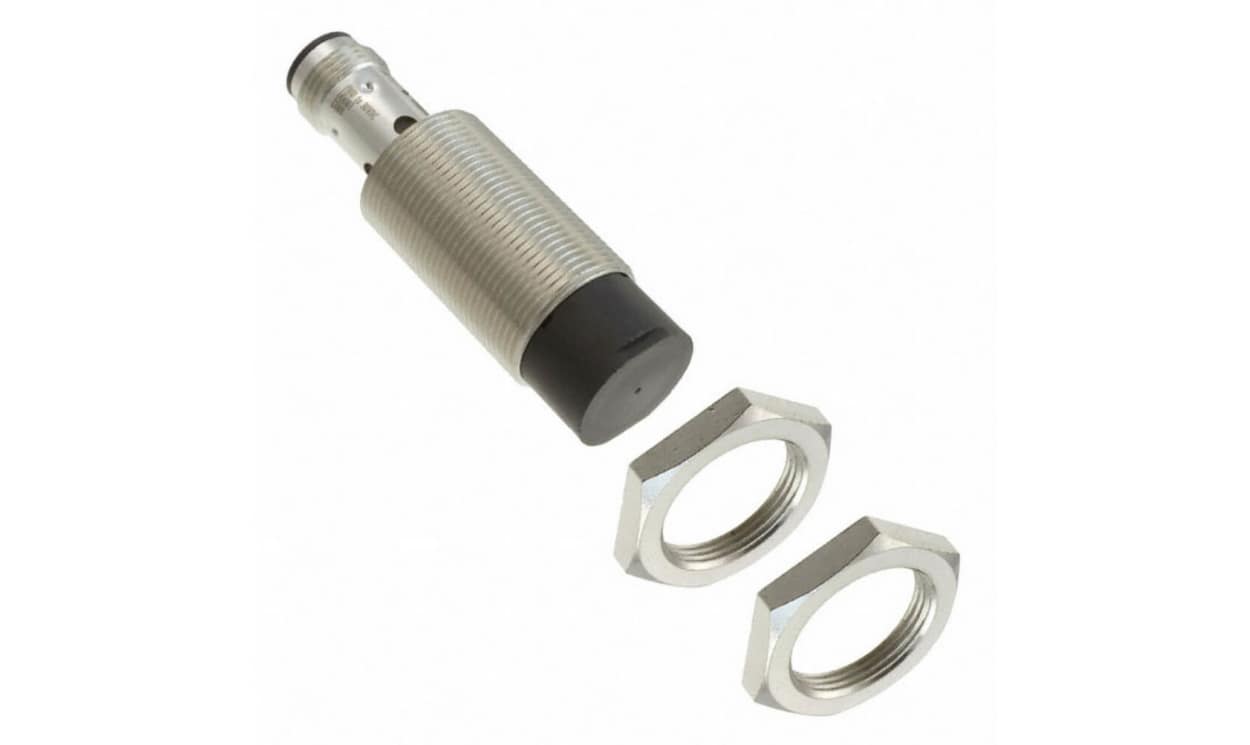

OMRON E2B-M18KN16-M1-C1 | Inductive Threaded Barrel Proximity Sensor | M18, 16 mm, NPN NO, M12 Connector

Name: OMRON E2B-M18KN16-M1-C1 | Inductive Threaded Barrel Proximity Sensor | M18, 16 mm, NPN NO, M12 Connector
Brand: OMRON
SKU: E2B-M18KN16-M1-C1
Availability: InStock

Part Number : E2B-M18KN16-M1-C1

The OMRON E2B-M18KN16-M1-C1 is an inductive threaded-barrel proximity sensor with an M18 thread and a 16 mm sensing distance. It has an NPN normally open (NO) output and connects via an M12 plug-in connector. It is listed as part of the E2B LITE range.

Type: DC, 3-wire
Supply voltage: 10 to 30 V DC
Switching frequency: 400 Hz
Housing length: 59 mm (short body)
Housing material: nickel-plated brass
Protection rating: IP67

Availability: low stock

Detailed Description
Specifications
Features
Downloads

Omron E2B Series Proximity Sensor, 16mm Detection Range, M18 Thread size - E2B-M18KN16-M1-C1

This proximity sensor is designed to detect without direct contact, offering a seamless solution for automation needs. Featuring a detection range of up to 16mm, this inductive sensor is ideal for applications where reliable metal detection is crucial. With dimensions of 59mm in length and 16.4mm in depth, it fits well in various environments, ensuring robust performance under demanding conditions.

Features & Benefits

• Compact design allows for flexible installation in tight spaces
• Brass body enhances durability and withstands harsh environments
• Operates within a supply voltage range of 10 to 30 V DC
• Shielded construction minimises signal interference for reliable readings

Applications

• Ideal for detection in automated machinery
• Useful in conveyor systems for object positioning
• Effective in packaging machines for product counting
• Effective for communication in industrial automation setups
• Suitable for non-flush mounting in equipment controls

What operating temperature range can be maintained for this sensor?

The sensor operates effectively between -25°C to +70°C, ensuring reliability in various conditions and environments.

How does the brass body contribute to the sensor’s longevity?

The brass material not only provides durability but also offers resistance to chemical corrosion, making it suitable for different industrial settings.

What kind of output signal does this sensor generate?

It generates an NPN output signal, which is compatible with most control systems and allows for straightforward integration.

Can this sensor be used in environments with high humidity?

Yes, the IP67 rating indicates its protection against moisture and dust, making it suitable for humid environments as well.

Brand	Omron
Thread Size	M18
Sensor Technology	Inductive
Detection Range	16 mm
Body Style	Threaded Barrel
Output Function	NO
Digital Switching Output Type	NPN
Connection Type	M12
Supply Voltage	10 → 30 V dc
IP Rating	IP67
Length	59mm
Mounting Type	Non-Flush
Housing Material	Brass
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Shielding	Shielded
Maximum Operating Temperature	+70°C
Switching Frequency	400 Hz
Series	E2B
Depth	16.4mm

Proximity sensor, LITE, inductive, nickel-brass, short body, M18, unshielded, 16 mm, DC, 3-wire, NPN-NO, M12 plug-in

OMRON E2B-M18KN16-M1-C1 | Inductive Threaded Barrel Proximity Sensor | M18, 16 mm, NPN NO, M12 Connector

DOWNLOAD CATALOG

E2B-M18KN16-M1-C1 Brochure - Inductive Proximity Sensors A700000014068258

E2B-M18KN16-M1-C1 Instruction Sheet - E2B Series A700000014068621
