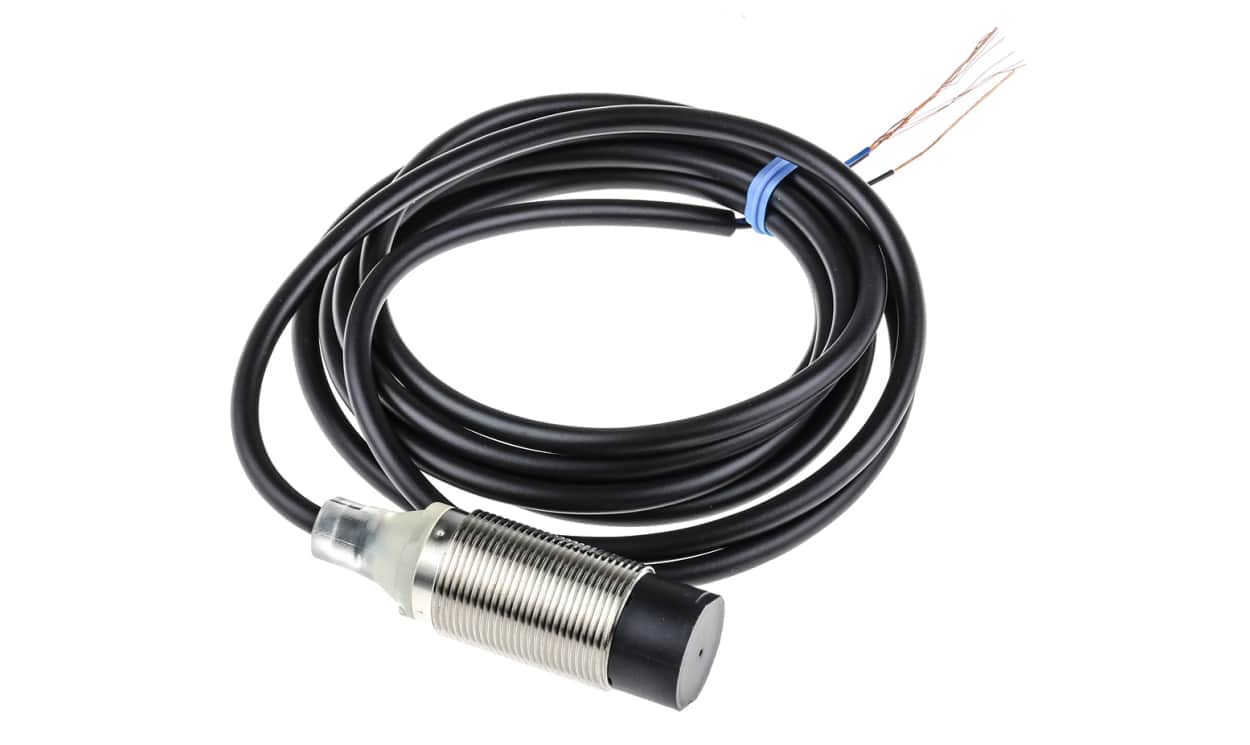

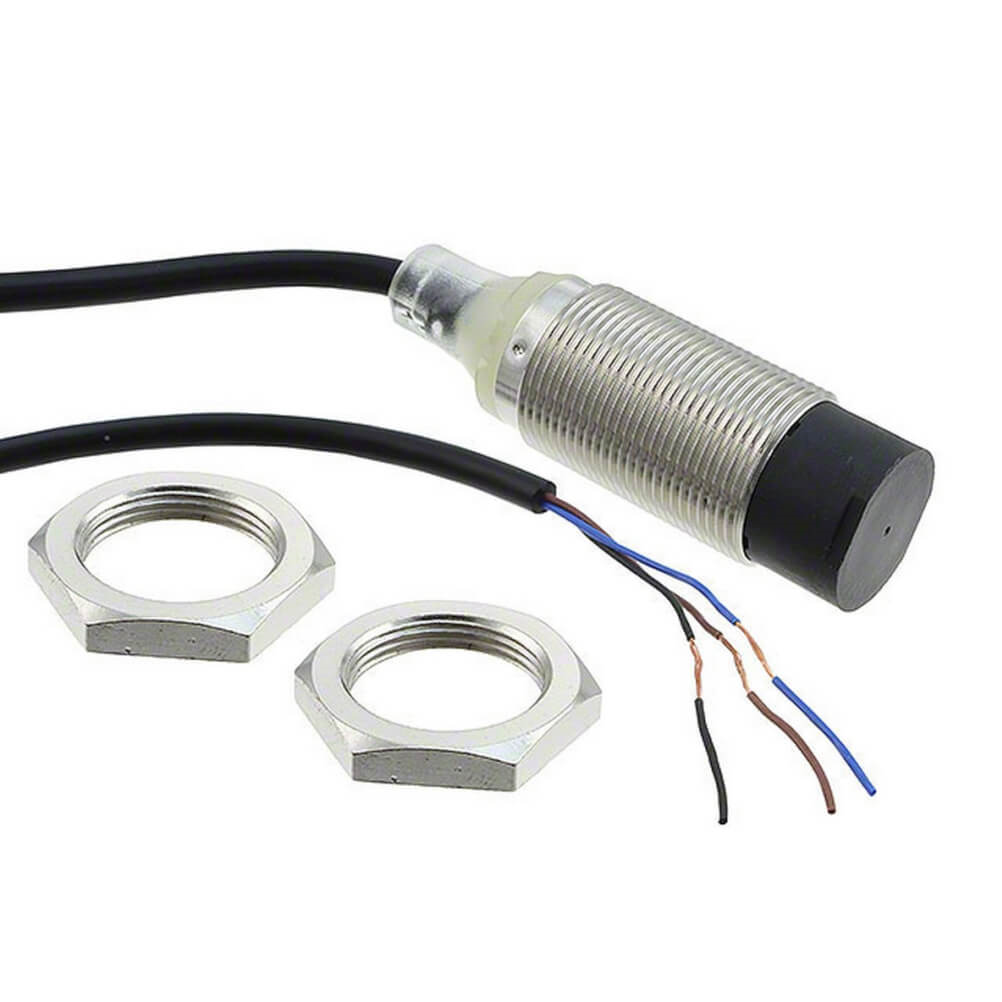

Omron E2B-M18KN16-WP-B1 2M, Inductive Threaded Barrel Proximity Sensor, M18, 16 mm Detection, PNP NO, 12 → 24 V dc

Name: Omron E2B-M18KN16-WP-B1 2M, Inductive Threaded Barrel Proximity Sensor, M18, 16 mm Detection, PNP NO, 12 → 24 V dc
Brand: OMRON
SKU: E2B-M18KN16-WP-B1 2M
Availability: OutOfStock

Part Number : E2B-M18KN16-WP-B1 2M

Proximity sensor, LITE, inductive, nickel-brass, short body, M18, unshielded, 16 mm, DC, 3-wire, PNP-NO, 2 m cable

Availability: Sold out

Detailed Description
Specifications
Features

Omron E2B Series Proximity Sensor, PNP Output, 16mm Detection Range - E2B-M18KN16-WP-B1 2M

This proximity sensor enhances automation in diverse industrial settings by utilising inductive technology to detect metallic objects without contact. With a detection range of 16mm and a sturdy brass housing, it is suitable for applications where dependability is crucial. The sensor's IP67 rating ensures it performs effectively in challenging environments, making it ideal for non-flush mounting solutions.

Features & Benefits

• Inductive technology ensures accurate non-contact detection
• 360-degree visible indicator for improved visibility
• IP67 rating provides protection against moisture and dust
• Equipped with reverse polarity and short-circuit protection
• Supplied with a 2m pre-wired connexion for straightforward installation
• Supports PNP output for compatibility with various devices

Applications

• Utilised in robotic automation systems for object detection
• Essential for assembly lines where positioning accuracy is important
• Applied in packaging machinery to identify metal components
• Effective for controlling material handling equipment
• Suitable for CNC machines to prevent tool collisions

How quickly can the sensor respond after being powered on?

It is ready to operate within 100 milliseconds after power is supplied.

Can this sensor be installed in hazardous environments?

It is not designed for explosive environments or where personnel safety is a concern.

What is the maximum load current supported by this sensor?

It supports a maximum load current of 200mA.

Is the sensor suitable for outdoor applications?

While it is water-resistant, it should not be immersed in water or exposed to direct rain.

How to know if the sensor is operating correctly?

The yellow indicator LED provides a visual cue for operation status

ensure it lights up during detection.

Brand	Omron
Thread Size	M18
Sensor Technology	Inductive
Detection Range	16 mm
Body Style	Threaded Barrel
Output Function	NO
Digital Switching Output Type	PNP
Cable Length	2m
Connection Type	Pre-Cabled
Supply Voltage	12 → 24 V dc
Length	36mm
IP Rating	IP67
Mounting Type	Non-Flush
Housing Material	Brass
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Shielding	Unshielded
Switching Current	200 mA
Maximum Switching Frequency	400Hz
Switching Frequency	400 Hz

Proximity sensor, LITE, inductive, nickel-brass, short body, M18, unshielded, 16 mm, DC, 3-wire, PNP-NO, 2 m cable
