Omron E2B-M18KS08-M1-B1, Inductive Threaded Barrel Proximity Sensor, M18, 8 mm Detection, PNP NO, 12 → 24 V dc

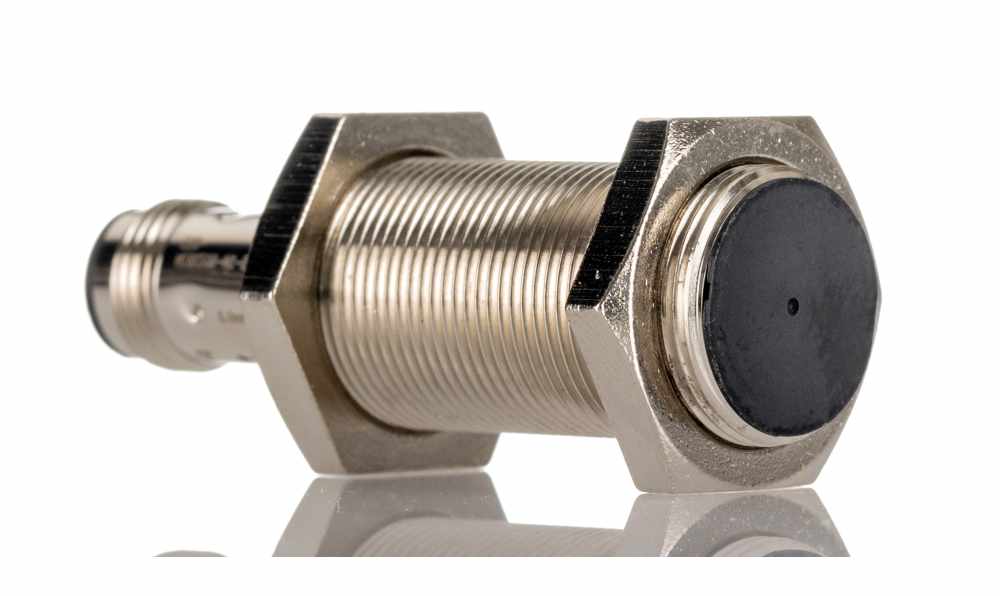

Name: Omron E2B-M18KS08-M1-B1, Inductive Threaded Barrel Proximity Sensor, M18, 8 mm Detection, PNP NO, 12 → 24 V dc
Brand: OMRON
SKU: E2B-M18KS08-M1-B1
Availability: OutOfStock

Part Number : E2B-M18KS08-M1-B1

Proximity sensor, LITE, inductive, nickel-brass, short body, M18, shielded, 8 mm, DC, 3-wire, PNP-NO, M12 plug-in

Availability: Sold out

Detailed Description
Specifications
Features

Omron E2B Proximity Sensor, Inductive Sensor Technology, 4-Pin M12 Connector - E2B-M18KS08-M1-B1

This is a cylindrical proximity sensor designed for standard industrial environments. With its short body and M18 size, this sensor operates on a DC 3-wire system with a PNP Normally Open (NO) output. It features a nickel-brass housing and shielded design, making it resistant to heat, chemicals, and water. The sensor’s high-frequency oscillations ensure reliable object detection.

Features & Benefits

• Utilises advanced retro-reflective technology with Modulated Scatter Reflective (M.S.R.), ensuring accurate object detection
• Covers a range of 8 mm, allowing precise proximity sensing
• Employs a red LED (660 nm) for reliable performance
• Operate or reset time is a swift 0.5 ms maximum
• Functions reliably between -25°C and 70°C (with no freezing or condensation)

Applications

• Ideal for detecting ferrous metal objects with a minimum diametre of 75 mm
• Used in conveyor systems, packaging lines, and assembly processes

What is the sensing range of the E2B-M18KS08-M1-B1?

The sensing distance is 8 mm.

Can I use it in outdoor environments?

The sensor is designed for indoor use and operates reliably within the specified ambient temperature range.

What type of output does it have?

The E2B-M18KS08-M1-B1 features a PNP NO output.

What is the response time of the sensor?

The operate or reset time is 0.5 ms maximum.

Is it resistant to harsh chemicals?

Yes, the sensor’s nickel-brass housing provides chemical resistance.

Brand	Omron
Thread Size	M18
Sensor Technology	Inductive
Detection Range	8 mm
Body Style	Threaded Barrel
Digital Switching Output Type	PNP
Output Function	NO
Connection Type	M12
Supply Voltage	12 → 24 V dc
IP Rating	IP67
Length	39mm
Mounting Type	Quasi-Flush
Housing Material	Brass
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Reverse Polarity Protection	Yes
Switching Frequency	500 Hz
Series	E2B
Standards Met	CE
Switching Current	200 mA

Proximity sensor, LITE, inductive, nickel-brass, short body, M18, shielded, 8 mm, DC, 3-wire, PNP-NO, M12 plug-in
