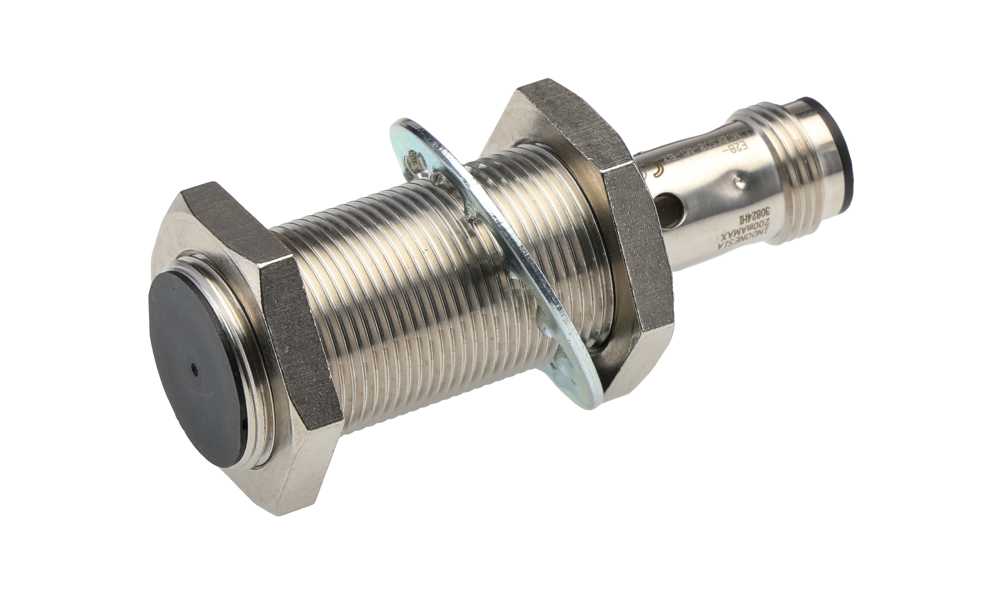

Name: Omron E2B-M18KS08-M1-B2, Inductive Threaded Barrel Proximity Sensor, M18, 8 mm Detection, PNP NC, 12 → 24 V dc
Brand: OMRON
SKU: E2B-M18KS08-M1-B2
Availability: OutOfStock

Omron E2B-M18KS08-M1-B2, Inductive Threaded Barrel Proximity Sensor, M18, 8 mm Detection, PNP NC, 12 → 24 V dc

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron E2B-M18KS08-M1-B2, Inductive Threaded Barrel Proximity Sensor, M18, 8 mm Detection, PNP NC, 12 → 24 V dc

Part Number : E2B-M18KS08-M1-B2

Proximity sensor, LITE, inductive, nickel-brass, short body, M18, shielded, 8 mm, DC, 3-wire, PNP-NC, M12 plug-in

Availability: Sold out

Detailed Description
Specifications
Features

E2B Brass Standard Length

The E2B range of brass standard length cylindrical inductive proximity sensors from Omron are designed to offer reliable performance for use with in standard industrial environments. This range of inductive sensors have an easy-to-read code. They also have a bright circular LED indicator to allow for quick visual recognition of their operating status. These two features reduce the cost and time need to for maintenance.

Features and benefits

IP67 rated for protection in wet environments

360 ° visible LED for operation control

Pre-wired and connector variations available

Vibration shock resistance: IEC 60947-5-2 (10 - 55 Hz)

Standard temperature range –25°C to 70°C

Omron E2B Series Proximity Sensor, 8mm Detection Range, Threaded Barrel Body Style - E2B-M18KS08-M1-B2

This proximity sensor is an inductive device designed for reliable detection in various industrial applications. Featuring a robust threaded barrel design, the sensor has a detection range of 8mm, enhancing its functionality in automation processes. With dimensions that include a length of 59mm and a diameter of 0.85mm, it ensures a compact fit in tight spaces.

Features & Benefits

• Inductive technology allows for non-contact detection
• Threaded barrel design simplifies installation in various locations
• IP67 rating provides water and dust protection
• PNP output enables integration into diverse control systems
• Operational temperature range from -25 °C to +70 °C
• Reverse polarity and short circuit protection enhance durability

Applications

• Utilised in assembly line automation for object detection
• Suitable for packaging machines to sense object presence
• Employed in conveyor systems for automation performance monitoring
• Integrates seamlessly into lift systems for position sensing

What is the significance of the IP67 rating for operational environments?

The IP67 rating ensures the sensor is completely dust-tight and can withstand temporary immersion in water, making it suitable for use in harsh industrial environments.

How does the PNP output function benefit integration with control systems?

Using a PNP output enables the sensor to provide a positive signal, making it compatible with various industrial controllers and facilitating easy integration into existing systems.

What advantages does the quasi-flush mounting offer for installation?

Quasi-flush mounting allows for a streamlined installation while providing effective sensing capabilities, suitable for applications where space is limited.

What safety features are in place to protect against electrical faults?

The sensor includes reverse polarity protection and short circuit overload protection, which safeguard the device and connected systems from potential electrical damage.

Brand	Omron
Thread Size	M18
Sensor Technology	Inductive
Detection Range	8 mm
Body Style	Threaded Barrel
Output Function	NC
Digital Switching Output Type	PNP
Connection Type	M12
Supply Voltage	12 → 24 V dc
IP Rating	IP67
Length	59mm
Mounting Type	Quasi-Flush
Housing Material	Brass, Nickel Plated
Maximum DC Voltage	30V
Diameter	0.9 mm
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+70°C
Short Circuit Overload Protection	Yes
Switching Frequency	500 Hz
Switching Current	200 mA

Proximity sensor, LITE, inductive, nickel-brass, short body, M18, shielded, 8 mm, DC, 3-wire, PNP-NC, M12 plug-in

Omron E2B-M18KS08-M1-B2, Inductive Threaded Barrel Proximity Sensor, M18, 8 mm Detection, PNP NC, 12 → 24 V dc
