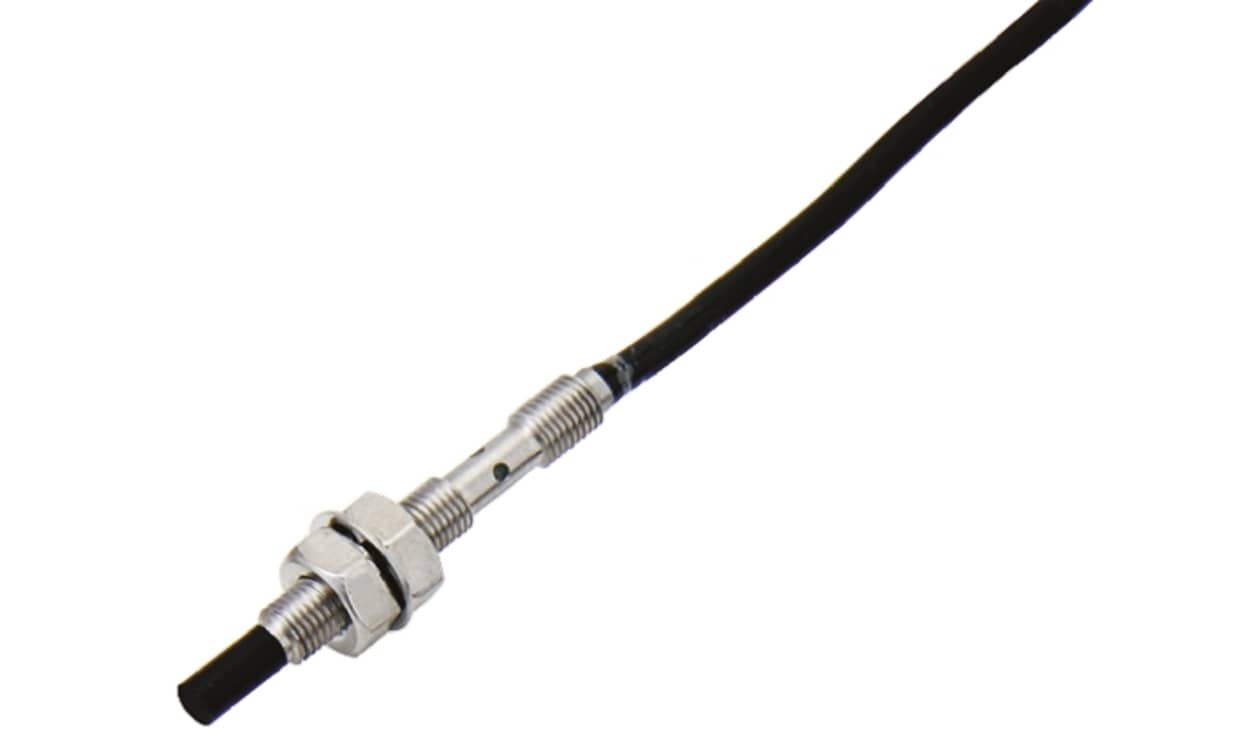

Omron E2E-C06S02-WC-C1 2M, Inductive Smooth Barrel Proximity Sensor, 2 mm Detection, NPN NO, 10 → 30 V dc
- Detailed Description
- Specifications
- Downloads
E2E Small Diameter Proximity Sensors
Load short-circuit protection
Output reverse polarity protection
Easy installation
LED indication
| Brand | Omron |
| Sensor Technology | Inductive |
| Body Style | Smooth Barrel |
| Detection Range | 2 mm |
| Output Function | NO |
| Digital Switching Output Type | NPN |
| Connection Type | Pre-Cabled |
| Cable Length | 2m |
| Supply Voltage | 10 → 30 V dc |
| Length | 36mm |
| IP Rating | IP67 |
| Mounting Type | Non-Flush |
| Housing Material | Stainless Steel |
| Maximum DC Voltage | 30V |
| Diameter | 6.5 mm |
| Minimum Operating Temperature | -25°C |
| Shielding | Unshielded |
| Maximum Switching Frequency | 3kHz |
| Switching Current | 200 mA |
| Reverse Polarity Protection | Yes |
