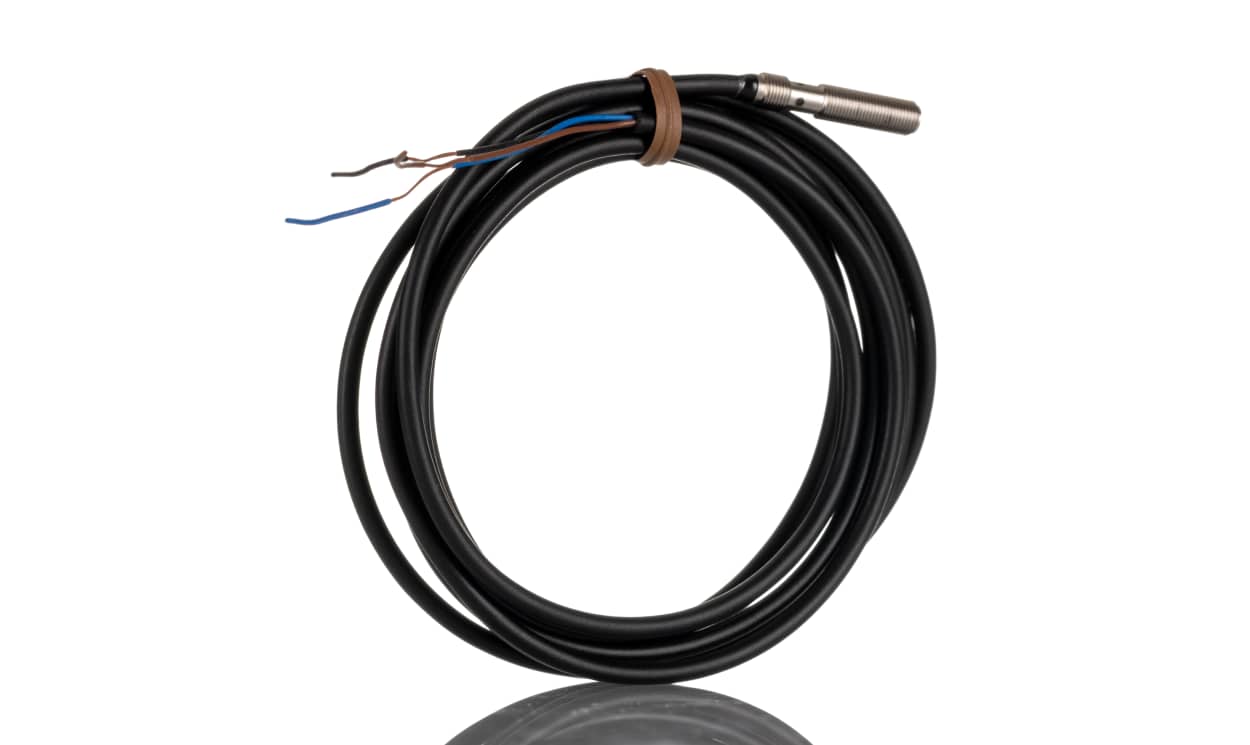

Name: Omron E2E-S05S12-WC-B1 2M, Inductive Threaded Barrel Proximity Sensor, M5, 1.2 mm Detection, PNP NO, 10 → 30 V dc
Brand: OMRON
SKU: E2E-S05S12-WC-B1 2M
Availability: OutOfStock

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron E2E-S05S12-WC-B1 2M, Inductive Threaded Barrel Proximity Sensor, M5, 1.2 mm Detection, PNP NO, 10 → 30 V dc

Part Number : E2E-S05S12-WC-B1 2M

Availability: Sold out

Detailed Description
Specifications

E2E Small Diameter Proximity Sensors

The E2E inductive proximity sensors are extremely small in diameter with 3mm, 4mm, 6.5 mm, M4 and M5 versions available. The stable long sensing distance of these sensors enables high performance for detection of ferrous metal even when the work flow is unsteady. The E2E series of proximity sensors have 4 indicator lamps on them in a 360 ° layout making it extremely easy to check the operation status.

High speed response enables sharp detection timing, 5 kHz max
Load short-circuit protection
Output reverse polarity protection
Easy installation
LED indication

OMRON Proximity Sensor, 4kHz Response Frequency, 10mA Maximum Current Consumption - E2E Series - E2E-S05S12-WC-B1 2M

For spot-on control of automated machinery, try this proximity sensor from OMRON. Its response frequency of 4kHz makes it fast-acting with reliable repeat accuracy, so it's ideal for positioning the grabbing arms of industrial robots. It's an inductive type device that quickly picks up on the presence of ferrous metal without making physical contact, which minimises the risk of delicate components breaking. Short-circuit protection cuts down on the chance of damage caused by power faults. A low maximum current consumption of 10mA makes it an energy-efficient choice. As this sensor resists vibration and shock, you can rely on its superior performance in demanding industrial settings.

Features & Benefits

• Supplied pre-wired for convenient installation
• Insulated to reduce the risk of electric shocks
• Wear-resistant PVC cable sheath for longevity in harsh operating conditions
• Miniature M5 sensing head size for mounting in confined spaces

Applications

• Food and beverage industries
• Dairies
• Packaging facilities
• Distribution centres

Does this proximity sensor include reverse-polarity protection?

Yes, the device is protected against reverse polarity, which minimises the risk of circuit damage as a result of wiring errors.

Brand	Omron
Thread Size	M5
Sensor Technology	Inductive
Detection Range	1.2 mm
Body Style	Threaded Barrel
Output Function	NO
Digital Switching Output Type	PNP
Connection Type	Pre-Cabled
Cable Length	2m
Supply Voltage	10 → 30 V dc
IP Rating	IP67
Length	25.1mm
Mounting Type	Flush
Housing Material	Stainless Steel
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Short Circuit Overload Protection	Yes
Standards Met	CE
Switching Frequency	4 kHz
Reverse Polarity Protection	Yes

Omron E2E-S05S12-WC-B1 2M, Inductive Threaded Barrel Proximity Sensor, M5, 1.2 mm Detection, PNP NO, 10 → 30 V dc
