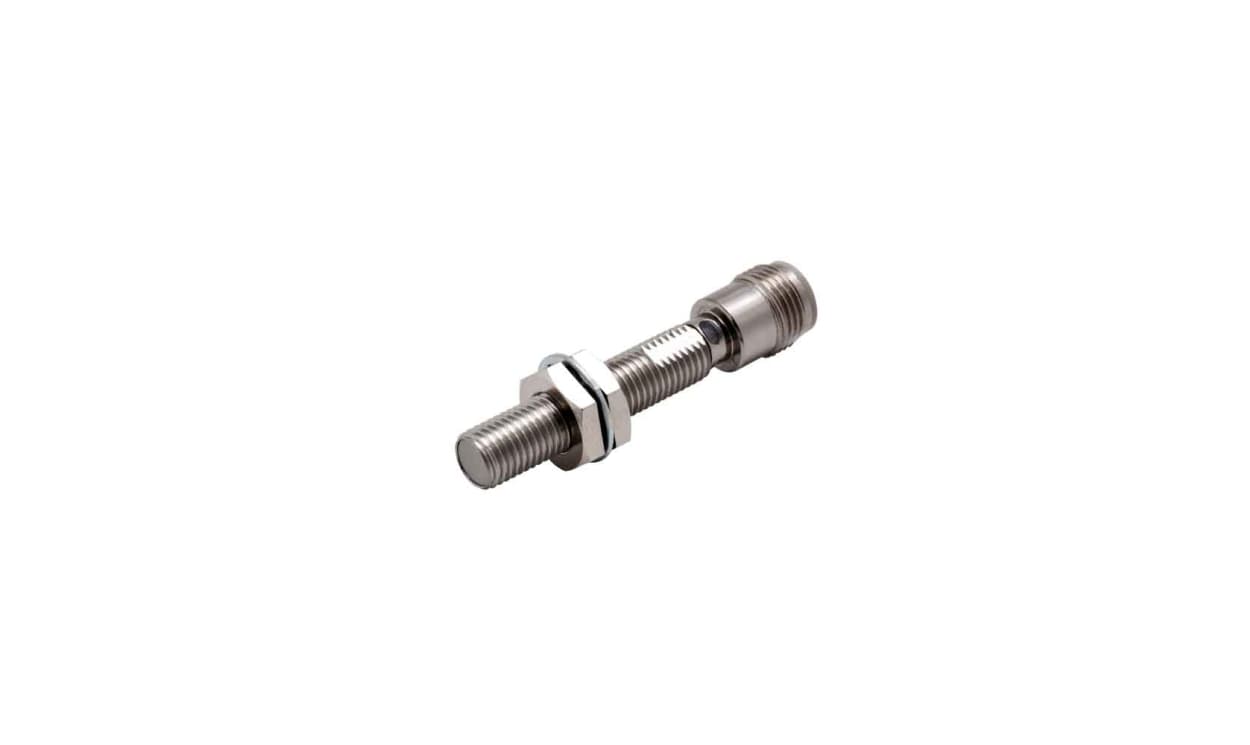

Omron E2E-X2B1TL8-M1, Inductive Threaded Barrel Proximity Sensor, M8, 2 mm Detection, PNP NO, 10 → 30 V dc
- Detailed Description
- Specifications
- Downloads
The world's longest sensing distance
With high-brightness LED, the indicator is visible anywhere from 360°.
Only 10 Seconds to Replace a Proximity Sensor with the "e-jig" (Mounting Sleeve).
Cables with enhanced oil resistance enabled 2-year oil resistance
Comes in a wide variation to make sensor selection easy
| Brand | Omron |
| Thread Size | M8 |
| Sensor Technology | Inductive |
| Detection Range | 2 mm |
| Body Style | Threaded Barrel |
| Output Function | NO |
| Digital Switching Output Type | PNP |
| Connection Type | M12 |
| Supply Voltage | 10 → 30 V dc |
| Length | 47.8mm |
| IP Rating | IP67, IP67G, IP69K |
| Mounting Type | Flush |
| Width | 8mm |
| Housing Material | Brass |
| Maximum DC Voltage | 30V |
| Minimum Operating Temperature | -25°C |
| Reverse Polarity Protection | Yes |
| Maximum Switching Frequency | 1.5kHz |
| Maximum Operating Temperature | +70°C |
| Switching Frequency | 1.5 kHz |
