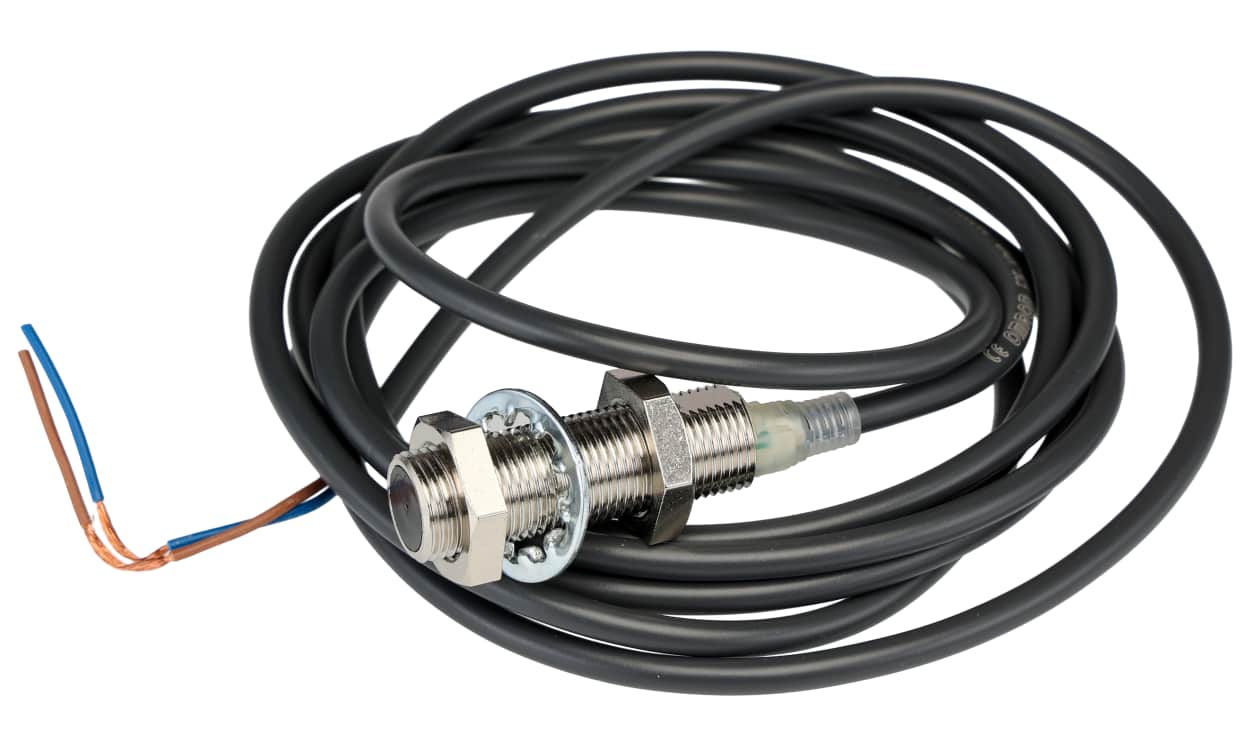

Omron E2E-X2Y2 2M, Inductive Threaded Barrel Proximity Sensor, M12, 2 mm Detection, 2-Wire NC, 24 → 240 V ac

Part Number : E2E-X2Y2 2M

Availability: Sold out

Detailed Description
Specifications

Omron E2E Series Proximity Sensor, 2mm Detection Range, 2-Wire Output Function - E2E-X2Y2 2M

This proximity sensor is an inductive type designed for robust applications, particularly in automation and electronic systems. Featuring a compact M12 threaded design, it has a detection range of 2mm and operates effectively within a supply voltage of 24 to 240 V AC. The sensor’s brass housing ensures durability, enhanced by its IP67 rating for protection against dust and water ingress.

Features & Benefits

• Operates within a voltage range of 24 to 240 V AC for versatility
• M12 threaded configuration allows for easy and secure installation
• 2-wire output facilitates straightforward connectivity and reduced wiring
• Inductive technology offers non-contact sensing for enhanced safety
• Capable of switching frequencies up to 25Hz, accommodating various usage

Applications

• Utilised in packaging machinery to detect product presence
• Ideal for conveyor systems to ensure material flow continuity
• Applicable in assembly lines for non-contact object detection
• Used for position sensing in automated machinery

How does the sensing distance vary with different materials?

The sensing distance is influenced by the type of material detected, specifically when using ferrous versus non-ferrous metals. For optimal performance, a consistent standard sensing object such as iron is recommended.

What protective features does this sensor offer in challenging environments?

It features an IP67 rating, providing robust protection against water and dust, thereby extending its operational lifespan even in rugged settings.

Can this sensor be Effective in combined systems with other devices?

Yes, it can interface seamlessly with other components in a network, making it suitable for integrated automation systems, provided the conditions of operation are adhered to according to specifications.

Brand	Omron
Thread Size	M12
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	2 mm
Digital Switching Output Type	2-Wire
Output Function	NC
Cable Length	2m
Connection Type	Pre-Cabled
Supply Voltage	24 → 240 V ac
Length	43mm
IP Rating	IP67
Mounting Type	Flush
Minimum Operating Temperature	-40°C
Switching Current	200 mA
Series	E2E
Switching Frequency	25 Hz
Shielding	Shielded
Maximum Operating Temperature	+85°C
Maximum Switching Frequency	25Hz
