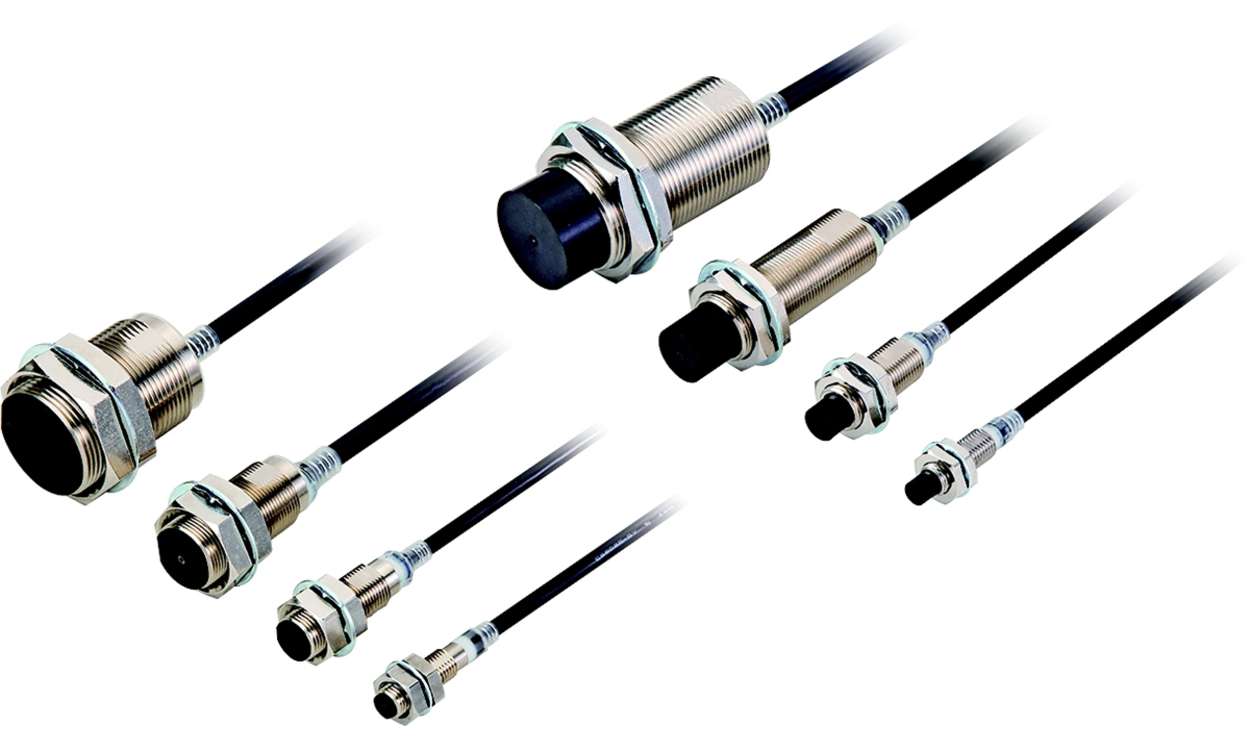

Name: Omron E2EQ-X7D112-M1TGJ-T 0.3M, Inductive Threaded Barrel Proximity Sensor, M12, 7 mm Detection, 2-Wire NO, 10 → 30 V dc
Brand: OMRON
SKU: E2EQ-X7D112-M1TGJ-T 0.3M
Availability: OutOfStock

Omron E2EQ-X7D112-M1TGJ-T 0.3M, Inductive Threaded Barrel Proximity Sensor, M12, 7 mm Detection, 2-Wire NO, 10 → 30 V dc

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron E2EQ-X7D112-M1TGJ-T 0.3M, Inductive Threaded Barrel Proximity Sensor, M12, 7 mm Detection, 2-Wire NO, 10 → 30 V dc

Part Number : E2EQ-X7D112-M1TGJ-T 0.3M

Availability: Sold out

Detailed Description
Specifications
Downloads

Proximity sensors with longer sensing distance require increased sensitivity. However, with the increased sensitivity, temperature changes will have bigger influence in sensing distance. E2E NEXT Proximity Sensors use "Thermal Distance Control": long-distance and stable detection technology, newly developed by OMRON."Thermal Distance Control" with "PROX2" write temperature correction values externally when shipped and minimize the sensing distance changes due to temperature changes, which could not be done by the conventional analog IC.

With high-brightness LED the indicator is visible anywhere from 360°.
Only 10 Seconds to Replace a Proximity Sensor with the ″e-jig″ (Mounting Sleeve).
Cables with enhanced oil resistance enabled 2-year oil resistance

Brand	Omron
Thread Size	M12
Sensor Technology	Inductive
Detection Range	7 mm
Body Style	Threaded Barrel
Digital Switching Output Type	2-Wire
Output Function	NO
Connection Type	M12
Supply Voltage	10 → 30 V dc
IP Rating	IP67
Length	47.1mm
Mounting Type	Flush
Width	21mm
Housing Material	Brass
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Switching Frequency	250 Hz
Switching Current	100 mA
Series	E2E-NEXT
Standards Met	CE Certificate, CSA C22.2 No.14-13, UL 508, UL Certified

Omron E2EQ-X7D112-M1TGJ-T 0.3M, Inductive Threaded Barrel Proximity Sensor, M12, 7 mm Detection, 2-Wire NO, 10 → 30 V dc

DOWNLOAD CATALOG

E2EQ-X7D112-M1TGJ-T 0

Omron E2EQ-X7D112-M1TGJ-T 0.3M, Inductive Threaded Barrel Proximity Sensor, M12, 7 mm Detection, 2-Wire NO, 10 → 30 V dc
