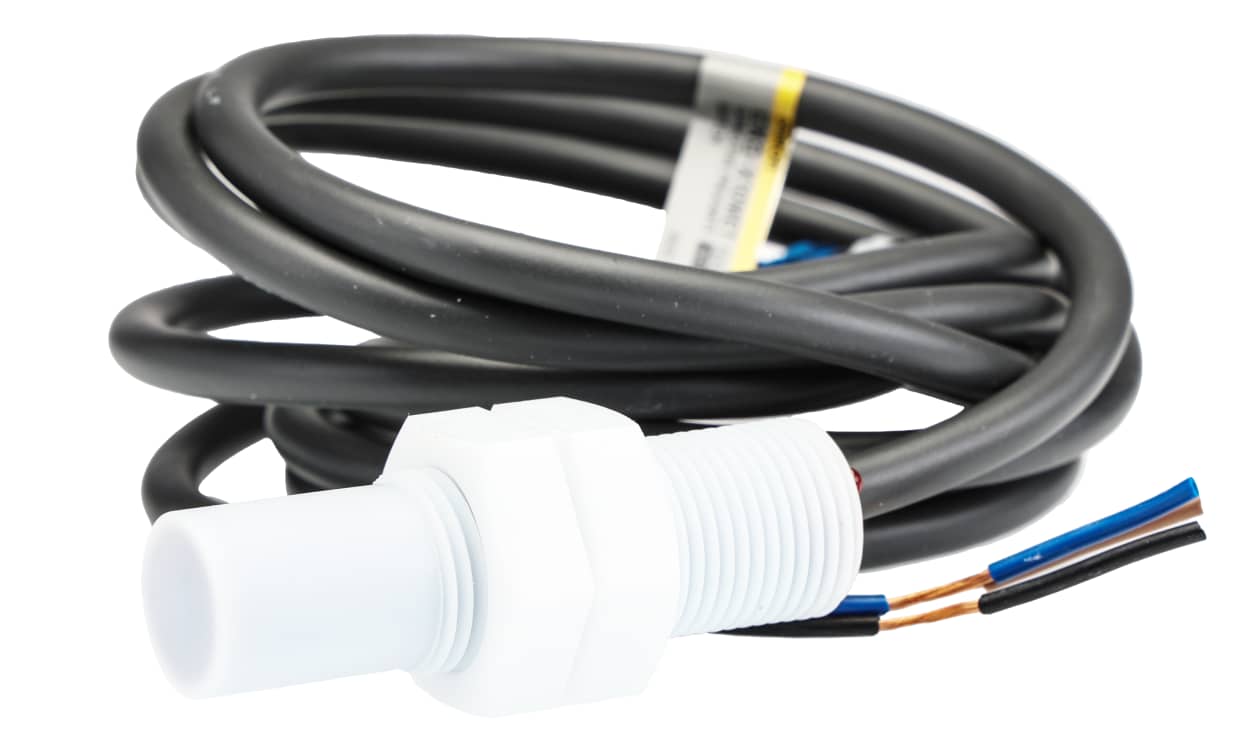

Omron E2KQ-X10ME1 2M, Capacitive Threaded Barrel Proximity Sensor, M18, 10 mm Detection, NPN NO, 10 → 30 V dc

Name: Omron E2KQ-X10ME1 2M, Capacitive Threaded Barrel Proximity Sensor, M18, 10 mm Detection, NPN NO, 10 → 30 V dc
Brand: OMRON
SKU: E2KQ-X10ME1 2M
Availability: OutOfStock

Part Number : E2KQ-X10ME1 2M

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron E2KQ-X Series Proximity Sensor, 10mm Detection Range, 2m Cable Length - E2KQ-X10ME1

This proximity sensor is designed for a variety of industrial applications, offering reliable detection capabilities in a compact threaded barrel design. Featuring a detection range of 10mm, this capacitive sensor is optimised for use in environments where precision is essential. It is equipped with a 2m pre-cabled connection and is particularly suited for installation in tight spaces due to its streamlined dimensions.

Features & Benefits

• Capacitive design enhances sensitivity to non-metallic objects
• Non-flush installation allows for flexibility in mounting
• NPN output provides versatile integration into control systems
• Operating voltage range of 10 to 30 V DC accommodates various systems

Applications

• Ideal for automation systems requiring accurate object detection
• Utilised in electronic equipment for object placement detection
• Can be used in mechanical systems for position monitoring
• Suitable for equipment subjected to varying environmental conditions

What is the significance of the IP66 rating for this sensor?

The IP66 rating indicates that it is completely dust-tight and can withstand powerful water jets, ensuring dependable performance in various environments, including those exposed to moisture and contaminants.

How does the NPN output facilitate integration into existing systems?

The NPN output allows for easy compatibility with most control systems, enabling the sensor to effectively trigger devices or alarms in response to object detection.

What are the implications of the operating temperature range for this sensor?

With a minimum operating temperature of -10°C and a maximum of +55°C, it can function effectively in a wide range of ambient temperatures, making it suitable for diverse industrial applications.

Can this sensor be used in harsh chemical environments?

Yes, the fluorine resin housing provides excellent protection against chemicals, enabling it to perform reliably in settings where exposure to harsh substances is common.

Omron

Brand	Omron
Thread Size	M18
Sensor Technology	Capacitive
Body Style	Threaded Barrel
Detection Range	10 mm
Digital Switching Output Type	NPN
Output Function	NO
Connection Type	Pre-Cabled
Cable Length	2m
Supply Voltage	10 → 30 V dc
Length	61.8mm
IP Rating	IP66
Mounting Type	Non-Flush
Width	16mm
Housing Material	Fluorine Resin
Maximum DC Voltage	30V
Minimum Operating Temperature	-10°C
Shielding	Unshielded
Maximum Switching Frequency	35Hz
Maximum Operating Temperature	+55°C
