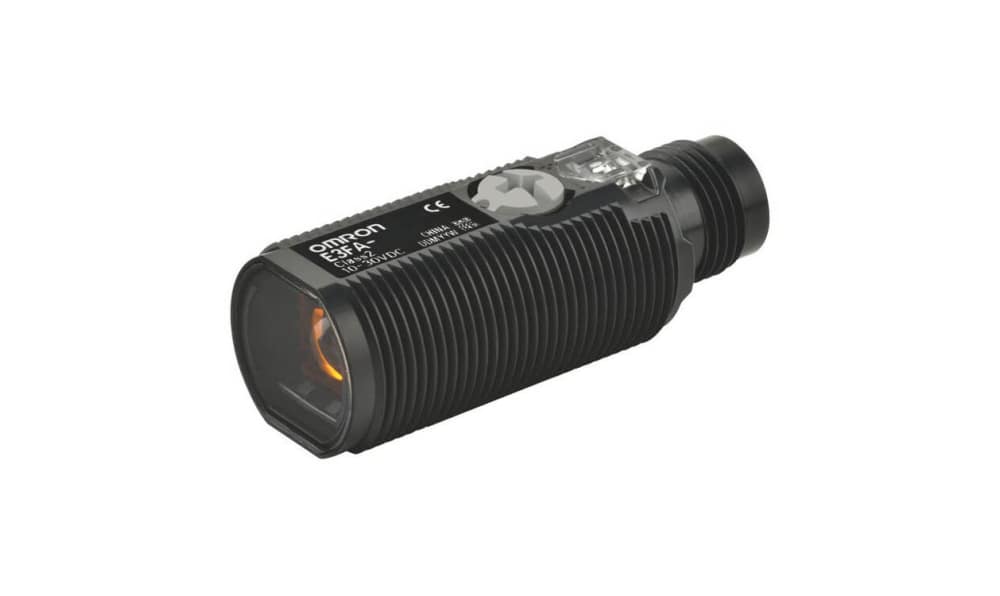

Omron E3FA-RP22, Retroreflective Photoelectric Sensor, Barrel Sensor, 0 → 500 mm Detection Range

Name: Omron E3FA-RP22, Retroreflective Photoelectric Sensor, Barrel Sensor, 0 → 500 mm Detection Range
Brand: OMRON
SKU: E3FA-RP22
Availability: OutOfStock

Part Number : E3FA-RP22

Photoelectric sensor, M18 axial, plastic body, red LED, coaxial retro-reflective, 0-500m, PNP, L-ON/D-ON selectable, M12 connector

Availability: Sold out

Detailed Description
Specifications
Features
Downloads

E3FA Compact Photoelectric Sensors

The E3FA range of compact photoelectric sensors from Omron are simple and quick to mount and easy to set up due to the large adjuster and high power LED indicator making alignment easier. The status LED indicators of these photoelectric sensors can also be seen easily, from long distances and wide angles. The E3FA series sensors are typically installed in industrial plants such as food and beverage, textiles, food and logistics and are also designed especially for non stop detection for areas where machines never stop.

Cylindrical straight type
Compact design
Plastic housing
Visible LED light for easy alignment
LED indication
Light-ON/Dark-ON selectable by wiring
Reversed power supply polarity protection, output short circuit protection and reversed output polarity protection

Omron E3F Series Photoelectric Sensor, 500mm Detection Range, Retroreflective Detection Type - E3FARP22

This photoelectric sensor falls under the retroreflective category, designed for precision detection applications. Operating within a versatile detection range of 0 to 500mm, this device is perfect for proximity sensing in various industrial environments. The sensor features a robust M18 housing size, ensuring easy integration into existing systems while meeting the demands of automation in electronics, electrical, and mechanical industries.

Features & Benefits

• Features PNP output for easy integration with automation equipment
• Durable ABS housing ensures long-lasting performance
• Waterproof design with IP67 and IP69K ratings prevents moisture damage
• Fast response time of 500μs improves detection efficiency
• Operates effectively across a wide temperature range from -25 °C to +55 °C
• Light/dark switching mode enhances flexibility for various applications

Applications

• Used with packaging machinery for accurate detection
• Ideal for automation in conveyor systems
• Employed in robotic for precise positioning
• Suitable for safety systems in industrial environments
• Utilised in material handling to detect object presence

What are the voltage and current specifications for optimal operation?

The sensor operates with a maximum DC voltage of 30V and supports a maximum current of 25mA, making it suitable for a wide range of applications while ensuring efficiency.

How does the waterproof rating benefit the sensor in industrial conditions?

The IP67 and IP69K ratings provide protection against moisture and dust, allowing it to function reliably in harsh environments and ensuring longevity and performance under challenging conditions.

What type of connectors are compatible with this sensor?

The electrical connection uses a standard M12 4 Pin Connector, providing ease of integration with various industrial systems and simplifying maintenance.

What materials does the housing of this sensor feature?

It is constructed from ABS, ensuring durability against impact and environmental conditions while maintaining a lightweight profile suitable for various applications.

E3F2 Series Barrel

Output can be configured by wiring either ’light ON’ or ’dark ON’
Built in amplifier
Short circuit and reverse polarity protection
M18 DIN size cylindrical housing

Brand	Omron
Sensor Style	Barrel
Detection Type	Retroreflective
Detection Range	0 → 500 mm
Output Type	PNP
Electrical Connection	M12 4 Pin Connector
Switching Mode	Light / Dark switching
Maximum DC Voltage	30V
Light Source	Red LED
IP Rating	IP67, IP69K
Maximum Current	25 mA
Response Time	500 μs
Housing Material	ABS
Series	E3F
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+55°C
Thread Size	M18

Photoelectric sensor, M18 axial, plastic body, red LED, coaxial retro-reflective, 0-500m, PNP, L-ON/D-ON selectable, M12 connector

Omron E3FA-RP22, Retroreflective Photoelectric Sensor, Barrel Sensor, 0 → 500 mm Detection Range

DOWNLOAD CATALOG

E3FA-RP22 Brochure - E3FA Photoelectric Sensors A700000013143104

E3FA-RP22 Instruction Sheet - E3FA Series A700000013143120
