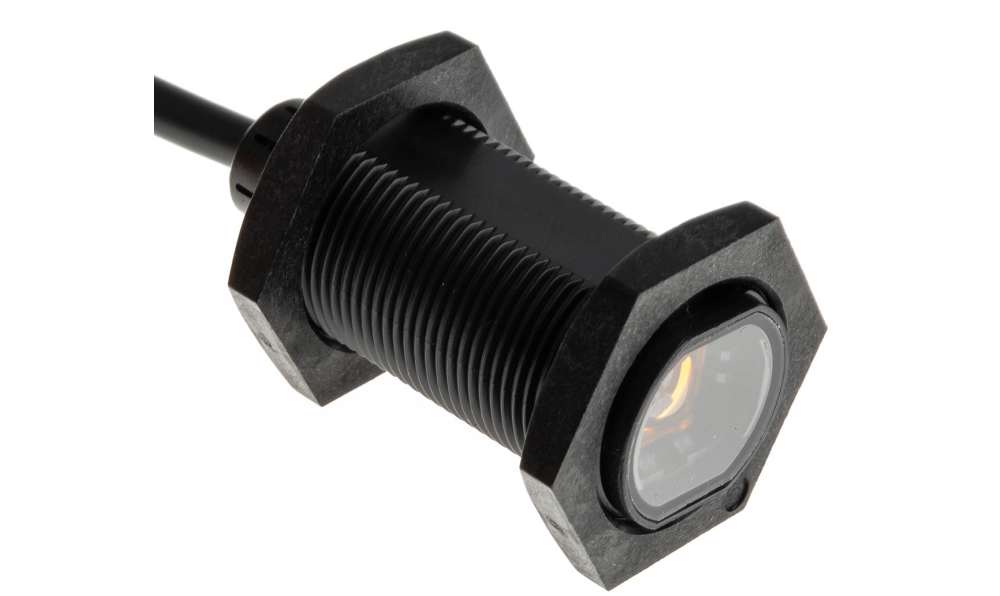

OMRON E3FA-TP11 2M | Through-Beam Photoelectric Sensor | 20 m, PNP, 2 m 4-Wire Cable
OMRON E3FA-TP11 2M: an M18 axial barrel-style through-beam photoelectric sensor covering 20 m, switching via PNP output. Electrical connection is by a 2 m 4-wire cable and the housing is ABS. Within OMRON's range, the E3FA-TP11 2M is listed under the E3F series.
- Light source: LED
- Maximum voltage: 30 V DC
- Current rating up to 40 mA
- Response time: 500 μs
- Protection rating: IP67 and IP69K
- Operating temperature: -25°C to +55°C
- Detailed Description
- Specifications
- Features
- Downloads
Omron E3F Series Photoelectric Sensor, 20m Detection Range, PNP Output - E3FATP112M
Features & Benefits
• High EMC protection minimises interference in operations
• LED light source ensures effective detection even in darkness
• PNP output type allows for versatile integration with systems
• Excellent response time of 500μs for fast operation
• Rugged ABS housing withstands harsh environmental conditions
Applications
• Utilised in textile and ceramics manufacturing processes
• Appropriate for logistics operations involving packaging and sorting
• Efficient in material handling within warehouse settings
• Effective in detecting presence in bulk material systems
What is the maximum operating temperature for this model?
How does the degree of protection impact the sensor's usage?
What type of wiring connection does this sensor use?
Can it be used with different sensing methods?
Built in amplifier
Short circuit and reverse polarity protection
M18 DIN size cylindrical housing
| Brand | Omron |
| Series | E3F |
| Detection Type | Through Beam |
| Detection Range | 20 m (65.6 ft) |
| Sensor Style | Barrel |
| Output Type | PNP |
| Electrical Connection | 4 Wire Cable 2 m |
| Light Source | LED |
| Response Time | 500 μs |
| Maximum DC Voltage | 30V |
| IP Rating | IP67, IP69K |
| Maximum Current | 40 mA |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Housing Material | ABS |
| Maximum Operating Temperature | +55 °C (131 °F) |
Photoelectric sensor, M18 axial, plastic, red LED, through-beam, 20m, PNP, L-ON/D-ON selectable, 2m PVC cable
