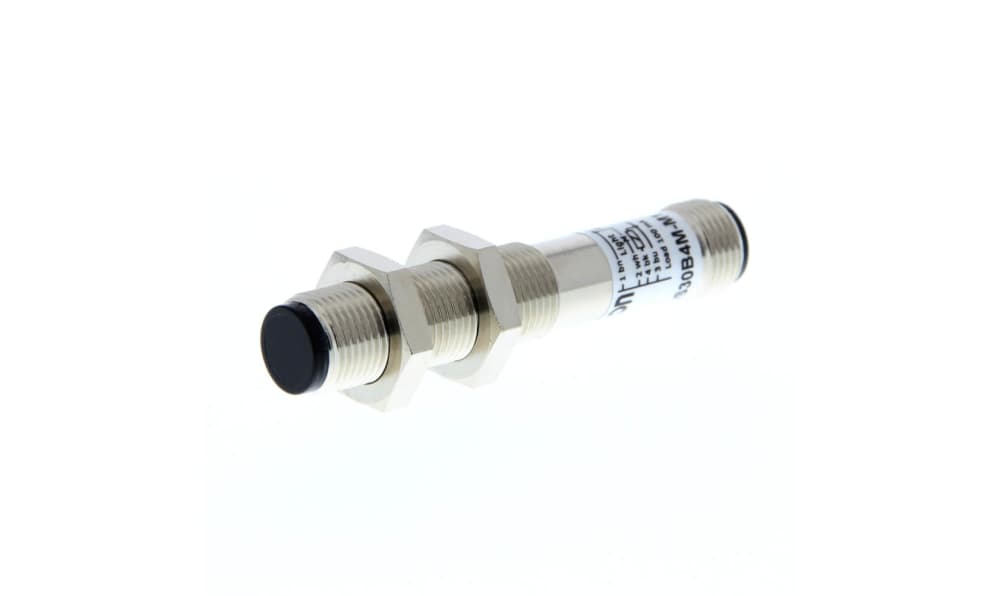

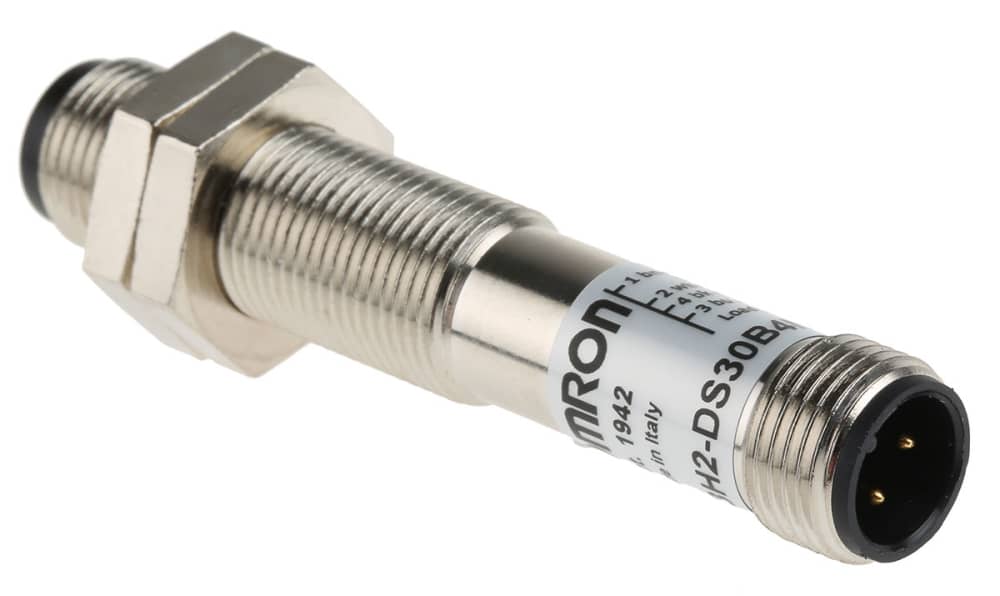

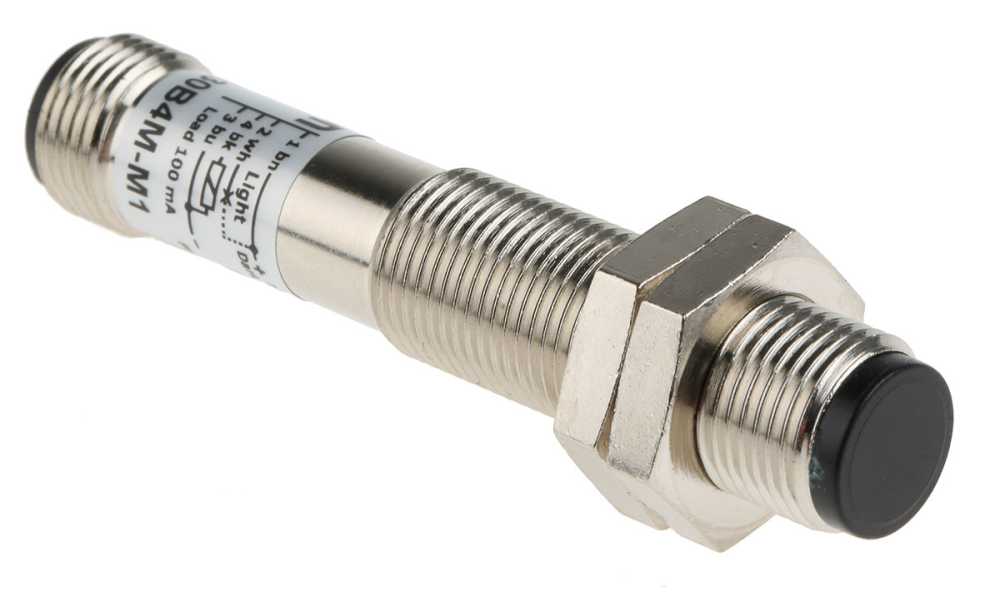

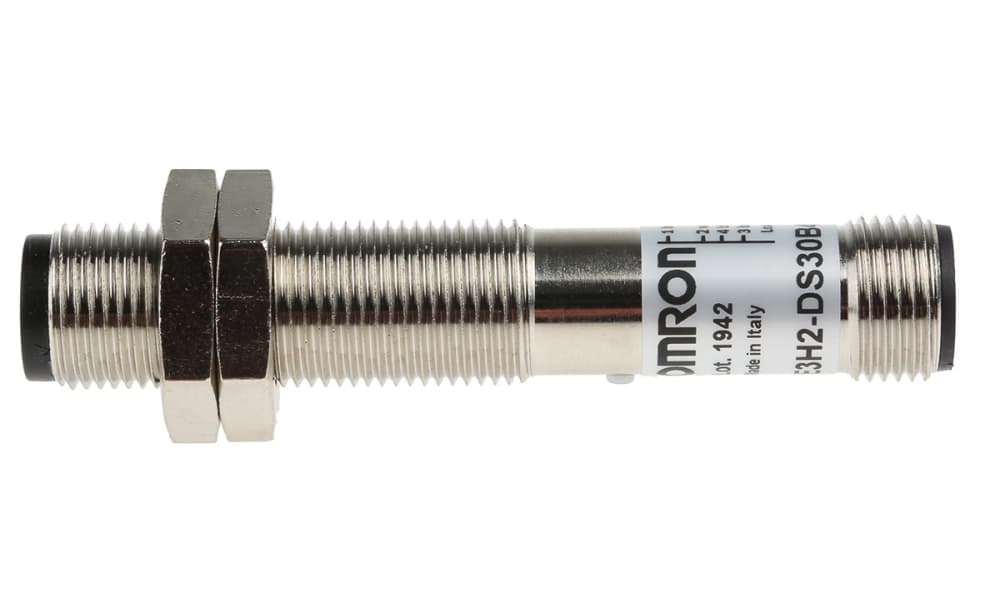

Name: Omron E3H2-DS30B4M-M1, Diffuse Photoelectric Sensor, Barrel Sensor, 300 mm Detection Range
Brand: OMRON
SKU: E3H2-DS30B4M-M1
Availability: OutOfStock

Omron E3H2-DS30B4M-M1, Diffuse Photoelectric Sensor, Barrel Sensor, 300 mm Detection Range

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron E3H2-DS30B4M-M1, Diffuse Photoelectric Sensor, Barrel Sensor, 300 mm Detection Range

Part Number : E3H2-DS30B4M-M1

Availability: Sold out

Detailed Description
Specifications

Omron E3H2 Series Photoelectric Sensor, 300mm Detection Range, IP67 - E3H2-DS30B4M-M1

This photoelectric sensor is engineered to improve automation processes by accurately detecting objects. It employs infrared sensor technology to identify items at various distances, making it essential in industrial environments where precision is critical.

Features & Benefits

• Compact barrel style sensor suitable for confined spaces
• IP67 rating for enhanced dust and moisture protection
• PNP output for compatibility with multiple control systems
• Rapid response time of 1.1ms for efficient detection
• Operates effectively across a broad temperature range
• Easy installation with M12 connector

Applications

• Utilised in automated assembly lines for object detection
• Ideal for packaging machinery to monitor product flow
• Appropriate for conveyor systems needing precise object positioning
• Employed in material handling equipment to improve operational efficiency
• Suitable for robotics applications requiring consistent detection feedback

How to adjust the sensitivity for my application?

Sensitivity can be modified using the built-in potentiometer to optimise detection for your specific needs.

Is it compatible with both digital and analogue systems?

Yes, the sensor is designed for integration with both digital and analogue control systems, allowing versatile usage.

What is the maximum voltage allowed during operation?

The sensor can safely function up to a maximum voltage of 30V DC for optimal performance.

Can it be used outdoors in various weather conditions?

It is advisable to avoid outdoor use in direct sunlight or extreme weather, as such conditions may impact performance.

How to clean the sensor without damaging it?

Cleaning should be performed gently with a soft cloth, avoiding solvents that could degrade the sensor's protective features.

E3F2 Series Barrel

Output can be configured by wiring either ’light ON’ or ’dark ON’
Built in amplifier
Short circuit and reverse polarity protection
M18 DIN size cylindrical housing

Brand	Omron
Sensor Style	Barrel
Detection Type	Diffuse
Detection Range	300 mm
Output Type	PNP
Electrical Connection	M12 Connector
Maximum DC Voltage	30V
Light Source	Infrared
IP Rating	IP67
Maximum Current	100 mA
Response Time	1.1 ms
Housing Material	Nickel Plated Brass
Minimum Operating Temperature	-25°C
Series	E3H2
Maximum Operating Temperature	+55°C
