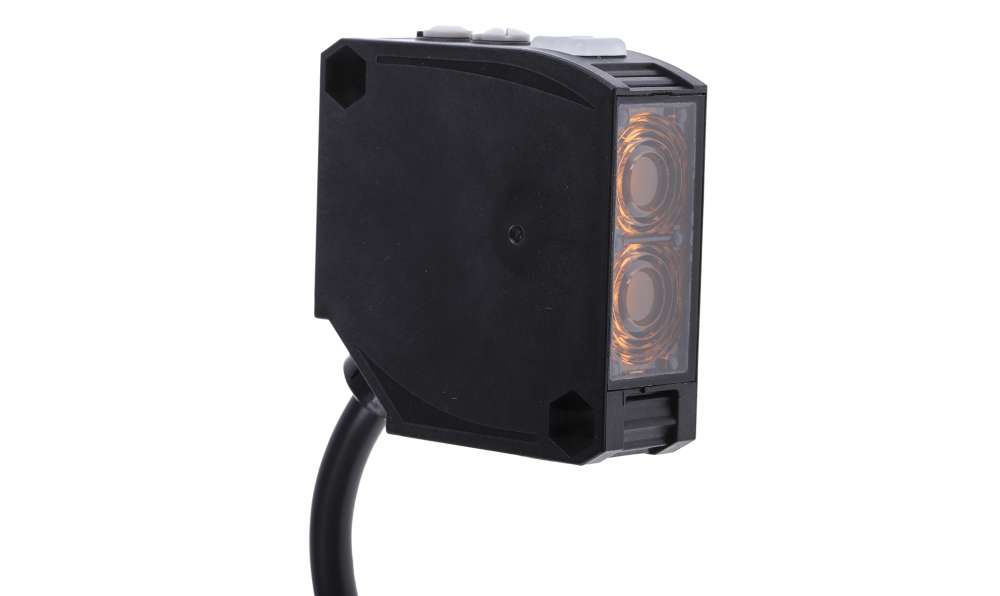

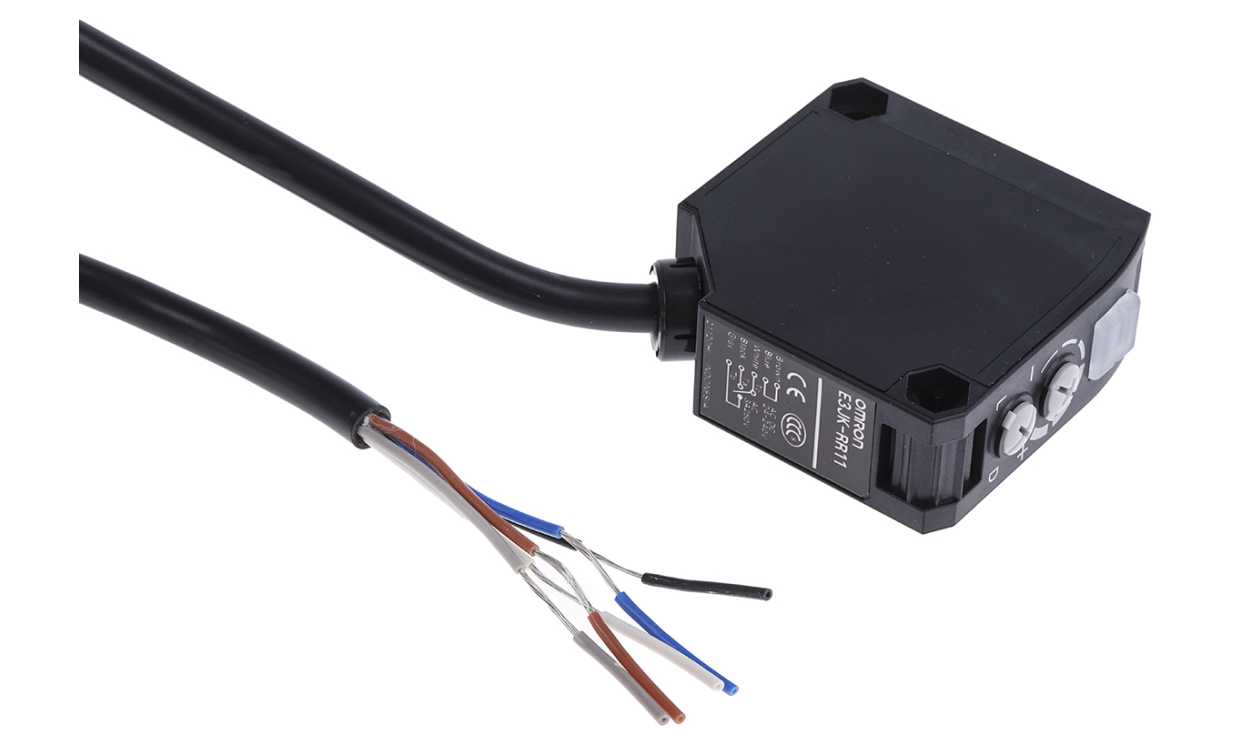

OMRON E3JK-RR11 2M | Retroreflective Photoelectric Sensor | 7 m, Relay Output, 2 m 5-Wire Cable
OMRON E3JK-RR11 2M: a square-bodied retroreflective photoelectric sensor covering 7 m, switching via relay output. Electrical connection is by a 2 m 5-wire cable and the housing is ABS. Within OMRON's range, the E3JK-RR11 2M is listed under the E3JK series.
- Light source: polarity-free red light (non-polarised)
- Maximum voltage: 240 V AC/DC
- Response time: 20 ms
- Protection rating: IP64
- Operating temperature: -25°C to +55°C
- Light-on/dark-on switching
- Detailed Description
- Specifications
- Features
- Downloads
Omron Photoelectric Sensor, 2m Cable Length, Relay Output - E3JK-RR11 2M
Features & Benefits
• 5-wire configuration enables flexible installation options
• Relay output improves system integration capabilities
• Fast response time of 20ms enhances operational efficiency
• Polarity-free red light source for enhanced visibility
Applications
• Used for workpiece detection in woodworking machines
• Applicable in pallet detection for agricultural conveyors
• Suitable for identifying packages protruding from storage
Can it work in varying temperature conditions?
Will it perform well in humid environments?
Can this sensor be used outdoors?
Is the light source safe for the eyes?
| Brand | Omron |
| Series | E3JK |
| Detection Type | Retroreflective |
| Detection Range | 7 m, 100 mm |
| Sensor Style | Block |
| Output Type | Relay |
| Electrical Connection | 5 Wire Cable 2 m |
| Switching Mode | Light / Dark switching |
| Light Source | Polarity Free Red Light |
| Response Time | 20 ms |
| Maximum DC Voltage | 240V |
| IP Rating | IP64 |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Housing Material | ABS |
| Maximum Operating Temperature | +55 °C (131 °F) |
| Terminal Type | Wire Lead |
| Standards Met | CCC, CE |
| Maximum AC Voltage | 240V |
Photoelectric sensor, square body, red LED, retro-reflective, non-polarized, 7m, AC/DC, relay, L-ON/D-ON selectable, 2m cable
