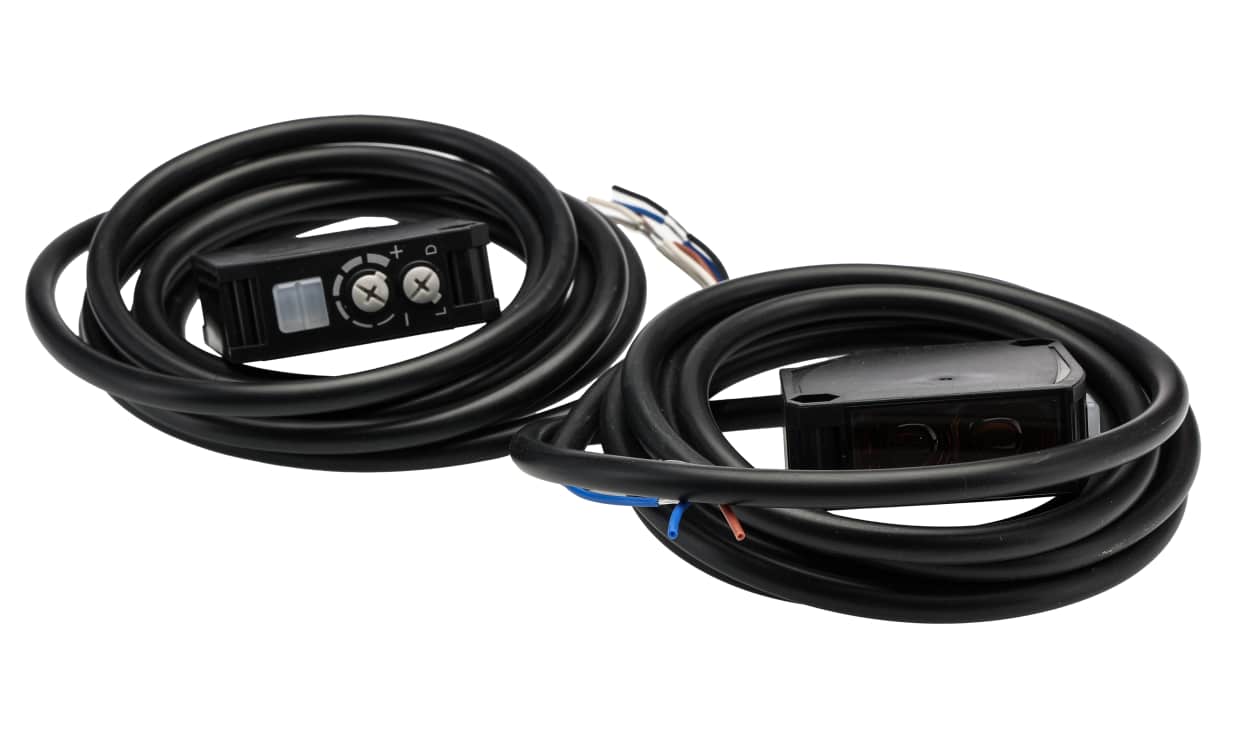

Omron E3JK-TR11 2M, Through Beam Photoelectric Sensor, Block Sensor, 40 m Detection Range

Name: Omron E3JK-TR11 2M, Through Beam Photoelectric Sensor, Block Sensor, 40 m Detection Range
Brand: OMRON
SKU: E3JK-TR11 2M
Availability: OutOfStock

Part Number : E3JK-TR11 2M

Photoelectric sensor, square body, red LED, through-beam, 40m, AC/DC, relay, L-ON/D-ON selectable, 2m cable

Availability: Sold out

Detailed Description
Specifications
Features
Downloads

Omron E3JK Series Photoelectric Sensor, 40m Detection Range, Through Beam Detection Type - E3JK-TR11 2M

This photoelectric sensor provides a reliable solution for a variety of industrial applications. With a robust block style design, the sensor is suited for long-range detection capabilities of up to 40m. Its built-in LED sensor technology ensures visibility even in challenging conditions. The electrical connection features a 5 wire configuration with a standard length of 2m. Rated at IP64, it offers durability in various environments, making it ideal for automation and mechanical tasks.

Features & Benefits

• Long sensing distance, approximately eight times that of conventional models
• Light/dark switching enhances versatility for different requirements
• Enhanced visibility through a red LED light source
• Fast response time of 20ms ensures quick operations
• Relay output sensor supports easy integration with existing systems

Applications

• Ideal for lift shaft detection to ensure safety
• Used for pallet detection on agricultural produce conveyors
• Effective in workpiece detection for woodworking machines
• Assists in identifying packages protruding from storage locations

What operating temperature ranges can this sensor withstand?

It functions effectively in ambient temperatures from -25°C to +55°C, ensuring reliability in diverse environments for automation tasks.

How does the sensor's design enhance its usability during installation?

The enlarged sensitivity adjuster and operation selector facilitate easy adjustments, allowing users to fine-tune settings for optimal performance quickly.

Can the sensor be used in outdoor environments?

This sensor is not designed for outdoor use or environments exposed to rain or direct sunlight, ensuring it operates reliably in controlled settings.

What is the maximum voltage the sensor can handle?

The photoelectric sensor supports a maximum AC and DC voltage of 240V, making it versatile for various industrial applications.

Brand	Omron
Sensor Style	Block
Detection Type	Through Beam
Detection Range	40 m
Output Type	Relay
Electrical Connection	5 Wire Cable 2 m
Switching Mode	Light / Dark switching
Maximum AC Voltage	240V
Maximum DC Voltage	240V
Terminal Type	Wire Lead
Light Source	LED
IP Rating	IP64
Response Time	20 ms
Housing Material	ABS
Minimum Operating Temperature	-25°C
Series	E3JK
Maximum Operating Temperature	+55°C
Standards Met	CE

Photoelectric sensor, square body, red LED, through-beam, 40m, AC/DC, relay, L-ON/D-ON selectable, 2m cable
