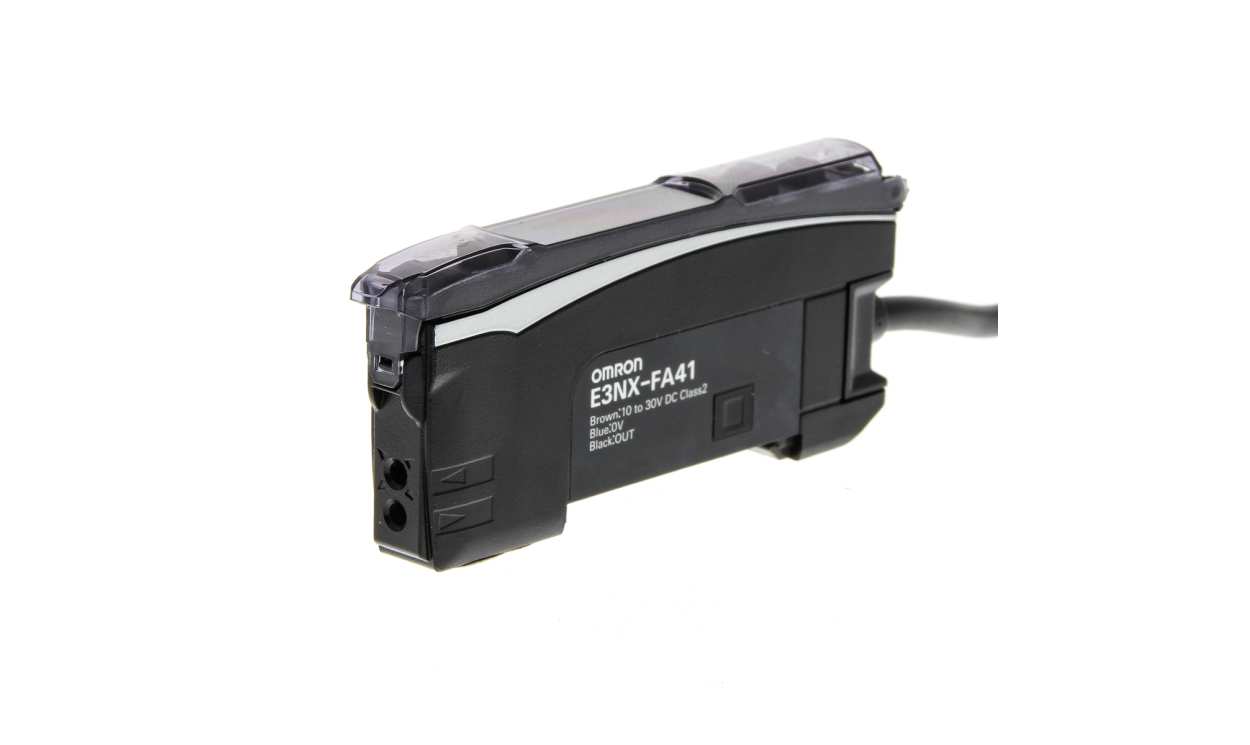

Omron E3NX-FAH41 2M, Fibre Amplifier, PNP Output, 1.08 W, IP54, 30 V dc

Part Number : E3NX-FAH41 2M

Availability: Sold out

Detailed Description
Specifications

The Advanced Fiber Amplifier Units That Handles On-site Needs

Improved basic performance with 1.5 times the sensing distance and approx. 1/10th the minimum sensing object.
Ultra-easy setup with Smart Tuning with a light intensity adjustment range expanded 20 times to 40,000:1. Optimum stable detection achieved with light intensity adjustment even for saturated incident light.
White on black display characters for high visibility.
Solution Viewer that shows the passing time and difference in incident levels and Change Finder that allows you to see display values even for fast workpieces.
Compared to the E3X-HD.

Brand	Omron
Output Type	PNP
Terminal Type	Pre-Wired
Response Time	1 ms, 16 ms, 32 μs, 250 μs
Light Source	LED
Power Consumption	1.08 W
IP Rating	IP54
Housing Material	Polycarbonate
Supply Voltage	30 V dc
Length	104.5mm
Width	10mm
Maximum Operating Temperature	+55°C
Minimum Operating Temperature	-25°C
Mounting Type	DIN Rail
Depth	33.5mm
Standards Met	CE Certified
Dimensions	104.5 x 10 x 33.5 mm
