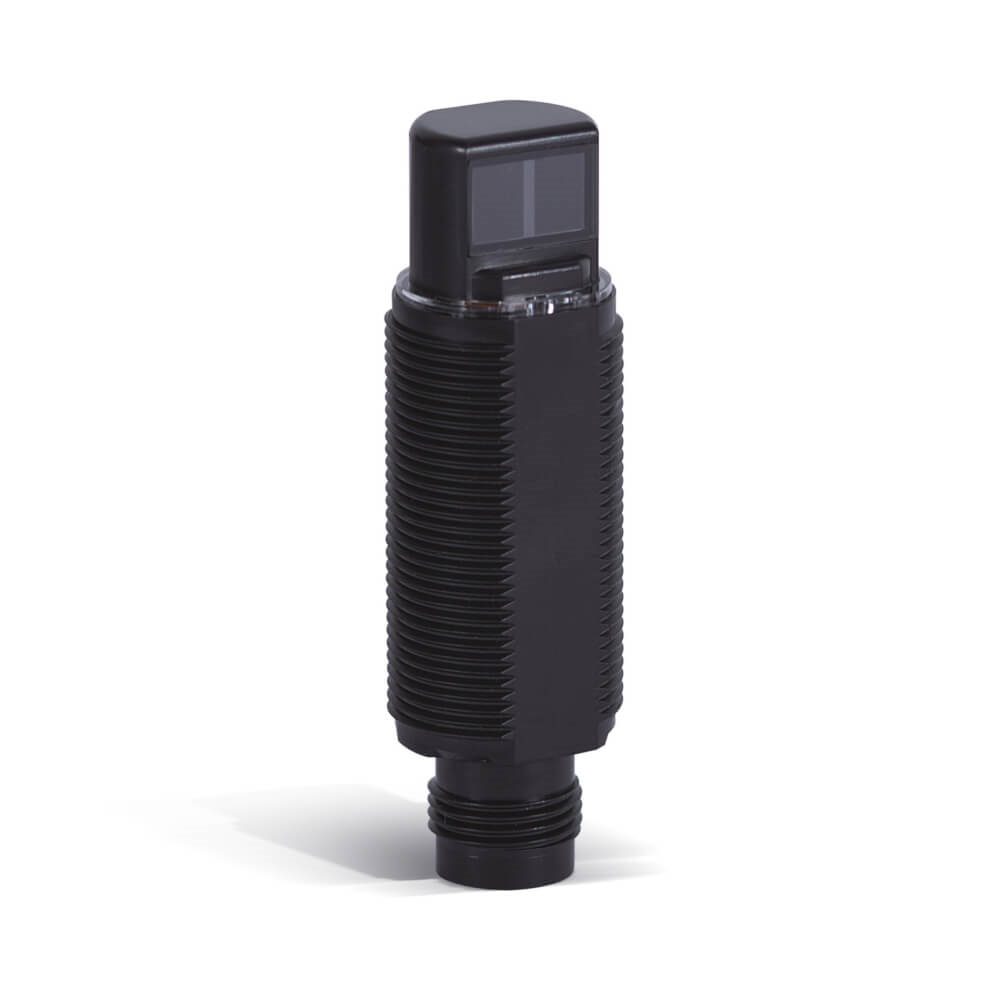

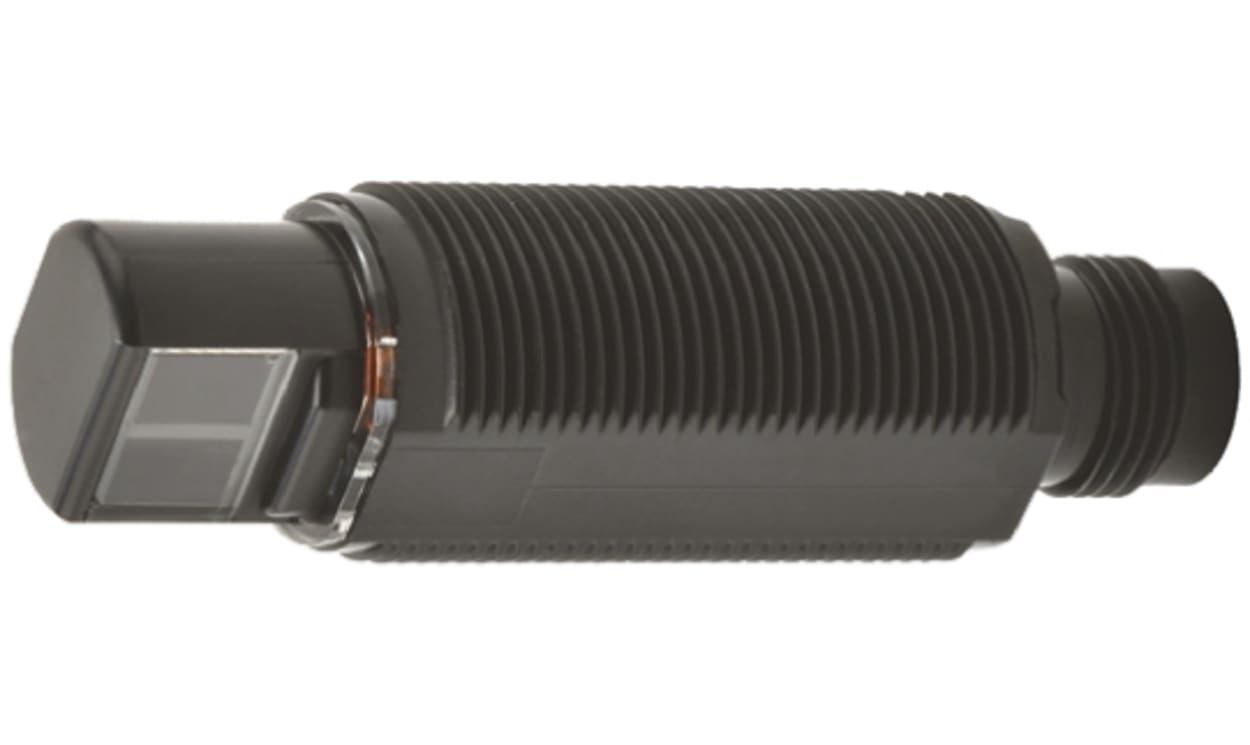

OMRON E3RA-DP23 | Diffuse Photoelectric Sensor | 700 mm, PNP, M12 4-Pin Connector
OMRON E3RA-DP23: an M18 radial barrel-style diffuse photoelectric sensor covering 700 mm, switching via PNP output. Electrical connection is by an M12 4-pin connector and it is housed in ABS. Within OMRON's range, the E3RA-DP23 is listed under the E3RA series.
- Light source: LED
- Maximum voltage: 30 V DC
- Current rating up to 25 mA
- Response time: 500 μs
- Protection rating: IP67 and IP69K
- Operating temperature: -25°C to +55°C
- Detailed Description
- Specifications
- Features
- Downloads
E3RA Compact Radial Photoelectric Sensors
Compact design
Plastic housing
Visible LED light for easy alignment
LED indication
Light-ON/Dark-ON selectable by wiring
Reversed power supply polarity protection, output short circuit protection and reversed output polarity protection
Built in amplifier
Short circuit and reverse polarity protection
M18 DIN size cylindrical housing
| Brand | Omron |
| Series | E3RA |
| Detection Type | Diffuse |
| Detection Range | 700 mm (27.6 in) |
| Sensor Style | Barrel |
| Output Type | PNP |
| Electrical Connection | M12 4 Pin Connector |
| Light Source | LED |
| Response Time | 500 μs |
| Maximum DC Voltage | 30V |
| IP Rating | IP67, IP69K |
| Maximum Current | 25 mA |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Housing Material | ABS |
| Maximum Operating Temperature | +55 °C (131 °F) |
Photoelectric sensor, M18 radial, plastic body, red LED, diffuse, 700 mm, PNP, L-ON/D-ON selectable, M12 connector
