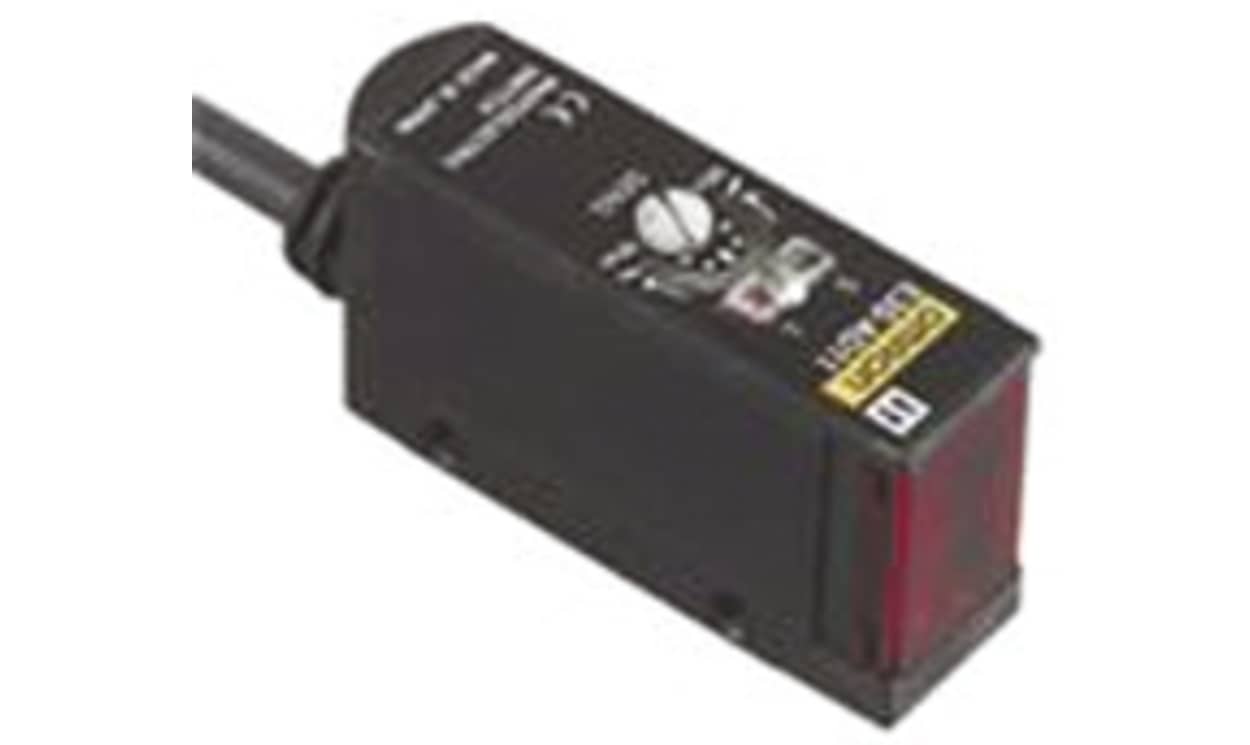

Name: Omron E3S-AD13, Diffuse Photoelectric Sensor, Block Sensor, 100 mm Detection Range
Brand: OMRON
SKU: E3S-AD13
Availability: OutOfStock

Omron E3S-AD13, Diffuse Photoelectric Sensor, Block Sensor, 100 mm Detection Range

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron E3S-AD13, Diffuse Photoelectric Sensor, Block Sensor, 100 mm Detection Range

Part Number : E3S-AD13

Availability: Sold out

Detailed Description
Specifications

E3S-A High Performance Sensors

Horizontal and vertical format versions
PBT Housing, denaturated polyallyate lens, IP67 sealed
PNP and NPN output configurations
Light ON/dark ON operation
Two-turn sensitivity adjustor
Light and stability LED indication
Operating temperature range -25° → +55°C
Short circuit and reverse polarity protection
Mounting bracket with fasteners included

Brand	Omron
Sensor Style	Block
Detection Type	Diffuse
Detection Range	100 mm
Output Type	NPN
Electrical Connection	Pre-Wired Cable
Maximum DC Voltage	30V
Terminal Type	Wire Lead
Light Source	Infrared
IP Rating	IP67
Maximum Current	35 mA
Response Time	500 μs
Housing Material	PBT
Minimum Operating Temperature	-25°C
Series	E3S
Maximum Operating Temperature	+55°C
