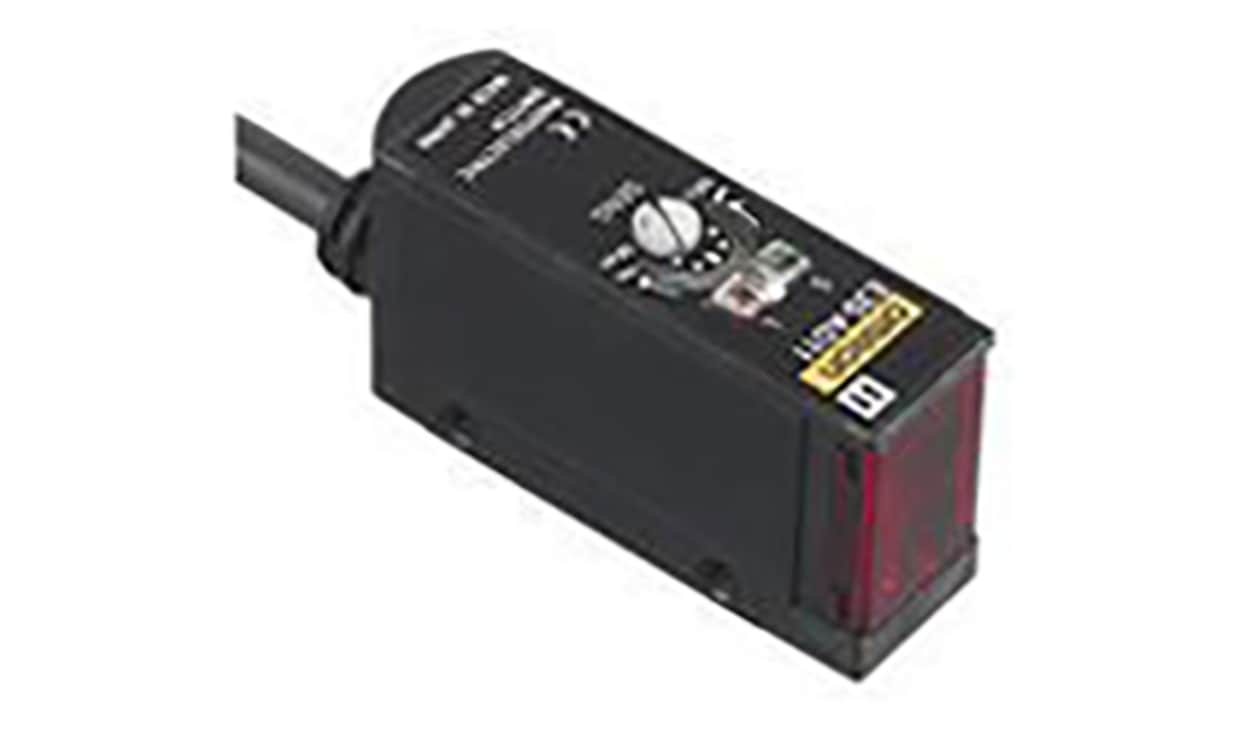

OMRON E3S-AD63 | Diffuse Photoelectric Sensor | 100 mm, NPN, Pre-Wired Cable
The OMRON E3S-AD63 is a block-style diffuse photoelectric sensor with a detection range of 100 mm and NPN output. Wiring is through a pre-wired cable and it is housed in PBT. The E3S-AD63 belongs to OMRON's E3S series.
- Light source: infrared
- Maximum voltage: 30 V DC
- Current rating up to 35 mA
- Response time: 500 μs
- Protection rating: IP67
- Operating temperature: -25°C to +55°C
- Detailed Description
- Specifications
- Downloads
E3S-A High Performance Sensors
PBT Housing, denaturated polyallyate lens, IP67 sealed
PNP and NPN output configurations
Light ON/dark ON operation
Two-turn sensitivity adjustor
Light and stability LED indication
Operating temperature range -25° → +55°C
Short circuit and reverse polarity protection
Mounting bracket with fasteners included
| Brand | Omron |
| Series | E3S |
| Detection Type | Diffuse |
| Detection Range | 100 mm (3.94 in) |
| Sensor Style | Block |
| Output Type | NPN |
| Electrical Connection | Pre-Wired Cable |
| Light Source | Infrared |
| Response Time | 500 μs |
| Maximum DC Voltage | 30V |
| IP Rating | IP67 |
| Maximum Current | 35 mA |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Housing Material | PBT |
| Maximum Operating Temperature | +55 °C (131 °F) |
