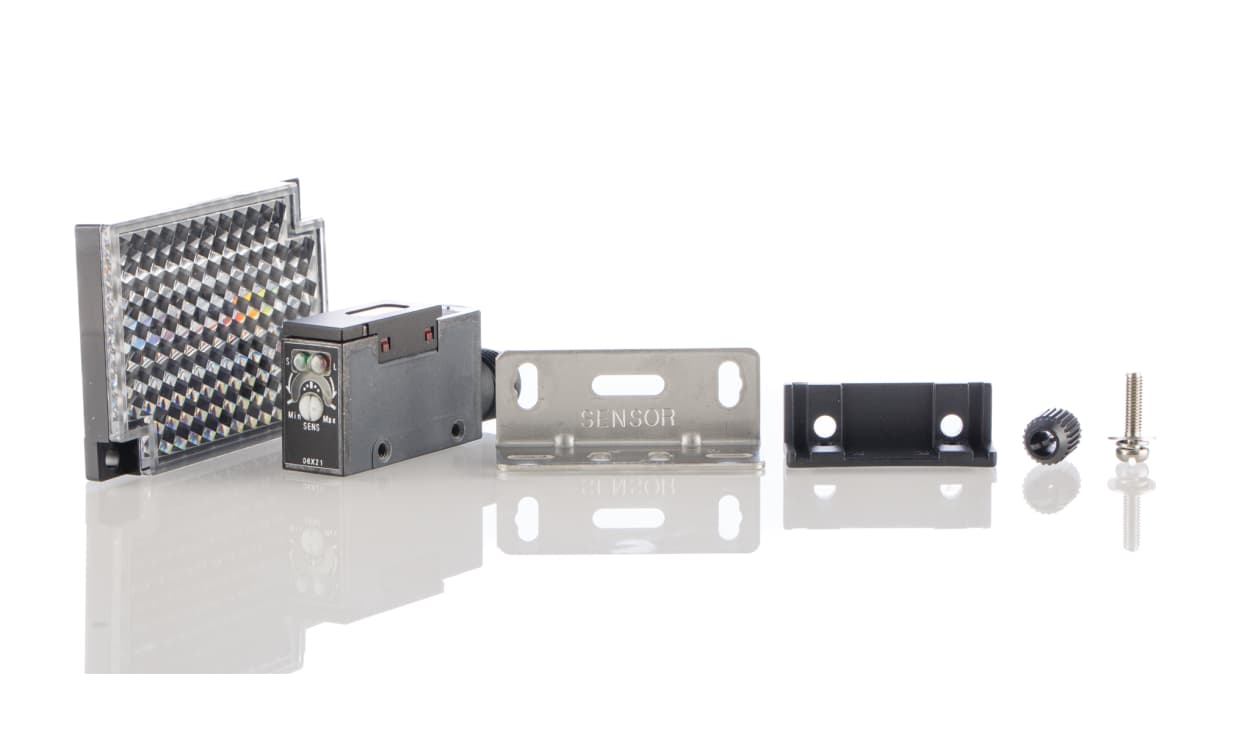

OMRON E3S-AR86 | Retroreflective Photoelectric Sensor | 100 mm to 2 m, PNP, M12 Connector
Part Number : E3S-AR86
A block-style retroreflective photoelectric sensor from OMRON, the E3S-AR86 offers a 100 mm to 2 m detection range. Output is PNP, with an M12 connector. Operating temperature spans -25°C to +55°C; the housing is PBT and protection is IP67. The sensor uses an LED light source and responds in 500 μs.
- Light/dark switching mode
- Maximum DC voltage: 30V
- Maximum current: 100 mA
- Standards: CE
- Series: OMRON E3S
- Detection range: 100 mm to 2 m
For pricing, please contact our experts.
Omron E3S Photoelectric Sensor, Retroreflective Detection Type, M12 Connector - E3SAR86
This is a medium-sized photoelectric sensor equipped with retro-reflective technology and a Modulated Scatter Reflective (M.S.R.) function. It operates effectively in both Light ON and Dark ON modes, providing reliable object detection within a sensing distance of 0.1 to 2 metres. This sensor is suitable for various industrial applications.
Features & Benefits
• Utilises advanced retro-reflective technology with M.S.R., ensuring accurate object detection
• Covers a range of 0.1 to 2 metres when using the E39-R1
• Employs a red LED (660 nm) for reliable performance
• Features a PNP open collector output with a maximum voltage of 30 VDC and a maximum current of 100 mA
• Operate or reset time is a swift 0.5 ms maximum
• Functions reliably between -25°C and 55°C (with no freezing or condensation)
• Covers a range of 0.1 to 2 metres when using the E39-R1
• Employs a red LED (660 nm) for reliable performance
• Features a PNP open collector output with a maximum voltage of 30 VDC and a maximum current of 100 mA
• Operate or reset time is a swift 0.5 ms maximum
• Functions reliably between -25°C and 55°C (with no freezing or condensation)
Applications
• Detecting packages, objects, or jams on conveyor belts
• Monitoring the presence of items in bins, hoppers, or chutes
• Verifying component placement and alignment
• Ensuring proper packaging and label placement
• General-purpose object detection in manufacturing processes
• Monitoring the presence of items in bins, hoppers, or chutes
• Verifying component placement and alignment
• Ensuring proper packaging and label placement
• General-purpose object detection in manufacturing processes
What is the sensing range of the E3SAR86?
The sensing distance ranges from 0.1 to 2 metres when using the E39-R.
Can I choose between Light ON and Dark ON operation?
Yes, the E3SAR86 is Light-ON/Dark-ON selectable.
What type of output does it have?
The sensor features a PNP open collector output.
Is it suitable for outdoor use?
The sensor is designed for indoor use and operates reliably within the specified ambient temperature range.
What is the response time of the sensor?
The operate or reset time is 0.5 ms maximum.
