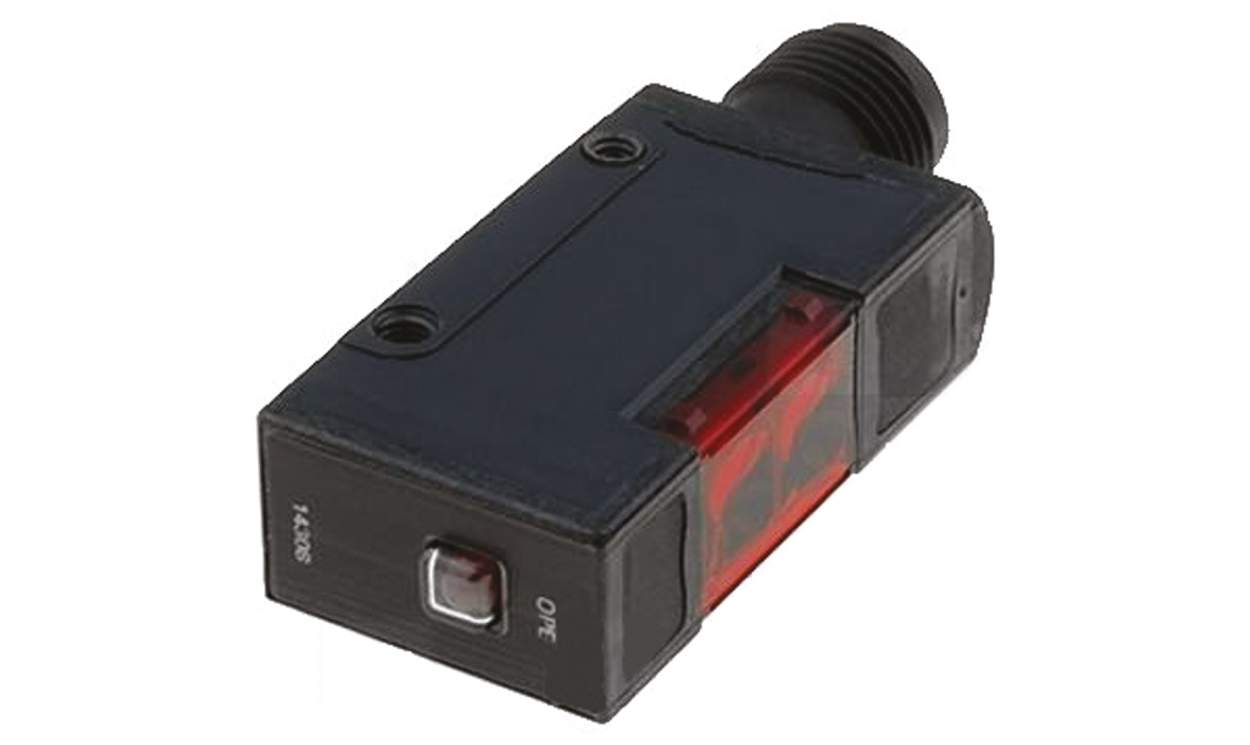

Name: Omron E3S-AT36-D, Through Beam Photoelectric Sensor, Block Sensor, 7 m Detection Range
Brand: OMRON
SKU: E3S-AT36-D
Availability: OutOfStock

Omron E3S-AT36-D, Through Beam Photoelectric Sensor, Block Sensor, 7 m Detection Range - generaltechuae

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron E3S-AT36-D, Through Beam Photoelectric Sensor, Block Sensor, 7 m Detection Range

Part Number : E3S-AT36-D

Availability: Sold out

Detailed Description
Specifications
Downloads

E32 Series Fibre Optic Sensing Heads

Various formats for a wide range of applications. IP67 (IP50 E32-L25)
All fibres are 2m long black PE.
Permissable bend radius 25mm min.
Trim to length with the cutting tool supplied for insertion into amplifier clamping apertures
Operating temperature range -40° to +70° C
Wafer-mapping ultraslim through-beam fiber

Brand	Omron
Sensor Style	Block
Detection Type	Through Beam
Detection Range	7 m
Output Type	PNP
Electrical Connection	M12 Connector
Maximum DC Voltage	30V
Terminal Type	4 Pin Connector
Light Source	LED
IP Rating	IP67
Maximum Current	20 mA
Response Time	500 μs
Maximum Operating Temperature	+55°C
Minimum Operating Temperature	-25°C
Housing Material	PBT
Series	E3S
