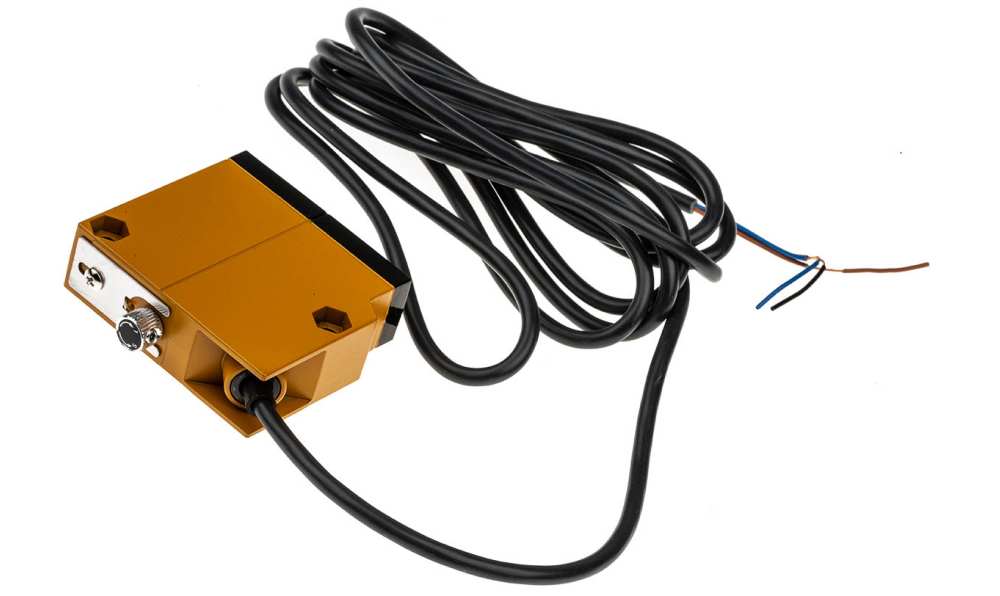

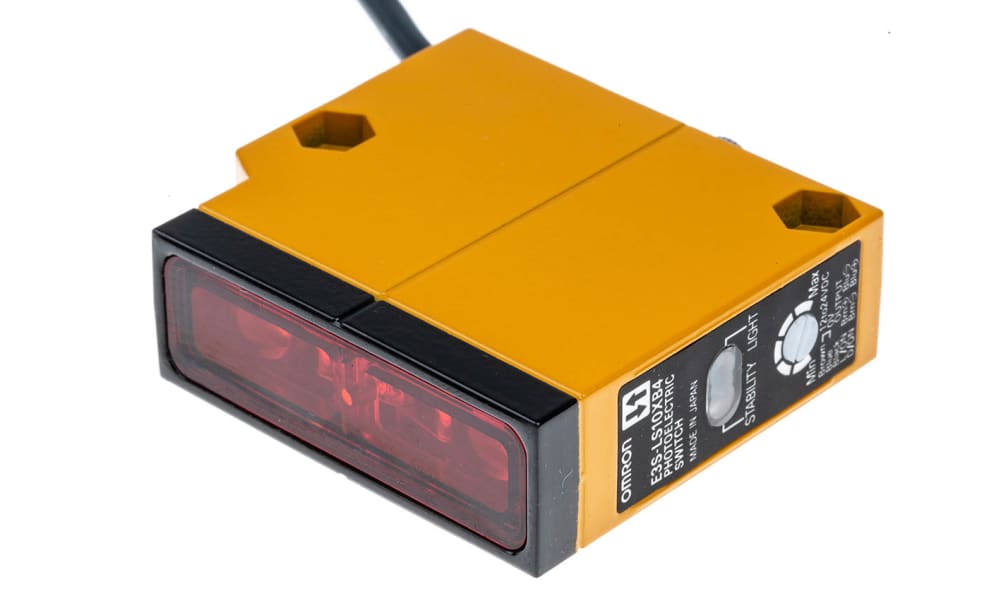

Omron E3S-LS10XB4, Diffuse Photoelectric Sensor, Block Sensor, 30 mm → 100 mm Detection Range

Part Number : E3S-LS10XB4

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron E3S Series Photoelectric Sensor, 30mm to 100mm Detection Range, IP67 - E3S-LS10XB4

This photoelectric sensor enhances automation processes in various industrial settings. Utilising diffuse detection technology, it reliably senses objects within a range of 30mm to 100mm, making it essential for tasks requiring accuracy. Its durable design ensures consistent performance across a broad temperature spectrum, meeting the needs of contemporary industrial operations.

Features & Benefits

• IP67 rating protection against dust and water ingress
• LED sensor technology for improved visibility and detection efficacy
• Operates within -25°C to +55°C for reliability in various conditions
• Die cast zinc housing for resilience in demanding environments

Applications

• Applicable in automated assembly lines for object detection
• Used in conveyor systems to monitor product flow
• Ideal for robotic needing precise positional sensing

What installation requirements should be considered when using this sensor?

Ensure secure terminal connections and comply with the recommended voltage specifications to avoid operational issues during installation.

What maintenance procedures are recommended for this sensor?

Regularly inspect for accumulation of dust or debris and keep the sensor face clean to maintain optimal sensing performance.

Is there a specific type of object this sensor cannot detect?

The sensor is most effective with opaque objects and may have difficulty detecting highly reflective or transparent materials, potentially affecting accuracy.

Brand	Omron
Sensor Style	Block
Detection Type	Diffuse
Detection Range	30 mm → 100 mm
Output Type	PNP
Maximum DC Voltage	24V

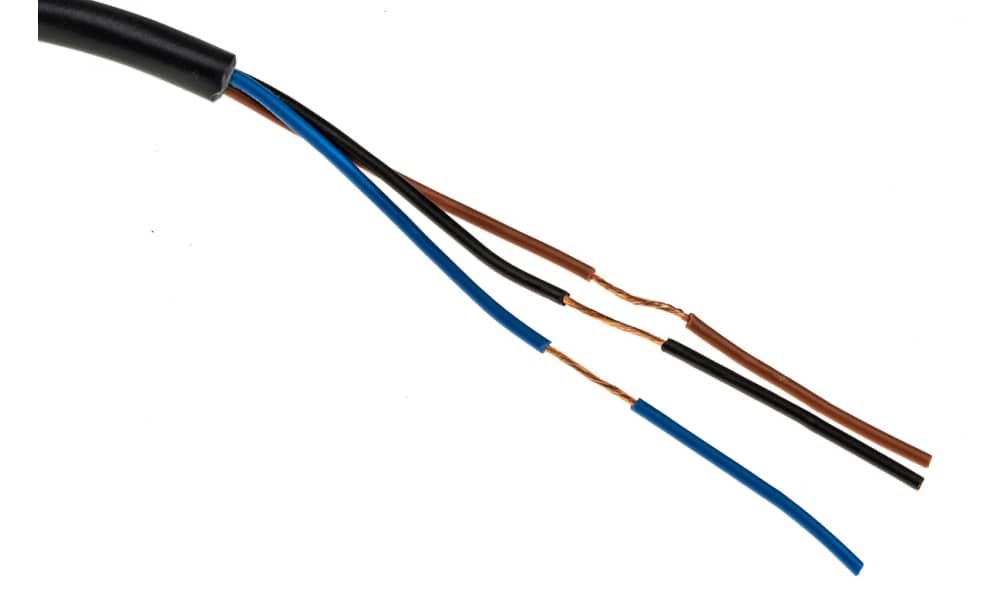

Terminal Type	Pre-Wired
Light Source	LED
IP Rating	IP67
Maximum Current	100 mA
Response Time	1 ms
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+55°C
Series	E3S
Housing Material	Die Cast Zinc

Omron E3S-LS10XB4, Diffuse Photoelectric Sensor, Block Sensor, 30 mm → 100 mm Detection Range

DOWNLOAD CATALOG
