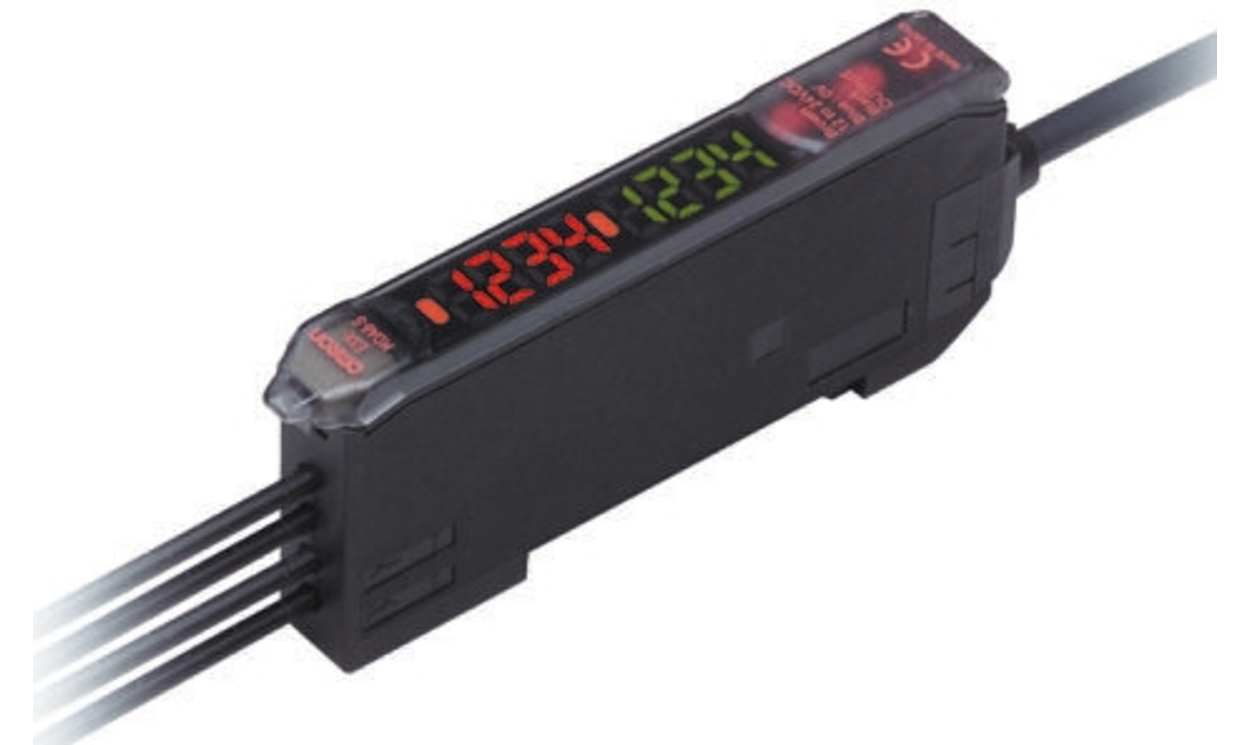

Omron E3X-MDA8, Fibre Optic Sensor, PNP Output, 1.08 W, IP50, 12 → 24 V dc

Part Number : E3X-MDA8

Availability: Sold out

Detailed Description
Specifications

E3X-MDA Two Amplifiers In One

The E3X-MDA series of digital fibre optic amplifiers and slim line dual channel units providing the installer with the potential to perform AND/OR comparison type functions. They support the existing E32 fibre head range which includes options for through-beam, retro-reflective and diffuse operation. Suitable for a variety of applications from general purpose product sensing to precision alignment applications

Thin profile – only 5mm wide
ON or OFF delay timer functions
Selectable channel 2 output - AND, OR, leading edge sync, falling edge sync, or differential output
High-speed and standard modes of operation

Brand	Omron
Output Type	PNP
Terminal Type	Connector
Response Time	1 ms, 4 ms, 130 μs, 450 μs
Light Source	Red LED
Electrical Connection	Cable
Power Consumption	1.08 W
IP Rating	IP50
Housing Material	PBT
Supply Voltage	12 → 24 V dc
Length	74.3mm
Width	10mm
Depth	32mm
Dimensions	74.3 x 10 x 32 mm
Maximum Operating Temperature	+45°C
Minimum Operating Temperature	-25°C
