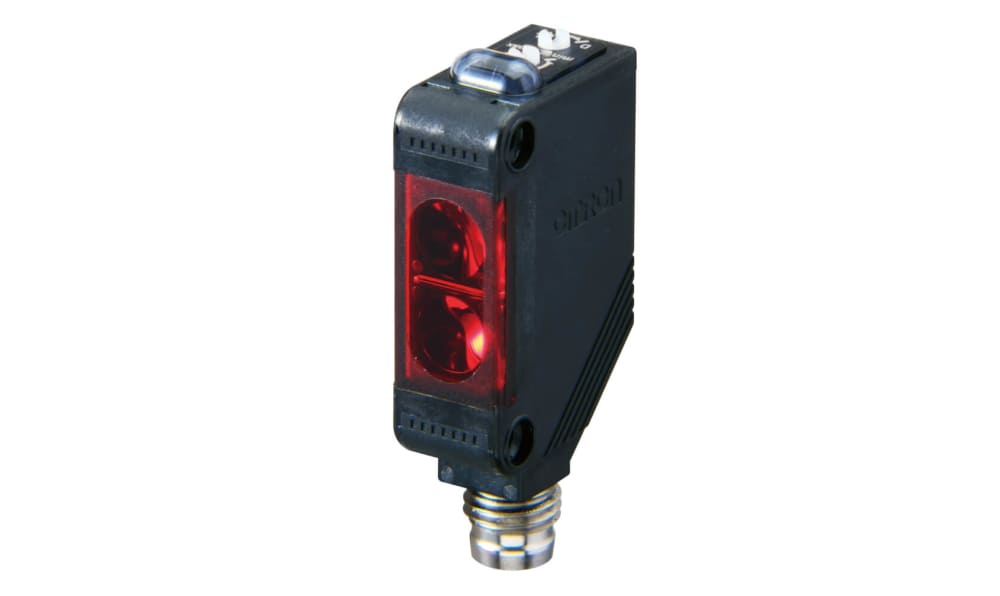

Omron E3Z-D86, Diffuse Photoelectric Sensor, Block Sensor, 5 mm → 100 mm Detection Range

Name: Omron E3Z-D86, Diffuse Photoelectric Sensor, Block Sensor, 5 mm → 100 mm Detection Range
Brand: OMRON
SKU: E3Z-D86
Availability: OutOfStock

Part Number : E3Z-D86

Photoelectric sensor, diffuse, 100 mm, DC, 3-wire, PNP, M8 plug-in (requires bracket)

Availability: Sold out

Detailed Description
Specifications
Features
Downloads

Omron E3Z Series Photoelectric Sensor, IP69K, 100mA Maximum Current - E3ZD86

This advanced Omron photoelectric sensor features cutting edge diffuse technology with an infrared light source. Designed to provide precise detection capabilities, this sensor offers a detection range from 5mm to 100mm. The durable housing material and IP69K rating ensure reliable performance even in challenging environments.

Features & Benefits

• Cutting edge diffuse technology for accurate detection
• Infrared light source for optimal performance
• Detection range from 5mm to 100mm for versatile applications
• IP69K rating for durability in harsh conditions
• Block style sensor design for easy integration
• PNP output for seamless connectivity
• Phototransistor technology for enhanced reliability
• Omron E3Z series sensor for proven quality

Applications

• Ideal for industrial automation systems
• Perfect for use in electronics manufacturing
• Suitable for applications in the electrical industry

Can this sensor detect objects in a range of 5mm to 100mm?

Yes, the sensor is designed to detect objects within this specific range.

Will this sensor function effectively in high-temperature environments?

Yes, the sensor is capable of operating at high temperatures to ensure reliable performance.

Is this sensor compatible with PNP output systems?

Yes, the sensor features a PNP output for seamless connectivity.

Can this sensor be used in block-style mounting configurations?

Yes, the sensor is designed in a block style for easy integration into different setups.

Brand	Omron
Sensor Style	Block
Detection Type	Diffuse
Detection Range	5 mm → 100 mm
Output Type	PNP
Electrical Connection	M8 4 Pin Connector
Switching Mode	Light / Dark switching
Maximum DC Voltage	26.4V
Light Source	Infrared
IP Rating	IP69K
Maximum Current	100 mA
Response Time	1 ms
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+55°C
Housing Material	PBT
Series	E3Z
Standards Met	CE

Photoelectric sensor, diffuse, 100 mm, DC, 3-wire, PNP, M8 plug-in (requires bracket)

Omron E3Z-D86, Diffuse Photoelectric Sensor, Block Sensor, 5 mm → 100 mm Detection Range

DOWNLOAD CATALOG

E3Z-D86 Brochure E3Z A700000009965526

E3Z-D86 INDEX LIST E3Z-8-IL A700000009969698
