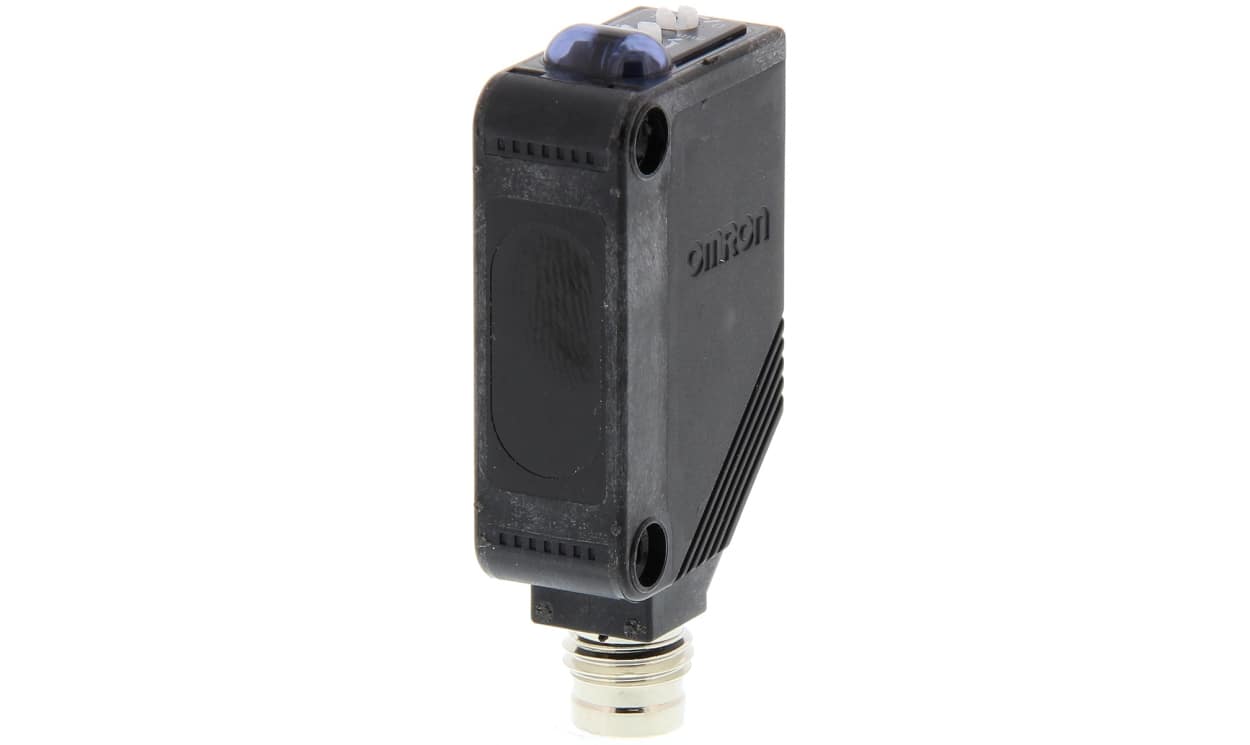

Name: Omron E3Z-D87-IL3, Diffuse Photoelectric Sensor, Block Sensor, 1 m Detection Range IO-LINK
Brand: OMRON
SKU: E3Z-D87-IL3
Availability: OutOfStock

Omron E3Z-D87-IL3, Diffuse Photoelectric Sensor, Block Sensor, 1 m Detection Range IO-LINK

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron E3Z-D87-IL3, Diffuse Photoelectric Sensor, Block Sensor, 1 m Detection Range IO-LINK

Part Number : E3Z-D87-IL3

Availability: Sold out

Detailed Description
Specifications

E3Z-IL IO-Link Photoelectric Sensors

Omron E3Z-IL photoelectric sensors with IO-Link connectivity offer reliable detection. IO-Link connectivity makes sensor level information visible and notifies of faults and problems in the Sensor in real time.

IO-Link compatible
IP67 rated
Small dead-band for sensing close targets
Retro-reflective versions have polarised light source for shiny object detection
Short circuit and reverse polarity protection
Mutual interference protection (retro and diffuse versions only)

Brand	Omron
Sensor Style	Block
Detection Type	Diffuse
Detection Range	1 m
Output Type	PNP
Electrical Connection	M8 4 Pin Connector
Communication Protocol	IO-LINK
Maximum DC Voltage	30V
Terminal Type	Pre-Wired
Light Source	Infrared
IP Rating	IP67
Maximum Current	100 mA
Response Time	1 ms
Interface	IO-Link
Series	E3Z
Maximum Operating Temperature	+55°C
Mounting Type	Threaded
Housing Material	PBT
Minimum Operating Temperature	-25°C
Standards Met	CE, IEC 60529
