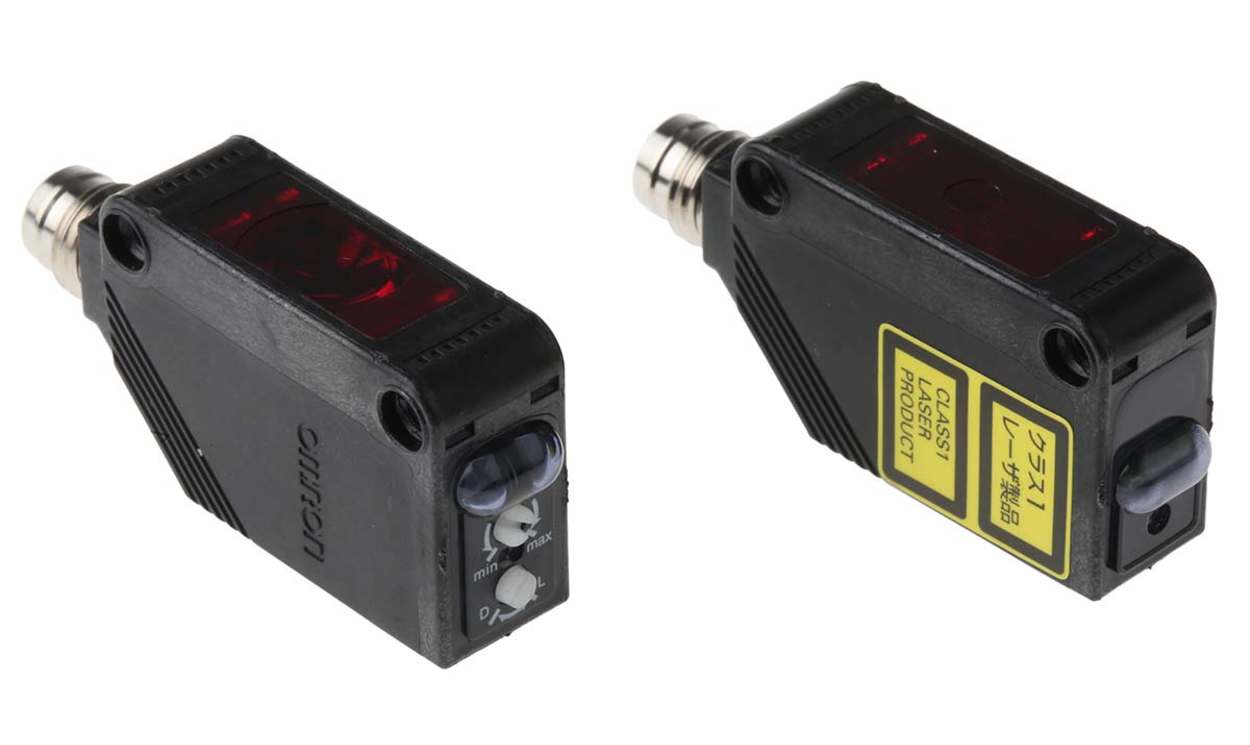

OMRON E3Z-LT86 | Through-Beam Photoelectric Sensor | 60 m, PNP, M8 4-Pin

Name: OMRON E3Z-LT86 | Through-Beam Photoelectric Sensor | 60 m, PNP, M8 4-Pin
Brand: OMRON
SKU: E3Z-LT86
Availability: InStock

Part Number : E3Z-LT86

The OMRON E3Z-LT86 is a block-style through-beam photoelectric sensor with a detection range of 60 m and a PNP output. It connects through an M8 4-pin connector, works with an LED light source and meets IP67 protection.

Supply up to 26.4 V DC
Max. current 100 mA
Response time 1 ms
Operating temperature -10 °C to +55 °C
PBT housing
E3Z series

Availability: low stock

Detailed Description
Specifications
Downloads

Omron E3Z Series Photoelectric Sensor, 60m Detection Range, IP67 - E3Z-LT86

This photoelectric sensor excels in a range of automation applications, leveraging advanced through beam technology for accurate object detection. With a detection range of up to 60m, it is suitable for long-distance sensing needs in industrial environments. The robust design features an IP67 rating, ensuring functionality even in harsh conditions, providing value for users across automation, electronics, and mechanical industries.

Features & Benefits

• Enhanced beam visibility simplifies optical axis adjustments
• Fast response time of up to 1ms improves performance
• PNP output ensures compatibility with various systems
• Light/dark switching facilitates versatile operational modes
• Durable housing withstands temperatures from -10 to +55°C
• Waterproof construction protects against damage in wet environments

Applications

• Detecting sides of large tiles in manufacturing
• Identifying chip components on tape
• Sorting and counting small objects like bottles
• Long-distance access in conveyor systems
• Automated packaging solutions

What type of connexion does the sensor utilise?

It employs an M8 4-pin connector for seamless integration into existing systems.

Can it detect very small objects?

Yes, it can detect objects as small as 0.1mm in diameter.

What maintenance is required for optimal performance?

Regular cleaning and verification of alignment are advised.

Brand	Omron
Sensor Style	Block
Detection Type	Through Beam
Detection Range	60 m
Output Type	PNP
Electrical Connection	M8 4 Pin Connector
Maximum DC Voltage	26.4V
Light Source	LED
IP Rating	IP67
Maximum Current	100 mA
Response Time	1 ms
Maximum Operating Temperature	+55°C
Minimum Operating Temperature	-10°C
Series	E3Z
Housing Material	PBT

OMRON E3Z-LT86 | Through-Beam Photoelectric Sensor | 60 m, PNP, M8 4-Pin

DOWNLOAD CATALOG

E3Z-LT86 Brochure E3Z A700000009965526

E3Z-LT86 INSTRUCTION SHEET E3Z-L A700000009969702

E3Z-LT86 Product Change Notification A700000014615984
