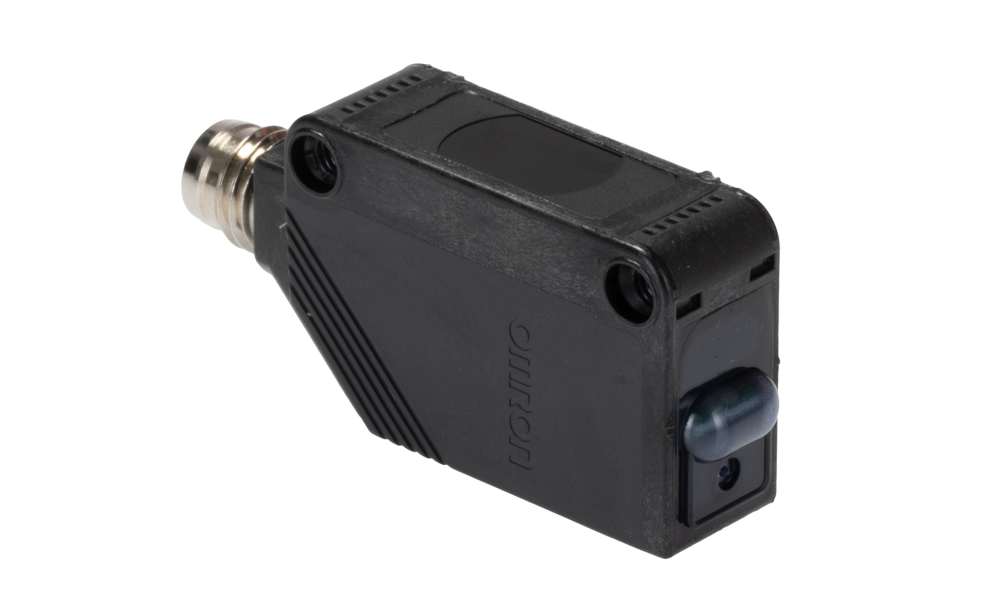

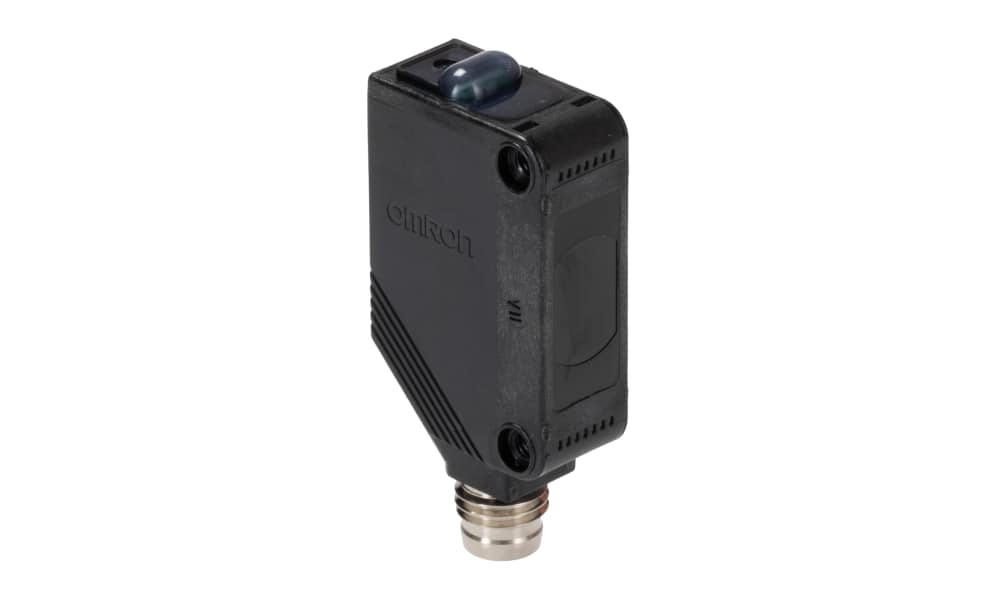

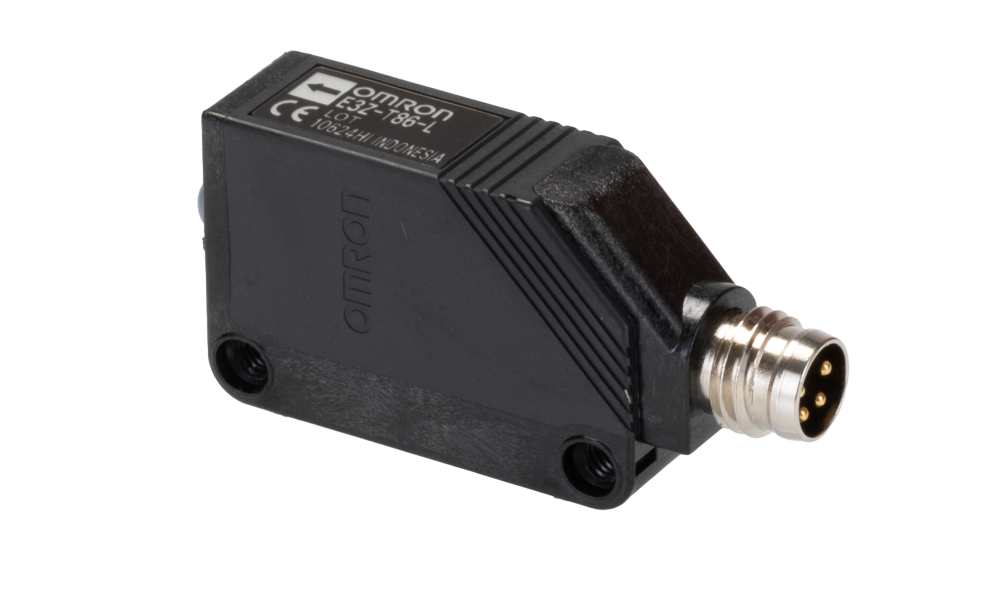

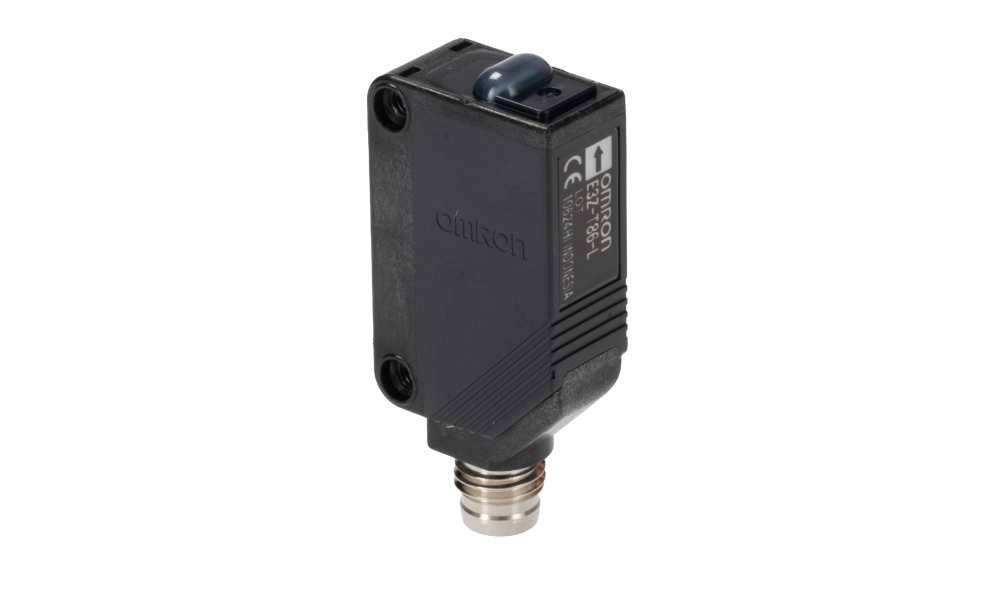

OMRON E3Z-T86-L | Through-Beam Photoelectric Sensor | 15 m, PNP, M8 Plug-In
OMRON's E3Z-T86-L through-beam photoelectric sensor provides a PNP output over a detection range of 15 m from a block-style body. It uses an M8 plug-in connector for connection, is fitted with an infrared light source and is rated IP67.
- Up to 24 V DC supply
- 35 mA maximum current
- Responds in 1 ms
- Temperature range -25 °C to +55 °C
- Body in PBT
- Light-on / dark-on switching
- Detailed Description
- Specifications
- Downloads
Omron E3Z Series Photoelectric Sensor, 15m Detection Range, PNP Output - E3Z-T86-L
Features & Benefits
• 15m detection range for versatility
• PNP output compatible with various systems
• Light/dark switching feature for flexible Applications
• Response time of 1ms ensures quick operation
Applications
• Packaging machinery requiring precise control
• Material handling systems
• Robotics for accurate object positioning
• Automotive manufacturing processes
What type of connection does it use for installation?
Can it operate in extreme temperatures?
Is it suitable for outdoor applications?
How does it handle different surfaces?
What power supply is required for its operation?
| Brand | Omron |
| Series | E3Z |
| Detection Type | Through Beam |
| Detection Range | 15 m (49.2 ft) |
| Sensor Style | Block |
| Output Type | PNP |
| Electrical Connection | M8 plug-in |
| Switching Mode | Light / Dark switching |
| Light Source | Infrared |
| Response Time | 1 ms |
| Maximum DC Voltage | 24V |
| IP Rating | IP67 |
| Maximum Current | 35 mA |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Housing Material | PBT |
| Maximum Operating Temperature | +55 °C (131 °F) |
| Standards Met | CE |
