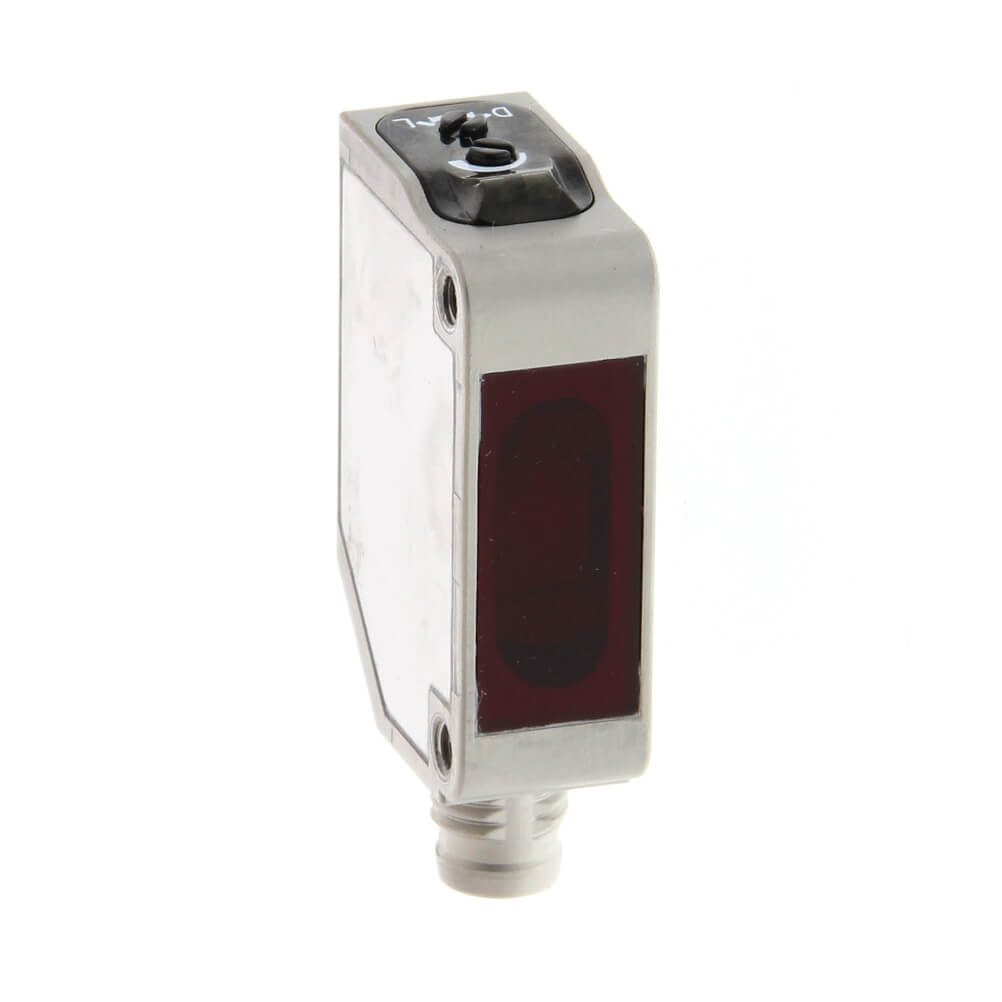

OMRON E3ZM-B86T | Retroreflective Photoelectric Sensor | 100 mm to 500 mm, PNP, M8 4-Pin

Name: OMRON E3ZM-B86T | Retroreflective Photoelectric Sensor | 100 mm to 500 mm, PNP, M8 4-Pin
Brand: OMRON
SKU: E3ZM-B86T
Availability: InStock

Part Number : E3ZM-B86T

Offering a PNP output, the OMRON E3ZM-B86T is a block-style retroreflective photoelectric sensor rated for a 100 mm to 500 mm detection range. The unit terminates in an M8 4-pin connector, uses an LED light source and carries an IP67 and IP69K rating. OMRON's description lists it as a transparent version with a metal body and an adjuster. The reflector is not included.

Maximum voltage 30 V DC
Current rating up to 100 mA
1 ms response time
Works from -25 °C to +55 °C
Housing material: stainless steel
Switching mode: light-on / dark-on switching

Availability: low stock

Detailed Description
Specifications
Features
Downloads

E3ZM-B Retro-Reflective Sensor

The new-generation E3ZM-B sensors provide dependable and stable detection of PET (polypolyethylene terephthalate) bottles which are becoming more transparent and are formed in increasingly diverse shapes.

Easy installation: Teach once on the reflector and detect any kind of PET bottle
Stabile and reliable detection in difficult environments
High grade IP69K SUS housing
Designed for aggressive cleaning detergents of Food-Industry
One operation setup

OMRON Photoelectric Sensor, Stainless Steel Housing, 1ms Response Time - E3ZM series - E3ZM-B86T

Working with the latest generation of PET bottles? This photoelectric sensor from OMROM uses retro-reflective technology to detect bottles and other items on a conveyor, even super-transparent ones, regardless of shape, position or contents. Setting it up is a doddle – teach it once on the reflector and it can detect any kind of transparent object made from PET, resin or glass. You can count on the sensor's corrosion-resistant, stainless steel housing and thermoplastic display cover to stand firm against aggressive cleaning detergents. This makes it well-suited for use in the food and beverage industry.

Features & Benefits

• Broad sensing range from 100 to 500mm makes it a flexible workmate
• IP67 and IP69K ratings mean it's dust-tight, waterproof and can withstand high-pressure water jets and steam cleaning
• LED light source makes efficient use of energy

Applications

• Food and beverage industry
• Recycling facilities
• Airport baggage handling

Does this sensor need specific light conditions to work properly?

No. Thanks to its advanced pulse synchronisation, this sensor will operate continuously even in changing conditions, such as against bright backgrounds or under artificial light.

Brand	Omron
Sensor Style	Block
Detection Type	Retroreflective
Detection Range	100 mm → 500 mm
Output Type	PNP
Switching Mode	Light / Dark switching
Electrical Connection	M8 4 Pin Connector
Maximum DC Voltage	30V
Light Source	LED
IP Rating	IP67, IP69K
Maximum Current	100 mA
Response Time	1 ms
Maximum Operating Temperature	+55°C
Housing Material	Stainless Steel
Series	E3ZM
Mounting Type	Flange Mount
Minimum Operating Temperature	-25°C
Standards Met	CE

Photoelectric sensor, transparent, retro-reflective 500mm with adjuster, metal body, IP69K, PNP, reflector not included, M8 4-pin connector

OMRON E3ZM-B86T | Retroreflective Photoelectric Sensor | 100 mm to 500 mm, PNP, M8 4-Pin

DOWNLOAD CATALOG

E3ZM-B86T Brochure A700000009869281
