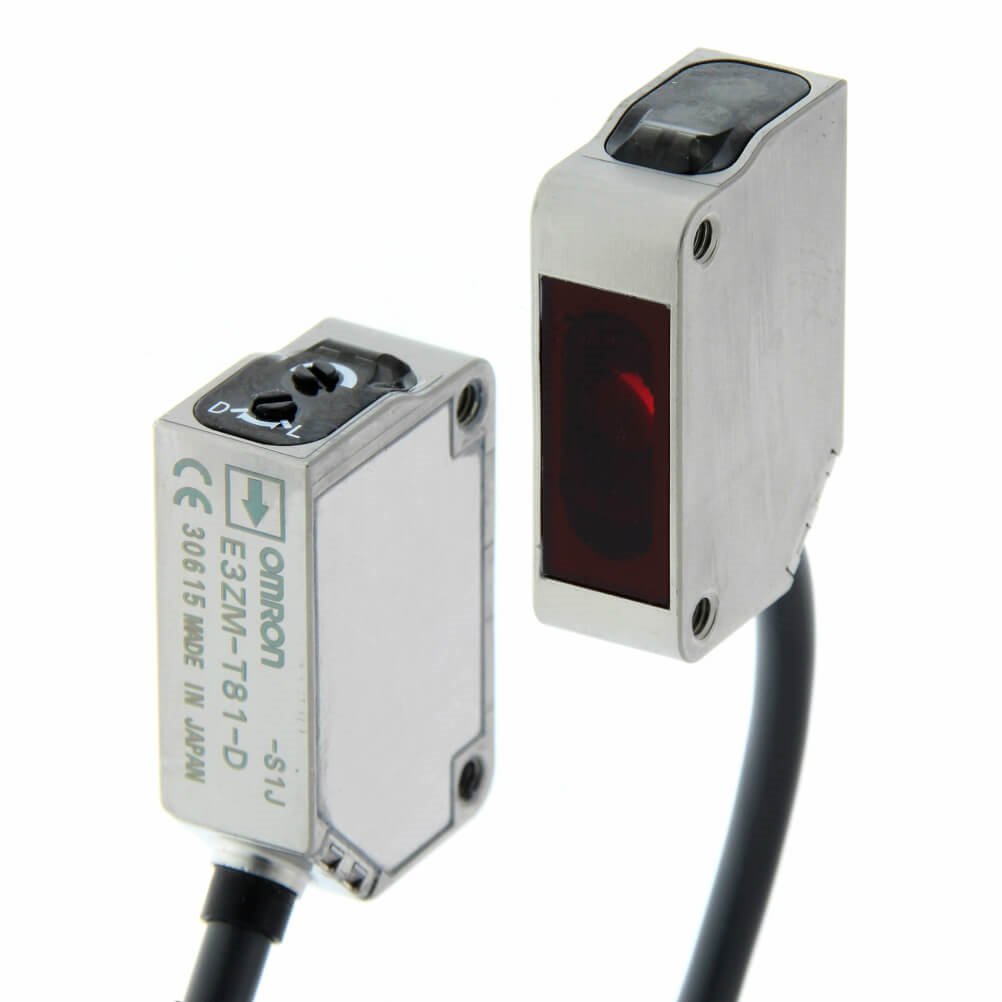

OMRON E3ZM-T81 2M | Through-Beam Photoelectric Sensor | 15 m, PNP, 2 m Cable
The OMRON E3ZM-T81 2M is a block-style through-beam photoelectric sensor with a detection range of 15 m and a PNP output. It is wired via a 2/3-wire 2 m cable, has an infrared light source and offers IP69K ingress protection.
- Up to 30 V DC supply
- 100 mA maximum current
- Responds in 1 ms
- Temperature range -25 °C to +55 °C
- Body material: stainless steel
- E3ZM series
- Detailed Description
- Specifications
- Features
- Downloads
Omron E3ZM Series Photoelectric Sensor, 15m Detection Range, IP69K - E3ZM-T81 2M
Features & Benefits
• PNP output facilitates easy integration with control systems
• IP69K rating provides excellent dust and water resistance
• Light/dark switching mode offers operational versatility
• Stainless steel housing withstands harsh conditions
• Fast response time of 1ms for enhanced operational efficiency
Applications
• Suitable for high-temperature environments like ovens
• Utilised in automated assembly processes
• Effective object detection in conveyor systems
• Employed in cold-storage facilities for monitoring
How to connect it to my control system?
What are the operating temperature limits?
Can it be used in outdoor applications?
How often does it require maintenance?
What type of objects can it detect?
| Brand | Omron |
| Series | E3ZM |
| Detection Type | Through Beam |
| Detection Range | 15 m (49.2 ft) |
| Sensor Style | Block |
| Output Type | PNP |
| Electrical Connection | 2/3-Wire Cable 2 m |
| Light Source | Infrared |
| Response Time | 1 ms |
| Maximum DC Voltage | 30V |
| IP Rating | IP69K |
| Maximum Current | 100 mA |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Housing Material | Stainless Steel |
| Maximum Operating Temperature | +55 °C (131 °F) |
Photoelectric sensor, through-beam, metal body, IP69K, 15m, PNP, 2m cable
