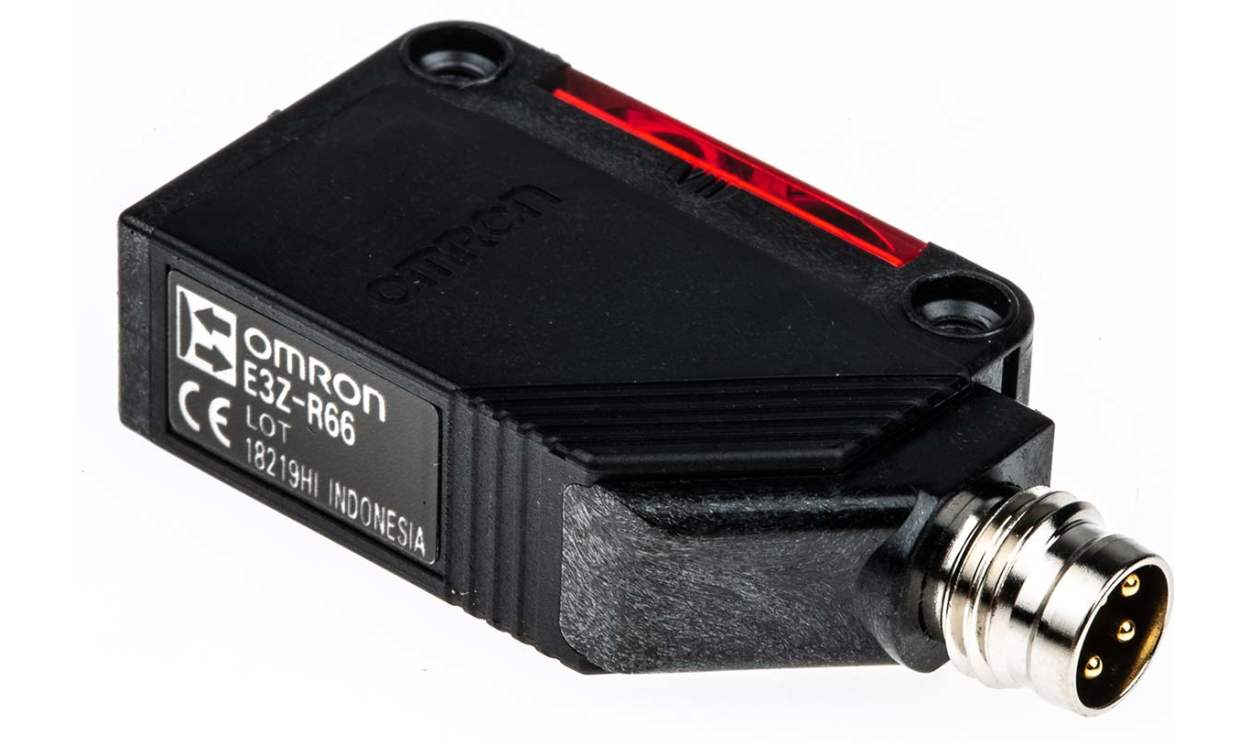

OMRON E3ZR66OMS | Retroreflective Photoelectric Sensor | 100 mm to 4 m, NPN, M8 4-Pin
The OMRON E3ZR66OMS is a block-style retroreflective photoelectric sensor with a detection range of 100 mm to 4 m and an NPN output. It connects through an M8 4-pin connector, works with an LED light source and meets IP69K.
- Up to 26.4 V DC supply
- 100 mA maximum current
- Responds in 1 ms
- Temperature range -25 °C to +55 °C
- Body material: PBT
- E3ZR series
- Detailed Description
- Specifications
- Downloads
Omron E3ZR Series Photoelectric Sensor, 100mm to 4m Detection Range, NPN Output - E3ZR66OMS
Features & Benefits
• Designed for high temperatures with an operating range up to +55°C
• Utilises red LED as a light source for effective visibility
• Prevents interference with an innovative stability algorithm
• Features reverse polarity protection for enhanced safety
• Compact PBT housing ensures reliable operation in demanding conditions
Applications
• Ideal for high-speed automated production lines
• Suitable for packaging and bottling systems requiring precise sensor operation
• Effective in robotics for accurate positioning and movement control
• Used for controlling access in automation systems and conveyors
What is the maximum distance this sensor can detect objects?
How does this sensor maintain performance in bright environments?
What precautions should be taken during installation?
Which type of connector is compatible with this sensor?
| Brand | Omron |
| Series | E3ZR |
| Detection Type | Retroreflective |
| Detection Range | 100 mm → 4 m |
| Sensor Style | Block |
| Output Type | NPN |
| Electrical Connection | M8 4 Pin Connector |
| Light Source | LED |
| Response Time | 1 ms |
| Maximum DC Voltage | 26.4V |
| IP Rating | IP69K |
| Maximum Current | 100 mA |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Housing Material | PBT |
| Maximum Operating Temperature | +55 °C (131 °F) |
