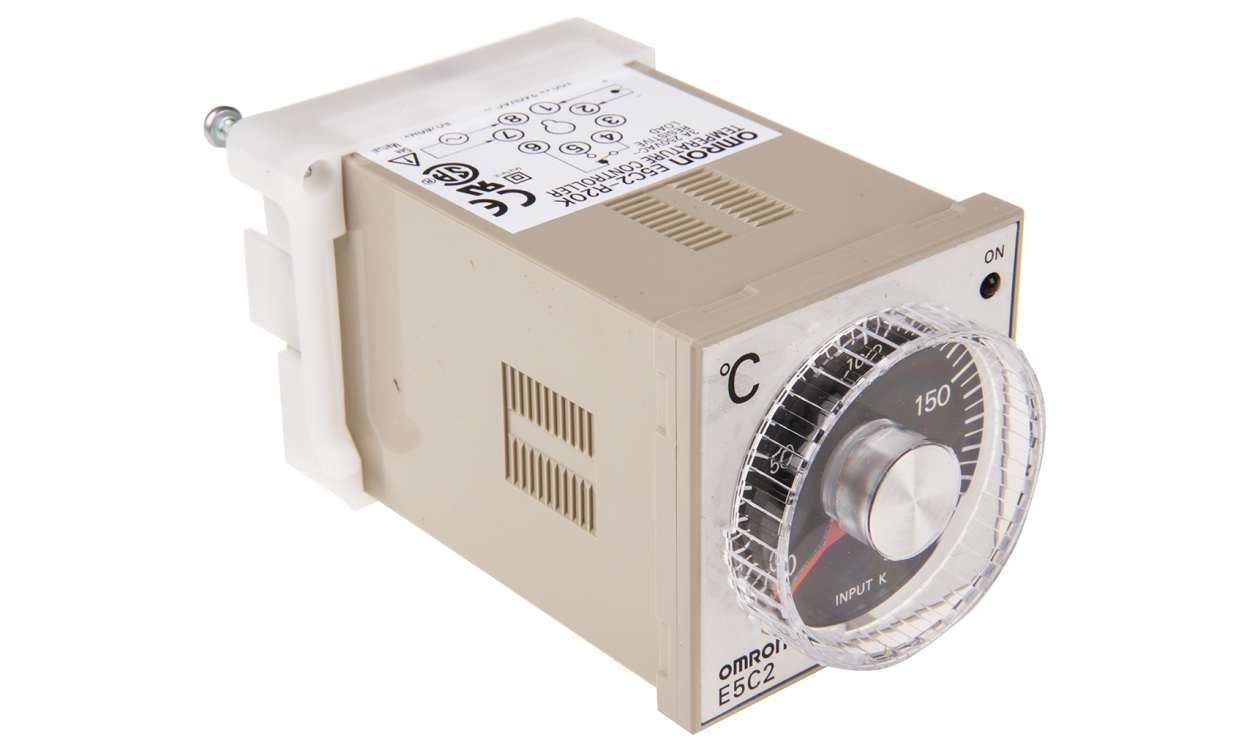

Name: Omron E5C2-R20K 100-240VAC 0-200, E5C2 Panel Mount, Din-Rail Removable Socket On/Off Temperature Controller, 48 x 48mm Relay, 100 → 240 V ac Supply
Brand: OMRON
SKU: E5C2-R20K 100-240VAC 0-200
Availability: OutOfStock

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron E5C2-R20K 100-240VAC 0-200, E5C2 Panel Mount, Din-Rail Removable Socket On/Off Temperature Controller, 48 x 48mm Relay, 100 → 240 V ac Supply

Part Number : E5C2-R20K 100-240VAC 0-200

Availability: Sold out

Detailed Description
Specifications

Omron E5C2 Series On/Off Temperature Controller, 86.7mm Panel Depth, IP40/IP00 - E5C2-R20K AC100-240 0-200

This On/Off temperature controller is crafted for precise temperature regulation in various industrial applications. Its compact DIN-sized design ensures seamless integration into panel and DIN rail configurations, providing versatility for automation and control systems. The device offers a significant temperature range and can adapt to different control outputs, ensuring dependable performance in demanding conditions.

Features & Benefits

• Offers a temperature control range from -10 to +55°C
• Compact design facilitates installation in restricted spaces
• IP40 rated construction for durability in industrial settings

Applications

• Temperature control in HVAC systems
• Maintenance of optimal product conditions in food processing
• Temperature management in manufacturing processes

What types of sensors can be connected to the controller?

The controller is compatible with various sensors, including K Type thermocouples, platinum resistance thermometers, and thermistors with replaceable elements, providing flexibility for different measurement needs.

How should the controller be mounted?

Mounting can be accomplished via panel or DIN rail methods, allowing for straightforward integration into existing setups. A mounting adapter is available for consecutive mounting of multiple units.

How can the temperature setting be adjusted?

The temperature setting is adjusted using an analogue knob located on the front panel, enabling simple and precise configuration without applying excessive force to prevent damage.

What is the expected electrical life of the relay output?

The relay output is rated for an electrical life expectancy of at least 100,000 operations under resistive load conditions, ensuring longevity across various applications.

Omron E5N Range

ON/OFF and PID control methods
Operating Temperature Range: -10°C to +55°C
0-50mV linear input
IP66/NEMA4 front fascia
CE marked in compliance to relevant European Directives

Brand	Omron
Output Type	Relay
Supply Voltage	100 → 240 V ac
Size	48 x 48mm
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+55°C
Temperature Range	-10 → +55 °C
Control Type	ON/OFF
IP Rating	IP00, IP40
Input Type	K Type Thermocouple
Series	E5C2
Range	0 → 200 °C
Mounting Type	Panel Mount, Din-Rail Removable Socket
Termination Type	Screw through plug-in socket
Panel Depth	86.7mm

Omron E5C2-R20K 100-240VAC 0-200, E5C2 Panel Mount, Din-Rail Removable Socket On/Off Temperature Controller, 48 x 48mm Relay, 100 → 240 V ac Supply
