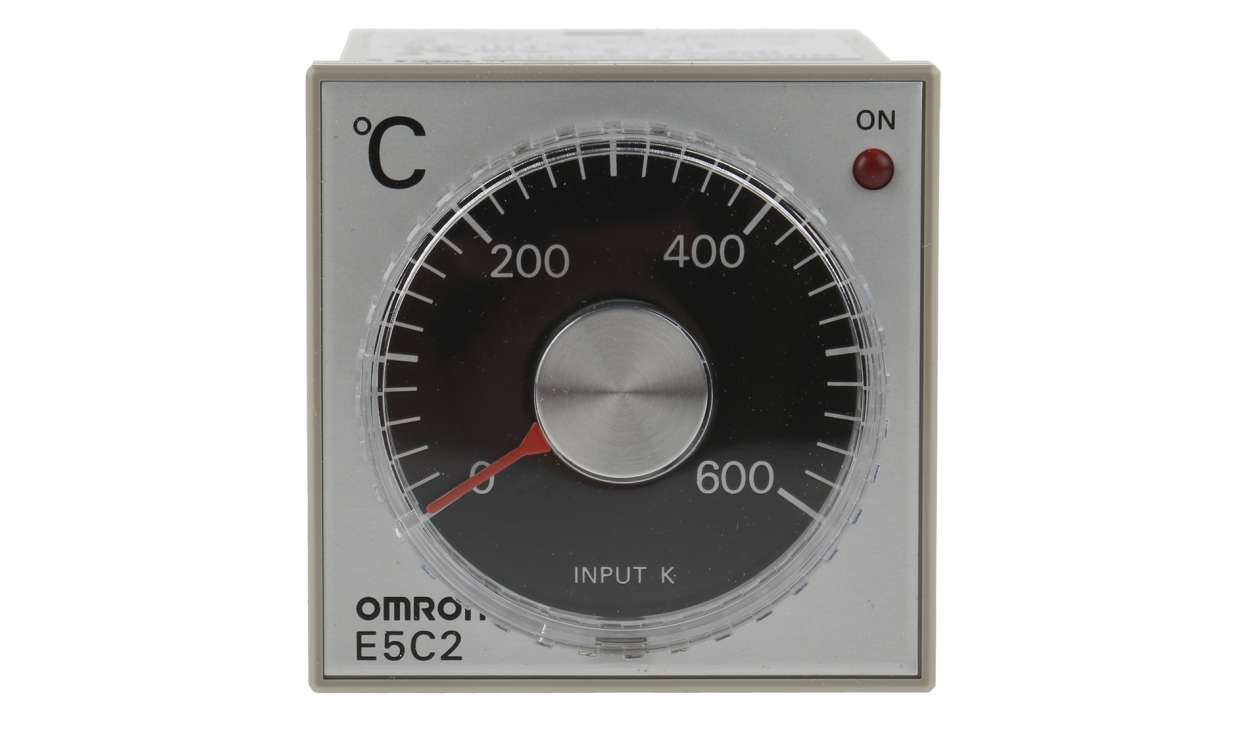

    Omron E5C2-R20K 100-240VAC 0-600, E5C2 Panel Mount, Din-Rail Removable Socket On/Off Temperature Controller, 48 x 48mm Relay, 100 → 240 V ac Supply
- Detailed Description
 - Specifications

Omron E5C2 Series On/Off Temperature Controller, 86.7mm Panel Depth, IP40/IP00 - E5C2-R20K AC100-240 0-600
Features & Benefits
• Plug-in socket design ensures easy installation
• IP40 rating provides protection against dust and light moisture
• Wide input voltage range from 100 to 240VAC
Applications
• Suitable for temperature control in HVAC
• Ideal for equipment demanding precise thermal regulation
What is the maximum operational temperature?
How should it be installed for optimal performance?
What kind of sensors can be connected to it?
How frequently should it be checked for accuracy?
| Brand | Omron |
| Output Type | Relay |
| Supply Voltage | 100 → 240 V ac |
| Size | 48 x 48mm |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +55°C |
| Temperature Range | -10 → +55 °C |
| Control Type | ON/OFF |
| IP Rating | IP00, IP40 |
| Series | E5C2 |
| Range | 0 → 600 °C |
| Input Type | K Type Thermocouple |
| Mounting Type | Panel Mount, Din-Rail Removable Socket |
| Termination Type | Screw through plug-in socket |
| Panel Depth | 86.7mm |
