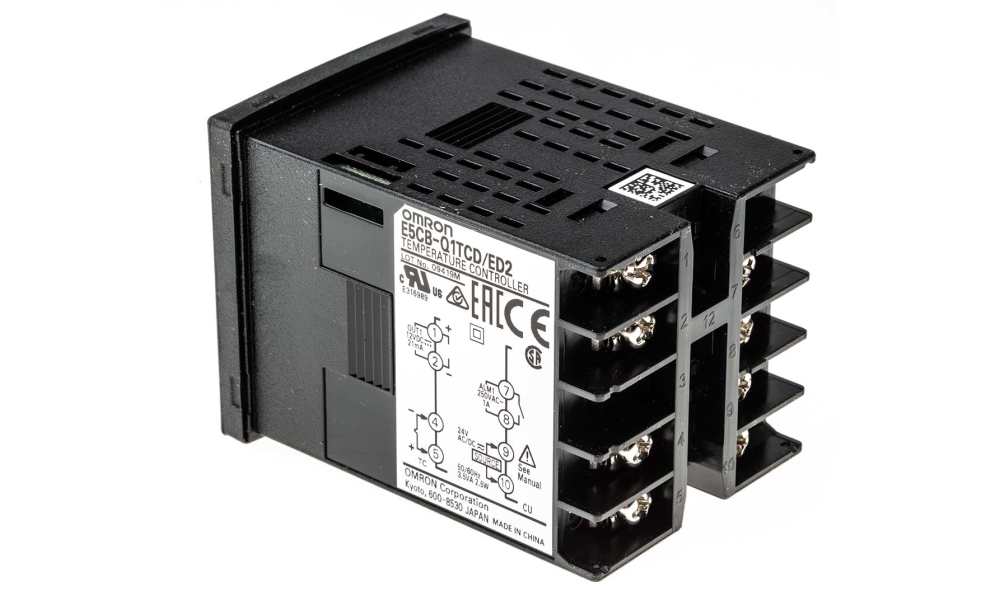

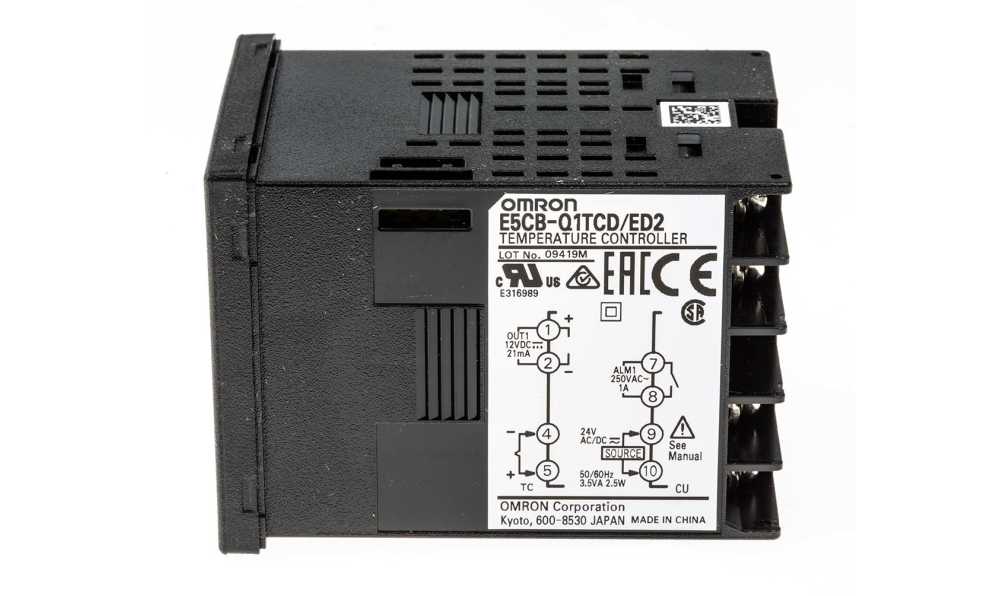

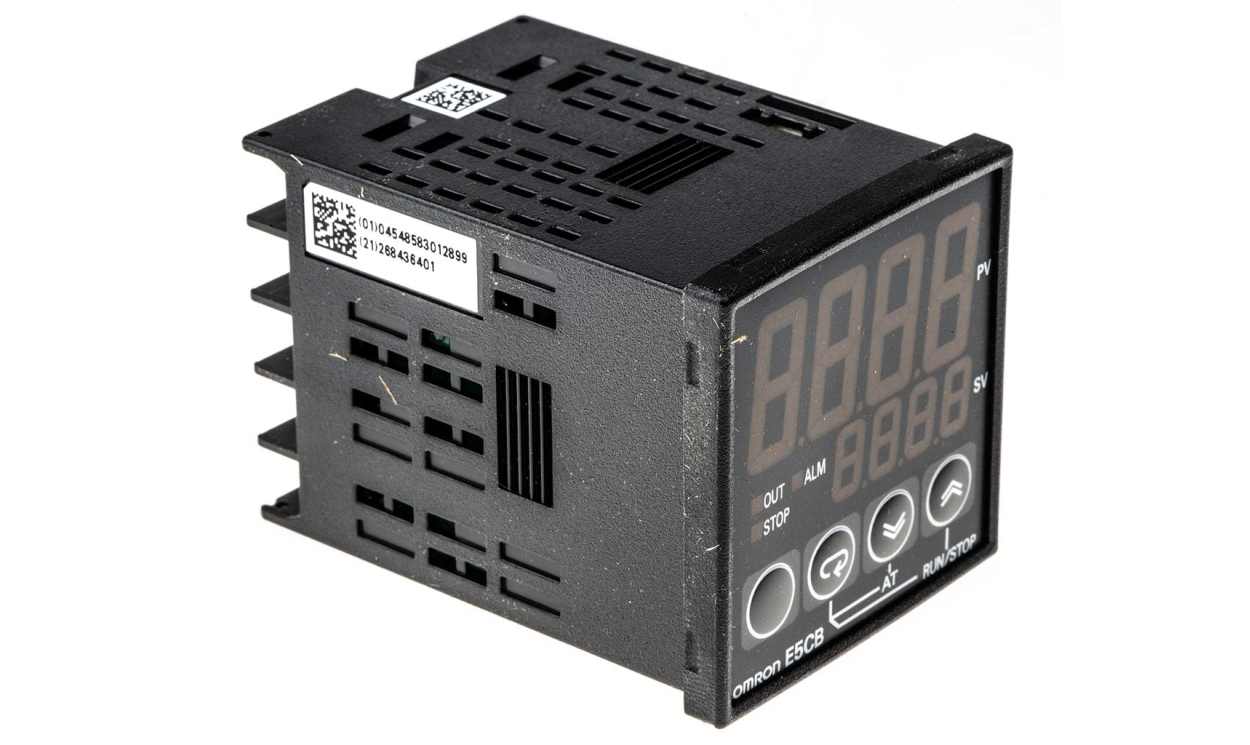

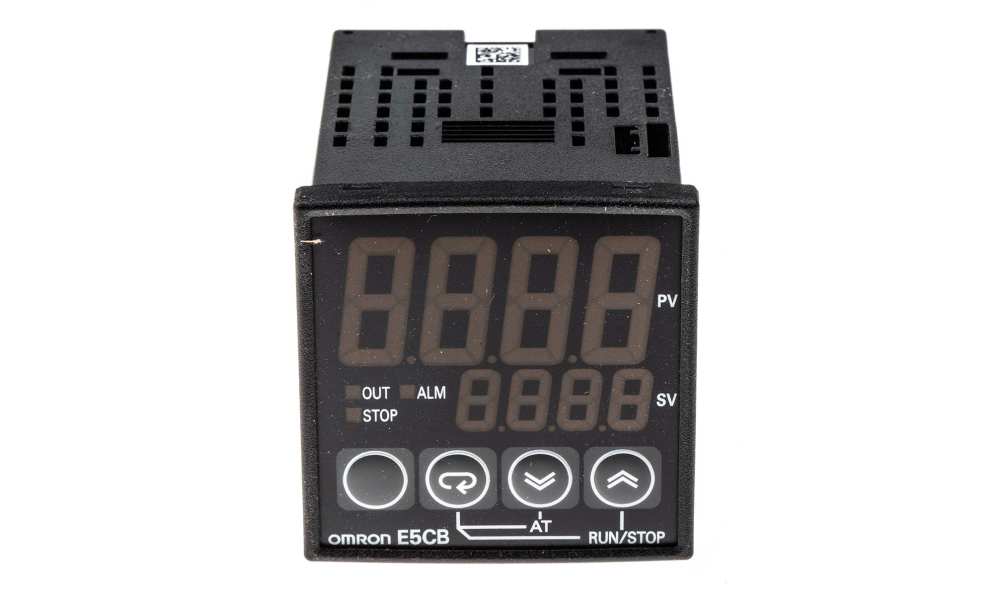

Name: Omron E5CB-Q1TCD 24VAC/DC, E5CB Panel Mount PID Temperature Controller, 48 x 48mm, 1 Output SSR, Solid State Relay, Logic, 24 V ac/dc Supply
Brand: OMRON
SKU: E5CB-Q1TCD 24VAC/DC
Availability: OutOfStock

Omron E5CB-Q1TCD 24VAC/DC, E5CB Panel Mount PID Temperature Controller, 48 x 48mm, 1 Output SSR, Solid State Relay, Logic, 24 V ac/dc Supply

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron E5CB-Q1TCD 24VAC/DC, E5CB Panel Mount PID Temperature Controller, 48 x 48mm, 1 Output SSR, Solid State Relay, Logic, 24 V ac/dc Supply

Part Number : E5CB-Q1TCD 24VAC/DC

Availability: Sold out

Detailed Description
Specifications

Omron E5CB Series PID Temperature Controller, SSR/Solid State Relay/Logic Output, Thermocouple Input - E5CB-Q1TCD AC/DC24

This PID temperature controller is essential for precise temperature management in various industrial settings. Designed for high performance, it utilises advanced ON/OFF and PID control methods to maintain target temperature levels efficiently. It is suitable for the automation, electronics, and mechanical industries, facilitating effective temperature regulation to enhance process efficiency.

Features & Benefits

• Compact design for panel mounting in confined spaces
• High visibility with a 16 mm LED display
• Alarm outputs enable prompt fault detection
• Quick sampling period of 250 ms ensures responsive control
• IP66 rating provides robust protection against environmental elements

Applications

• Utilised in heating control systems for machinery
• Ideal for temperature monitoring in industrial ovens
• Employed in HVAC systems for accurate climate control
• Integrated into manufacturing line process control

How do I install the controller?

Installation involves inserting the device into a panel cutout and securing it with the included mounting adapter.

Can it work with different thermocouple types?

Yes, it is compatible with a range of thermocouple inputs, including types K, J, T, R, and S for versatile temperature sensing.

Brand	Omron
Output Type	SSR, Solid State Relay, Logic
Supply Voltage	24 V ac/dc
Size	48 x 48mm
Number of Outputs	1
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+55°C
Temperature Range	-10 → +55 °C
Control Type	ON/OFF, PID, 2-PID Controller
Communication Module Available	Yes
Display Type	LED
IP Rating	IP00, IP20, IP66
Series	E5CB
Range	Omron E5CB
Mounting Type	Panel Mount
Additional Functionality	ON/OFF
Input Type	Thermocouple
Display Colour	Red/Green
Panel Depth	60mm
Termination Type	Screw terminal block
