Omron E5CB-R1PD 24VAC/DC, E5CB Panel Mount Controller, 48 x 48mm 2 Input, 3 Output Relay, 24 V ac/dc Supply Voltage ON/OFF, PID, 2-PID

Part Number : E5CB-R1PD 24VAC/DC

Availability: Sold out

Detailed Description
Specifications

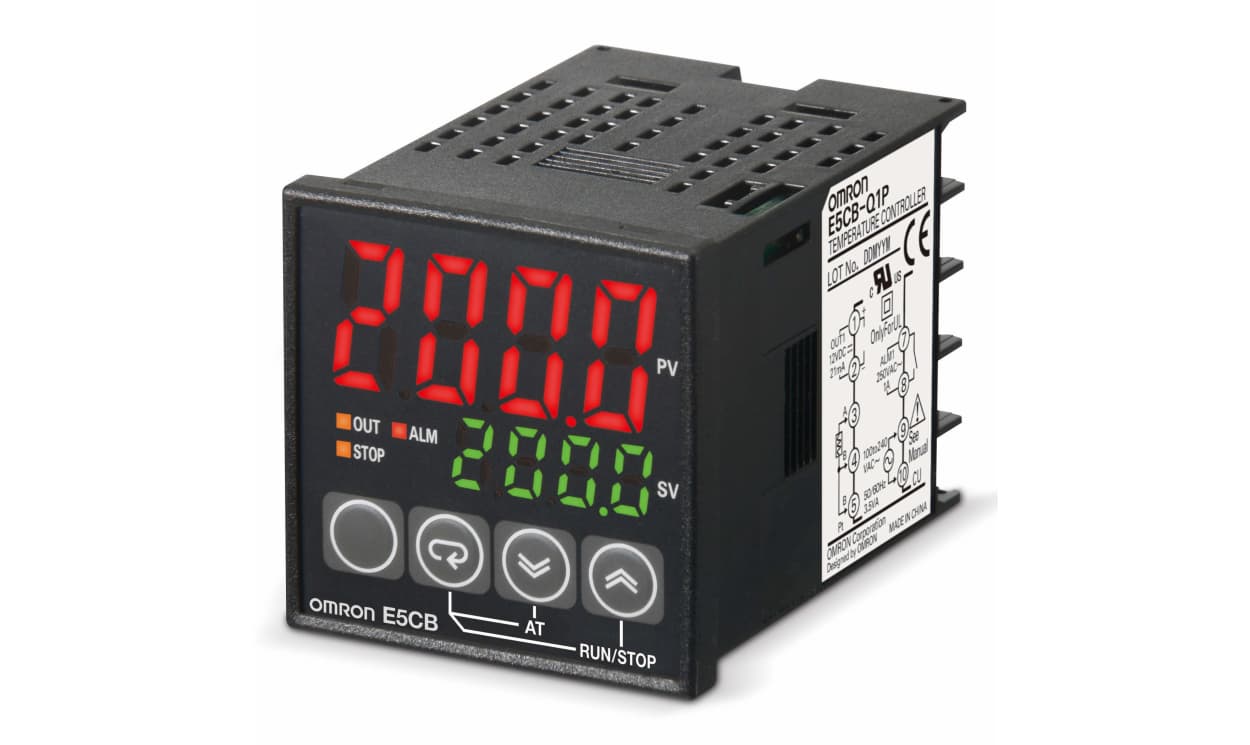

Omron E5CB Series Controller, 48 x 48mm size, 3 Relay Outputs - E5CB-R1PD 24VAC/DC

This controller is an efficient temperature control device designed for precise industrial applications. The compact panel mount temperature controller measures 48 x 48 mm and effectively operates on a supply voltage of 24V AC/DC, suitable for various temperature monitoring systems. With advanced ON/OFF and PID control features, it ensures optimal performance in demanding environments.

Features & Benefits

• Multi-line display enhances visibility with a character height of approximately 16mm
• Quick setup with fewer than 20 parameters for easy configuration
• Advanced sampling and loop update at 250ms for consistent accuracy
• IP66 rated design allows for reliable operation in harsh conditions
• Relay output provides flexible control for various requirements

Applications

• Utilised in temperature control for heating
• Ideal for industrial equipment requiring precise temperature regulation
• Suitable for automation systems needing accurate temperature readings
• Effective for laboratory environments monitoring varying temperatures

How does the controller ensure accurate temperature readings in fluctuating environments?

It features indication accuracy of ±0.5% of the process value for both thermocouple and PT100 inputs, providing reliable and precise measurement performance across various conditions.

What variety of control methods can be used to operate this device?

The device can operate in ON/OFF or PID control modes, allowing flexibility depending on the specific requirements of the application.

What kind of outputs does the controller provide for alarm and control functions?

It is equipped with a relay output rated for 250VAC, 3A, and voltage output for driving SSR, making it a versatile choice for diverse automation needs.

Brand	Omron
Output Type	Relay
Supply Voltage	24 V ac/dc
Size	48 x 48mm
Number of Inputs	2
Number of Outputs	3
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+55°C
Temperature Range	-200 → +2300 °C
Control Type	ON/OFF, PID, 2-PID Controller
Display Type	Multi-Line
IP Rating	IP00, IP20, IP66
Input Type	Platinum Resistance Thermometer ; PT100
Series	E5CB
Mounting Type	Panel Mount
Display Colour	Green, Red
Panel Depth	60mm
Termination Type	Screw terminal block
