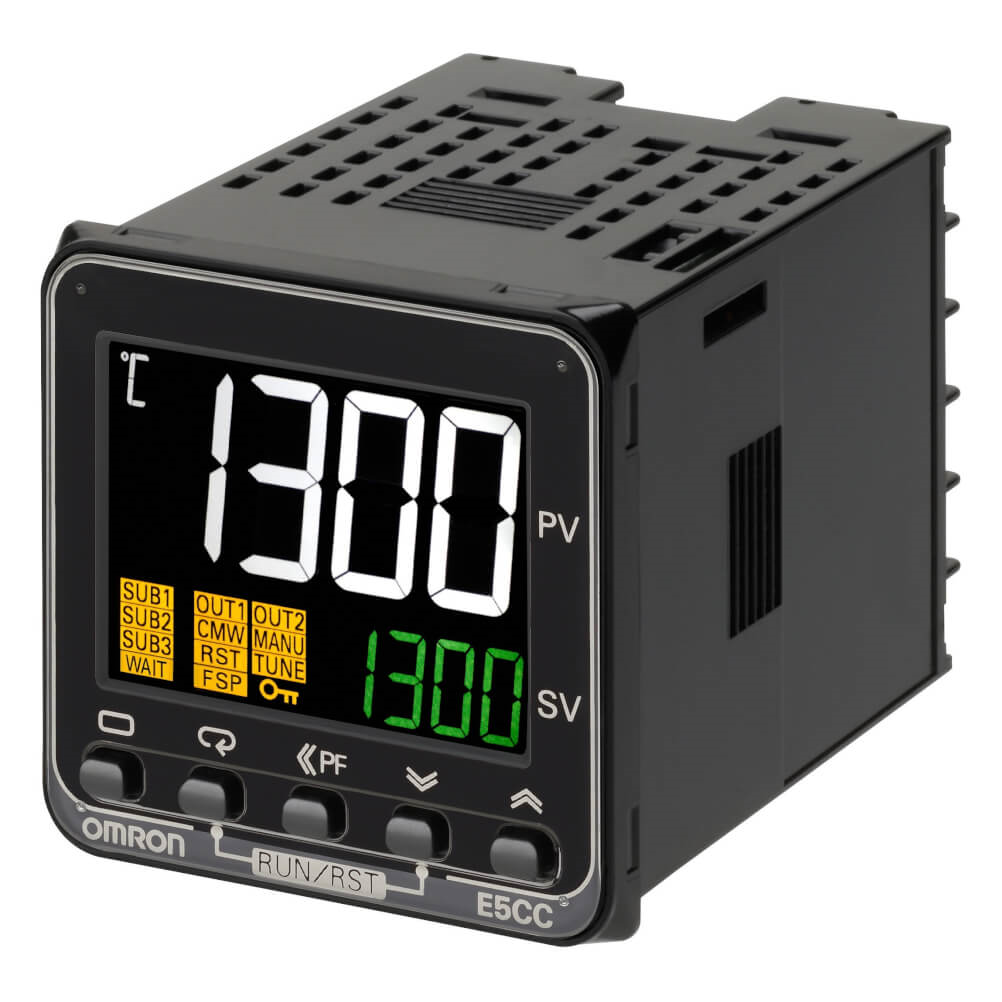

Omron E5CC-CX3D5M-000, E5CC Panel Mount PID Temperature Controller, 48 x 48mm, 1 Output Linear, Analogue, 4-20 mA, 24 V ac/dc Supply

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron E5CC-CX3D5M-000, E5CC Panel Mount PID Temperature Controller, 48 x 48mm, 1 Output Linear, Analogue, 4-20 mA, 24 V ac/dc Supply

Name: Omron E5CC-CX3D5M-000, E5CC Panel Mount PID Temperature Controller, 48 x 48mm, 1 Output Linear, Analogue, 4-20 mA, 24 V ac/dc Supply
Brand: OMRON
SKU: E5CC-CX3D5M-000
Availability: OutOfStock

Part Number : E5CC-CX3D5M-000

Temperature controller, 1/16 DIN (48x48 mm), 0/4-20 mA current output, 3 AUX, 24 VAC/DC

Availability: Sold out

Detailed Description
Specifications
Features

Omron E5CC Series PID Temperature Controller, Linear/Analogue/4 to 20 mA Output, Universal/Platinum Resistance Thermometer/PT100/Thermocouple/Analogue Input - E5CC-CX3D5M-000

This PID temperature controller is designed for precise industrial temperature control, ensuring stability and accuracy across various applications. Its versatile input options and efficient control mechanisms make it essential for automation and monitoring in different industries, promising consistent operation.

Features & Benefits

• Universal temperature input for enhanced compatibility
• Supports both ON/OFF and PID control for a variety of applications
• Includes a 4 to 20 mA analogue temperature output for system integration
• Easy panel mounting facilitates convenient installation
• Compatible with PT100 thermocouples for broader usage

Applications

• Industrial automation systems for process control
• Temperature monitoring in manufacturing environments
• HVAC systems for accurate climate management
• Laboratory settings for precise temperature control
• Food processing for quality assurance

How can I ensure accurate readings when using the controller?

Calibrate the controller as recommended by the manufacturer to improve measurement accuracy.

Is it easy to integrate with existing control systems?

Yes, its 4 to 20 mA output allows straightforward integration into most standard control systems.

What types of sensors are compatible with this controller?

It accommodates various inputs, including PT100 and thermocouples.

Can the controller function in extreme environments?

It operates effectively within a range of -10°C to +55°C, suitable for common industrial conditions.

What type of load can be controlled using this device?

It can manage a single output load, allowing for precise temperature process control.

Omron - E5GC, E5CC, E5EC, E5AC, E5DC, E5CN & E5CB Ranges

Brand	Omron
Output Type	Linear, Analogue, 4-20 mA
Supply Voltage	24 V ac/dc
Size	48 x 48mm
Number of Outputs	1
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+55°C
Temperature Range	-10 → +55 °C
Control Type	ON/OFF, PID, 2-PID Controller
Display Type	PV
IP Rating	IP00, IP20, IP66
Series	E5CC
Range	+10 → +70 °C, +115 → +165 °C, +140 → +260 °C, +60 → +120 °C
Input Type	Universal, Platinum Resistance Thermometer, PT100, Thermocouple, Analogue
Mounting Type	Panel Mount
Termination Type	Screw terminal block
Display Colour	Black
Panel Depth	60mm

Temperature controller, 1/16 DIN (48x48 mm), 0/4-20 mA current output, 3 AUX, 24 VAC/DC
