OMRON E5CC-QQ3D5M-000 | E5CC PID Temperature Controller | 48x48 mm, SSR Output, 20.4-26.4 V

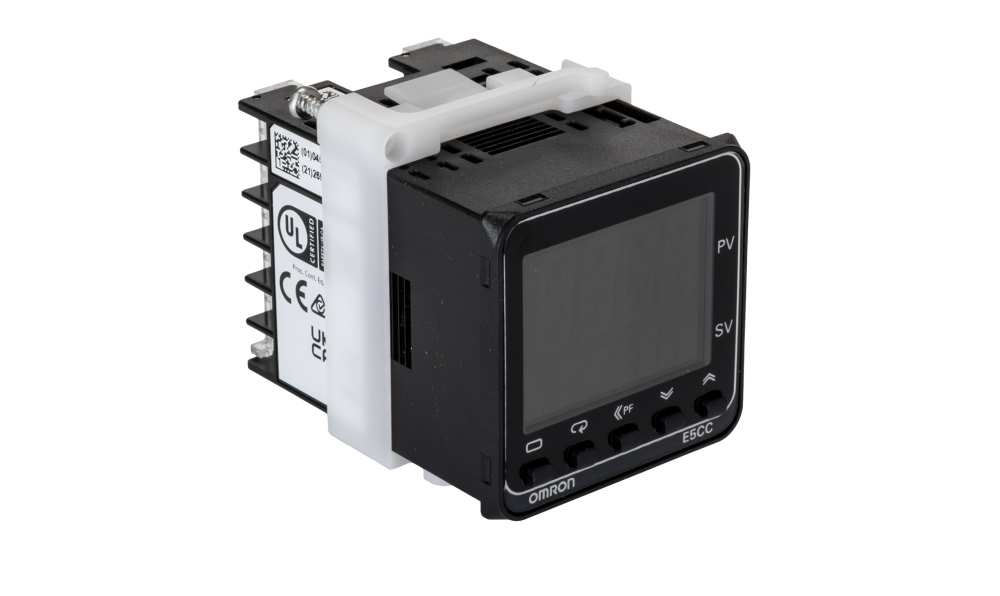

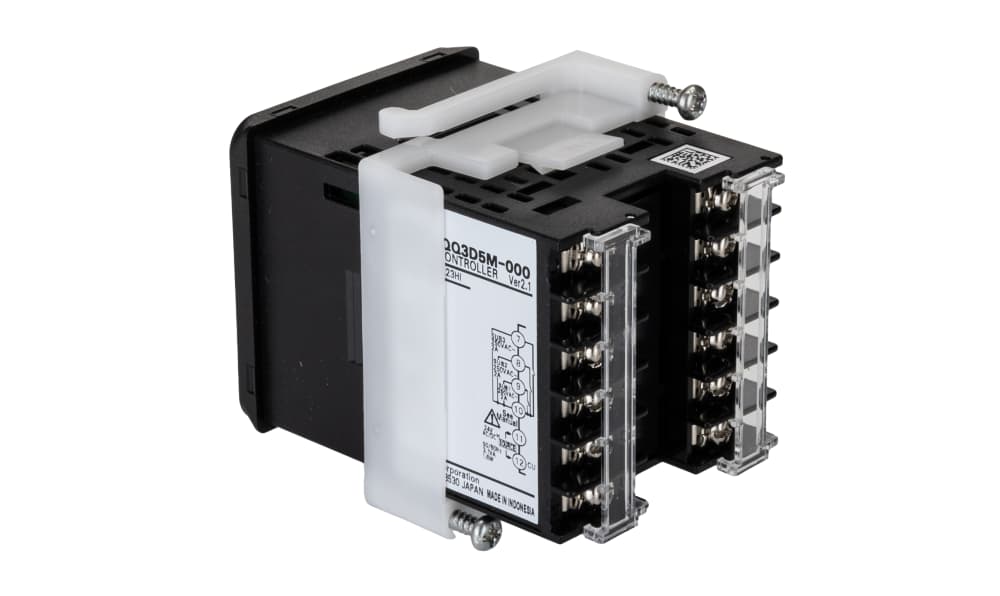

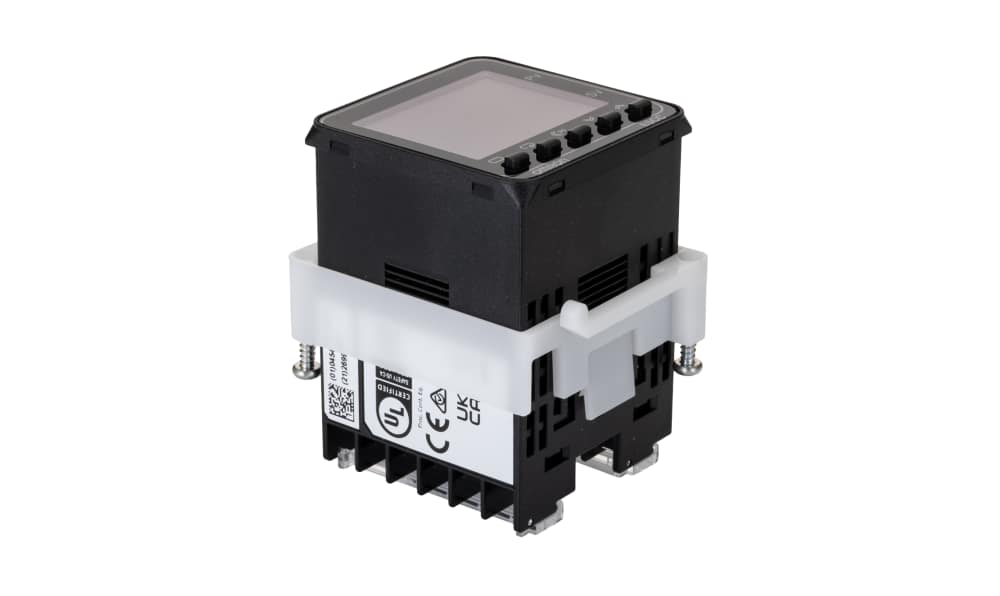

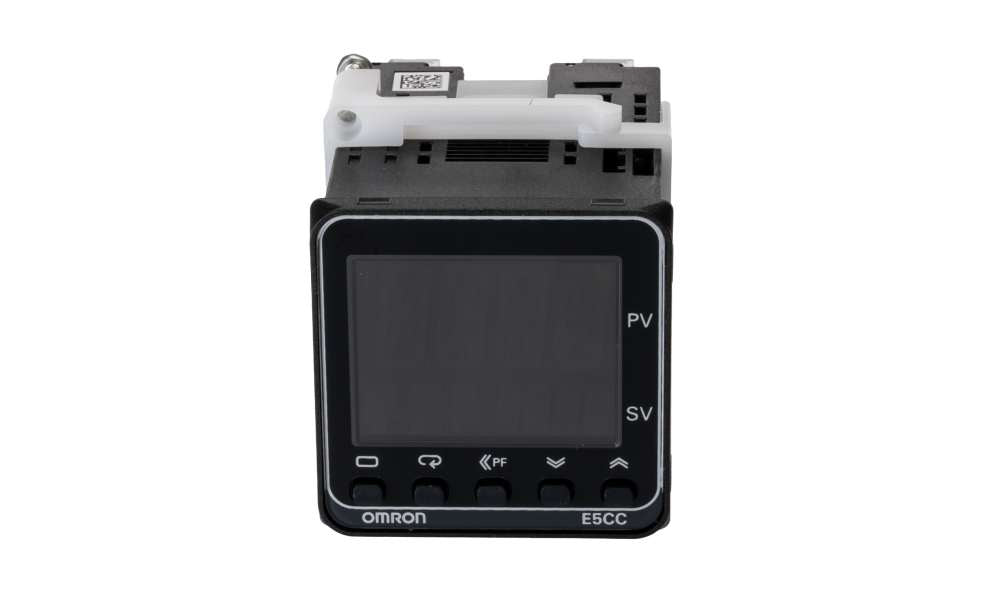

Name: OMRON E5CC-QQ3D5M-000 | E5CC PID Temperature Controller | 48x48 mm, SSR Output, 20.4-26.4 V
Brand: OMRON
SKU: E5CC-QQ3D5M-000
Availability: InStock

Part Number : E5CC-QQ3D5M-000

With an SSR (logic) output and a 20.4-26.4 V supply, the OMRON E5CC-QQ3D5M-000 is an E5CC PID Temperature Controller in a 48 x 48 mm format. Part E5CC-QQ3D5M-000 takes universal input (thermocouple, Pt100, analogue) and offers ON/OFF and PID control.

2 outputs
Depth behind panel: 60 mm
Connections: screw
Output type: SSR (logic)
Power supply: 20.4-26.4 V
Ambient operating range: -10 to +55 °C

Availability: low stock

Detailed Description
Specifications
Downloads

Omron E5CC Series PID Temperature Controller, 20.4 to 26.4V Supply Voltage, Panel Mount - E5CC-QQ3D5M-000

This PID temperature controller offers precision for industrial applications. With a compact 48x48mm design and dual outputs, it effectively employs ON/OFF and PID control methods. The operating temperature range is from -10 to +55°C, making it suitable for a variety of temperature management needs.

Features & Benefits

• Universal input type supports various sensors
• Solid state relay output enables quick response times
• Panel mount design facilitates installation in control panels
• Dual outputs allow for multi-zone control
• Operational temperature range accommodates diverse environments
• Screw termination type ensures secure connections

Applications

• Suitable for automation systems
• Effective for temperature regulation in food processing
• Utilised in HVAC systems for precise heating control
• Employed in plastics manufacturing
• Compatible with laboratory equipment for accurate measurements

Can it handle various sensor types for temperature measurement?

Yes, it supports universal input types like thermocouples and PT100.

Will it maintain performance under extreme temperatures?

Yes, it operates reliably from -10 to +55°C.

Is it easy to install in existing control systems?

Yes, its panel mount design simplifies integration into existing setups.

Omron - E5GC, E5CC, E5EC, E5AC, E5DC, E5CN & E5CB Ranges

Brand	Omron
Output Type	SSR, Solid State Relay, Logic
Supply Voltage	20.4 → 26.4 V
Size	48 x 48mm
Number of Outputs	2
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+55°C
Temperature Range	-10 → +55 °C
Control Type	ON/OFF, PID Controller
Range	+10 → +70 °C, +115 → +165 °C, +140 → +260 °C, +60 → +120 °C
Series	E5CC
Additional Functionality	ON/OFF, PID Controller
Mounting Type	Panel Mount
Input Type	Universal, Platinum Resistance Thermometer, PT100, Thermocouple, Analogue
Panel Depth	60mm
Termination Type	Screw

OMRON E5CC-QQ3D5M-000 | E5CC PID Temperature Controller | 48x48 mm, SSR Output, 20.4-26.4 V

DOWNLOAD CATALOG

E5CC-QQ3D5M-000 Guide - E5CC Series A700000012598328

E5CC-QQ3D5M-000 Brochure - Digital Temperature Controllers A700000012598369

E5CC-QQ3D5M-000 Instruction Sheet - E5CC Series A700000012598791

E5CC-QQ3D5M-000 Manual - Digital Temperature Controllers A700000012598961
