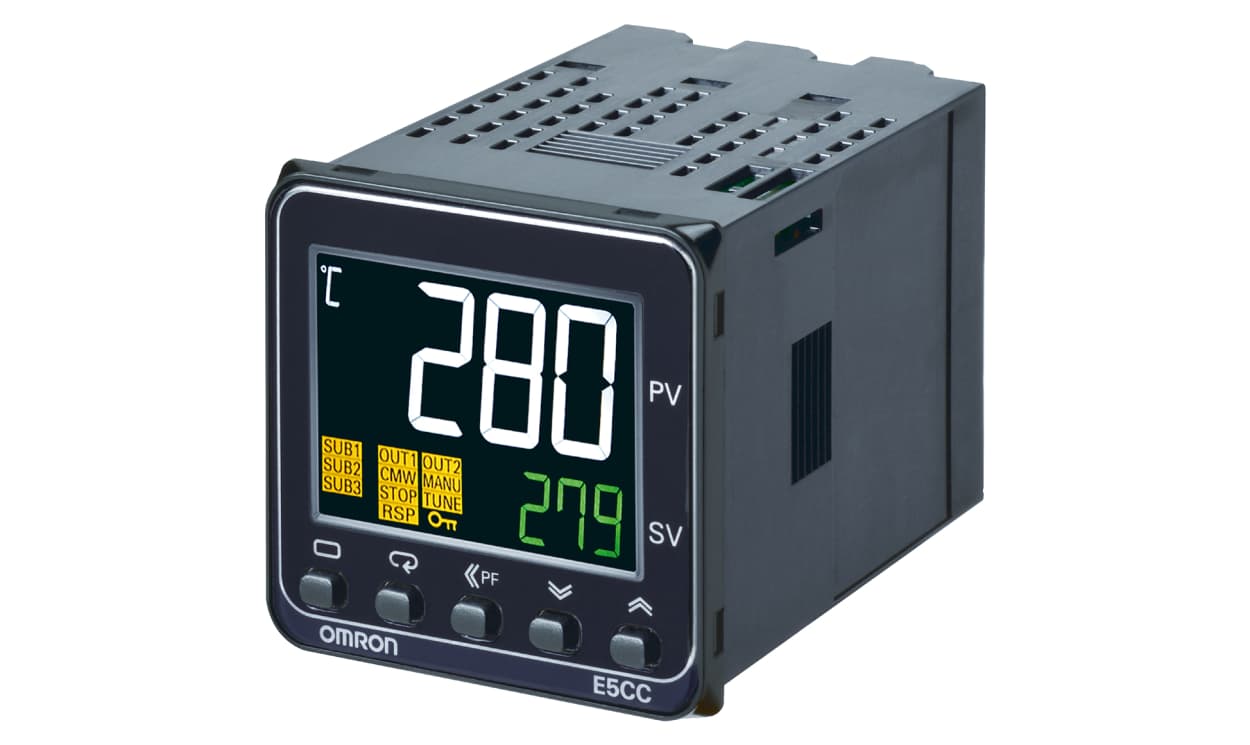

Omron E5CC-RX2DBM-000, E5CC Panel Mount PID Temperature Controller, 96 x 96mm 3 Input, 1 Output Relay, 24 V ac/dc Supply Voltage ON/OFF,

Part Number : E5CC-RX2DBM-000

Availability: Sold out

Detailed Description
Specifications

Omron E5CC Series PID Temperature Controller, Relay Output, 24V AC/DC Supply Voltage - E5CC-RX2DBM-000

This PID temperature controller is engineered to offer precise temperature regulation across various industrial applications. With multiple input options and a broad thermocouple temperature range, it supports diverse needs with reliability and accuracy. It is suitable for professionals in automation and mechanical fields, ensuring effective temperature management.

Features & Benefits

• Offers ON/OFF and PID control modes for operational flexibility
• Compatible with multiple thermocouple types for varied input configurations
• Features a clear 11-segment digital display for improved visibility and usability
• Designed for panel mounting, simplifying installation in different environments
• IP66 rating provides protection against dust and moisture
• Push-In terminal blocks enable quick and secure wiring connections

Applications

• Facilitates precise temperature control in manufacturing processes
• Ideal for laboratory equipment requiring accurate thermal regulation
• Utilised in HVAC systems to monitor temperature reliably
• Essential in food processing to comply with safety standards

Can various thermocouple types be connected simultaneously?

Yes, the controller supports multiple thermocouple types, but only one can be monitored at a time.

How do I calibrate this device for accurate readings?

Calibration can be executed through the settings menu, following the guidelines in the provided user manual.

Is it compatible with existing panel layouts?

Its compact design allows for straightforward integration into standard panel layouts with minimal modifications.

Can this controller handle fluctuations in supply voltage?

The device is built to function effectively within its specified supply voltage range, ensuring stability during fluctuations.

Omron - E5GC, E5CC, E5EC, E5AC, E5DC, E5CN & E5CB Ranges

Brand	Omron
Output Type	Relay
Supply Voltage	24 V ac/dc
Size	96 x 96mm
Number of Inputs	3
Number of Outputs	1
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+55°C
Temperature Range	+100 → +1800 (Type B Thermocouple) °C, 0 → +1300 (Type PLII Thermocouple) °C, 0 → +1700 (Type R Thermocouple) °C, 0 → +1700 (Type S Thermocouple) °C, 0 → +2300 (Type W Thermocouple) °C, -100 → +850 (Type J Thermocouple) °C, -100 → +850 (Type L Thermocouple) °C, -199.9 → +400 (Type T Thermocouple) °C, -199.9 → +400 (Type U Thermocouple) °C, -199.9 → +500 (JPt100) °C, -200 → +1300 (Type K Thermocouple ) °C, -200 → +1300 (Type N Thermocouple) °C, -200 → +850 (Pt100) °C
Control Type	ON/OFF, PID, 2-PID Controller
Display Type	11-Segment Digital Display
IP Rating	IP00, IP20, IP66
Series	E5CC
Additional Functionality	ON/OFF, PID Controller
Range	Omron E5CC
Mounting Type	Panel Mount
Input Type	Universal, Platinum Resistance Thermometer, PT100, Thermocouple, Analogue
Display Colour	White
Termination Type	Push-In plus terminal blocks
