Omron E5CC-RX3A5M-000, E5CC Panel Mount PID Temperature Controller, 96 x 96mm 1 Input, 1 Output Relay, 100 → 240 V ac Supply Voltage

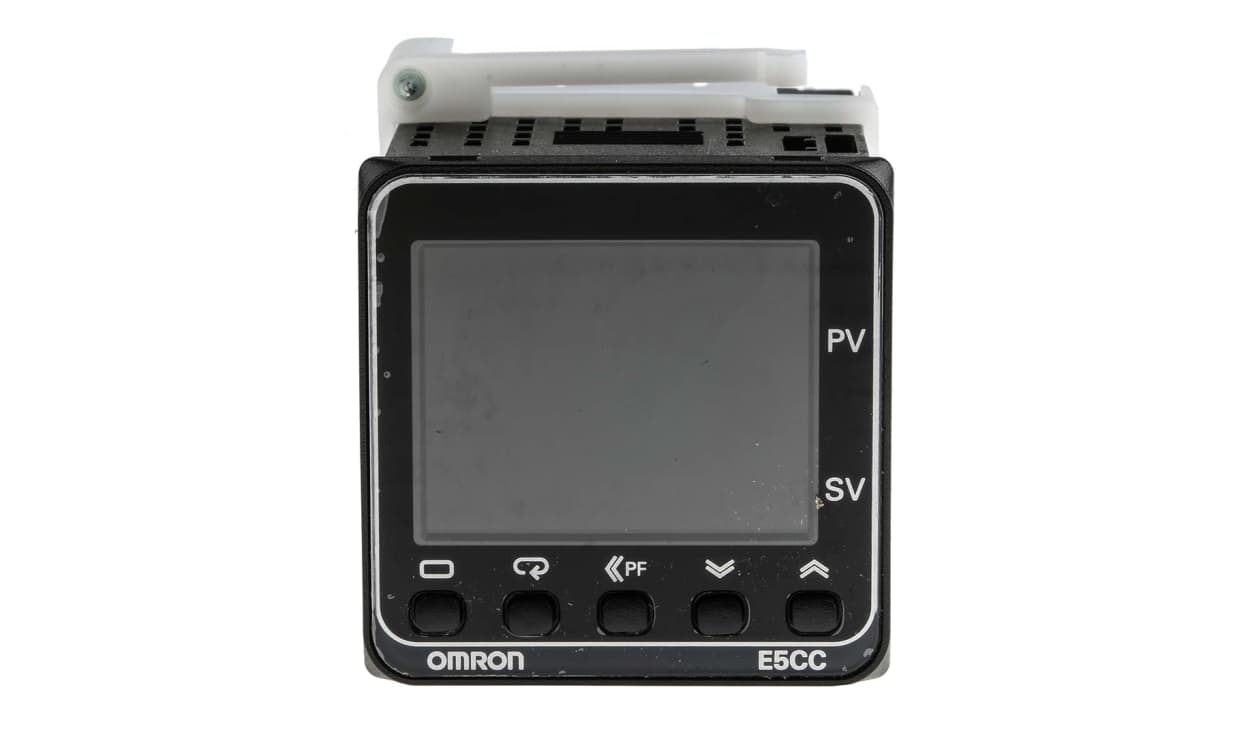

Name: Omron E5CC-RX3A5M-000, E5CC Panel Mount PID Temperature Controller, 96 x 96mm 1 Input, 1 Output Relay, 100 → 240 V ac Supply Voltage
Brand: OMRON
SKU: E5CC-RX3A5M-000
Availability: OutOfStock

Part Number : E5CC-RX3A5M-000

Temperature controller, 1/16 DIN (48x48 mm), 1 Relay output, 3 AUX, 100-240 VAC

Availability: Sold out

Detailed Description
Specifications
Features

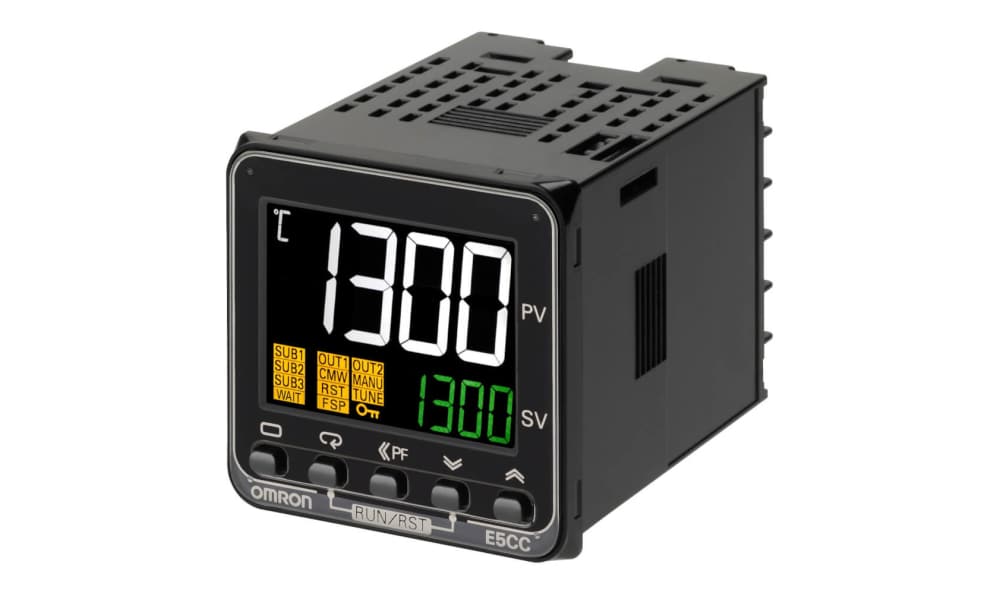

E5CC Digital Temperature Controller

Omron’s E5CC range of temperature controllers are a premium PID based controller that support a wide variety of applications. Covering a comprehensive array of sensor inputs including a universal input, Thermocouple, PT as well as Analogue current/voltage inputs. The E5CC range of temperature controllers offer various configurations to exactly suit your program and application requirements for a reliable and easy to use system.

The controller’s compact 48 x 48 mm unit is an industry standard size and can fit in to most typical system units for a fast and effortless installation. Featuring a large white PV display, the E5CC’s large 15.2 mm LED characters provide increased visibility in any application.

PID control within the E5CC range can be set to separately control heating and cooling processes. This functionality allows for programming to control different systems with response characteristics specified to each application. Auto-tuning of PID control functions allow initial parameters to be configured quickly and easily for smooth fast installation and commissioning. The E5CC range also features standard ON/OFF control for more basic applications.

Features and Benefits

• Large white LCD display
• 15.2 mm characters
• Dual PV/SV 4-digit display
• 50 ms high-speed sampling
• Short 60 mm housing case
• Easy connection to PLC with communications that require no programming
• Component communications can be used to link temperature controllers to each other
• Easy set up with CX-Thermo software (Windows XP, 7) without additional power supply via USB conversion cable

Approvals

OMRON PID Temperature Controller, LCD Display, 50ms Sample Speed - E5CC Series - E5CC-RX3A5M-000

Pick this PID temperature controller from OMRON when the job calls for careful management of sensitive environments. It combines temperature measurement capabilities with a single relay output that controls a connected device. This can then heat or cool your space to keep it consistently at your preset level. The unit pairs with many different sensor types, including universal input thermocouples, platinum resistance thermometers and infrared sensors. As a result, it's capable of measuring a vast array of temperatures from -200°C up to +2300°C. You'll find this controller's a great shout for monitoring and maintaining extreme conditions such as in kilns or freezers.

Features & Benefits

• Removable terminal block makes it a breeze to wire up for simple installation and maintenance
• Needs no special software to connect to a PLC, giving you easy oversight and control
• Adjustable screw termination helps you make robust electrical connections
• LCD screen is a cinch to read, with easily visible characters of 15.2mm in size

Applications

• Food and beverage manufacture
• Pharmaceutical production
• Warehousing

What's the benefit of this product's high-speed sampling?

This device's high sample speed of 50ms means it takes measurements almost constantly and responds rapidly to changes. As a result, you can trust you're getting accurate and up-to-date temperature readings.

Omron - E5GC, E5CC, E5EC, E5AC, E5DC, E5CN & E5CB Ranges

Brand	Omron
Output Type	Relay
Supply Voltage	100 → 240 V ac
Size	96 x 96mm
Number of Inputs	1
Number of Outputs	1
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+55°C
Temperature Range	-10 → +55 °C
Control Type	ON/OFF, PID, 2-PID Controller
Display Type	4-Digit Display
Additional Functionality	ON/OFF, PID
Range	E5
Series	E5CC
Mounting Type	Panel Mount
Input Type	Universal, Platinum Resistance Thermometer, PT100, Thermocouple, Analogue
Termination Type	Screw terminal block
Panel Depth	60mm

Temperature controller, 1/16 DIN (48x48 mm), 1 Relay output, 3 AUX, 100-240 VAC
