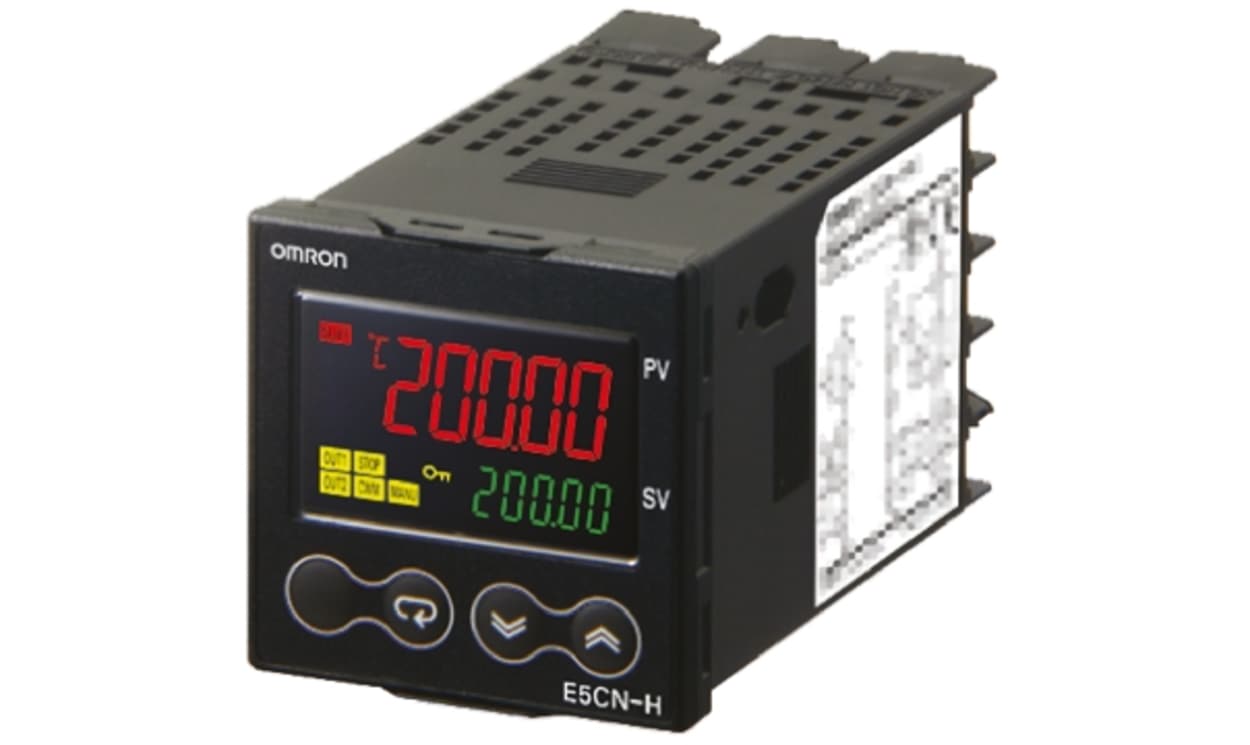

Name: Omron E5CN-HTR2MD-500 24VAC/DC, E5CN Panel Mount PID Temperature Controller, 48 x 48mm, 2 Output Relay, 24 V ac/dc Supply Voltage ON/OFF, PID,
Brand: OMRON
SKU: E5CN-HTR2MD-500 24VAC/DC
Availability: OutOfStock

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron E5CN-HTR2MD-500 24VAC/DC, E5CN Panel Mount PID Temperature Controller, 48 x 48mm, 2 Output Relay, 24 V ac/dc Supply Voltage ON/OFF, PID,

Part Number : E5CN-HTR2MD-500 24VAC/DC

Availability: Sold out

Detailed Description
Specifications

E5CN-HT 1/16 DIN Temperature Controllers

Up to 8 programmed patterns can be set with up to 32 segments (steps) each
High-resolution display with 5 digits/0.01°C display
High-speed sampling cycle of 60 ms.
Thermocouple/Pt input: ±0.1% of PV
Analogue input: ±0.1% FS
Universal inputs (thermocouple, PT, or analog input) to handle various sensors with one controller.
A PV/SV-status display function can be set to automatically alternatebetween displaying the status of the Temperature Controller (auto/manual RUN/RESET, and alarms) and the PV or SV.
Flexible contact outputs with logic operations (AND, OR, and delays) set from the Support Software (CX-Thermo version 4.3).
Preventive maintenance for relays in the temperature controller using a control output ON/OFF counter

Omron E5N-H Range

Brand	Omron
Output Type	Relay
Supply Voltage	24 V ac/dc
Size	48 x 48mm
Number of Outputs	2
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+55°C
Control Type	ON/OFF, PID, 2-PID Controller
Input Type	Universal, Platinum Resistance Thermometer, PT100, Thermocouple, Analogue
Series	E5CN
Range	0 → 10 V, 0 → 20 mA, -200 → +2300 (Thermocouple) °C, -200 → +850 (Platinum Resistance Thermometer) °C
Mounting Type	Panel Mount
Termination Type	Screw terminal block
Panel Depth	78mm
Display Colour	Red/Green/Yellow
