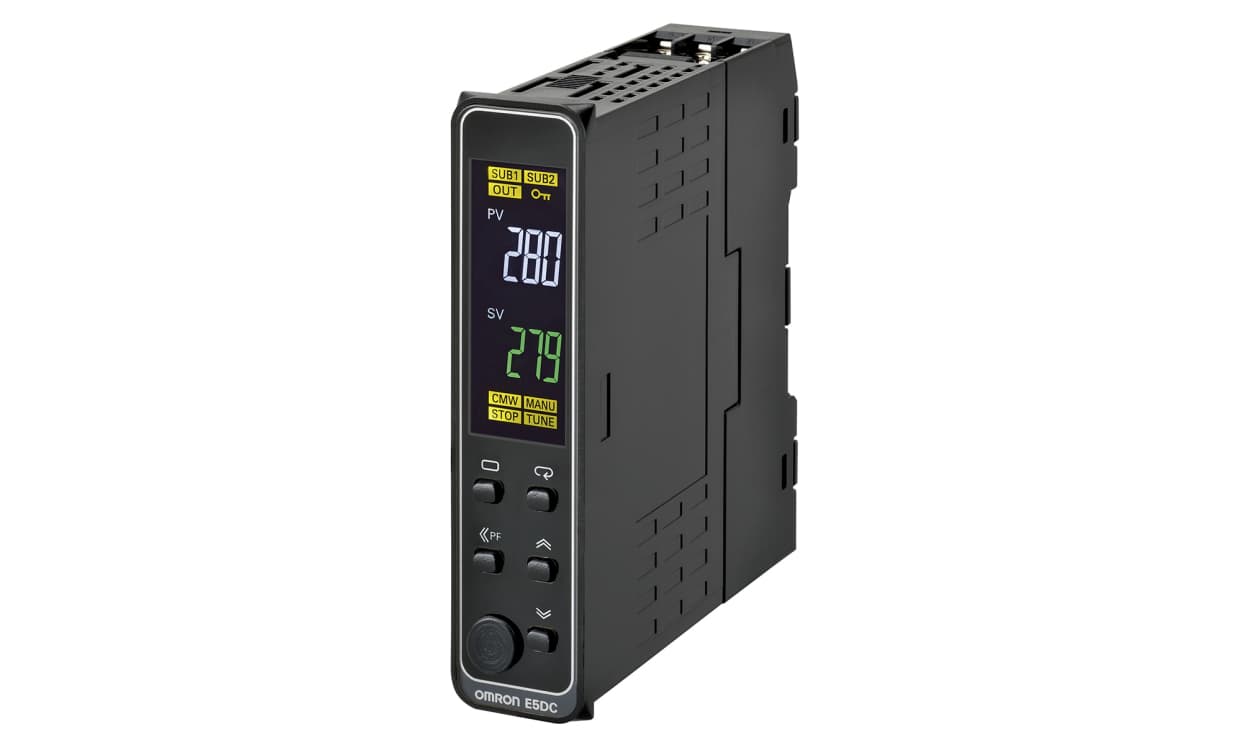

Name: Omron E5DC-RX2ABM-000, E5DC DIN Rail, Panel Mount PID Temperature Controller, 48 x 48mm 1 Input, 2 Output Relay, 100 → 240 V ac Supply
Brand: OMRON
SKU: E5DC-RX2ABM-000
Availability: OutOfStock

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron E5DC-RX2ABM-000, E5DC DIN Rail, Panel Mount PID Temperature Controller, 48 x 48mm 1 Input, 2 Output Relay, 100 → 240 V ac Supply

Part Number : E5DC-RX2ABM-000

Availability: Sold out

Detailed Description
Specifications

Omron E5DC Series PID Temperature Controller, 48 x 48mm size, 100 → 240V AC Supply Voltage - E5DC-RX2ABM-000

This PID temperature controller is designed to provide precise temperature regulation in various industrial applications. With a compact size of 48 x 48 mm, this device fits seamlessly into existing control systems, making it suitable for both DIN rail and panel mounting. The controller operates effectively with a supply voltage of 100 to 240 V AC, maintaining outstanding performance across a temperature range of -10 to +55 °C.

Features & Benefits

• Supports universal input types for versatile compatibility
• Relay output ensures reliable operation in diverse settings
• Push-in termination simplifies wiring and installation
• Compact design maximises space utilisation in panels

Applications

• Used in HVAC systems to maintain desired temperatures
• Suitable for process industries requiring accurate thermal regulation
• Effective in manufacturing processes needing consistent temperature control
• Ideal for controlling ovens and heat exchangers efficiently

What types of sensors are compatible with this temperature controller?

It is compatible with various input types, including universal inputs, platinum resistance thermometers (PT100), and thermocouples, enabling flexibility in sensor usage.

How does this device ensure precise temperature control?

Utilising both ON/OFF and PID control methods allows for high accuracy in maintaining the set temperature, adjusting continuously based on the measured inputs.

What is the significance of the IP20 rating?

The IP20 rating indicates protection against solid objects larger than 12mm, suitable for indoor use where dust exposure is minimal, ensuring longevity and performance in typical industrial settings.

Brand	Omron
Output Type	Relay
Supply Voltage	100 → 240 V ac
Size	48 x 48mm
Number of Inputs	1
Number of Outputs	2
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+55°C
Temperature Range	-10 → +55 °C
Control Type	ON/OFF, PID, 2-PID Controller
Communication Module Available	No
Display Type	Segment
IP Rating	IP00, IP20
Series	E5DC
Mounting Type	DIN Rail, Panel Mount
Input Type	Universal, Platinum Resistance Thermometer, PT100, Thermocouple, Analogue
Additional Functionality	PID Controller
Termination Type	Push In
