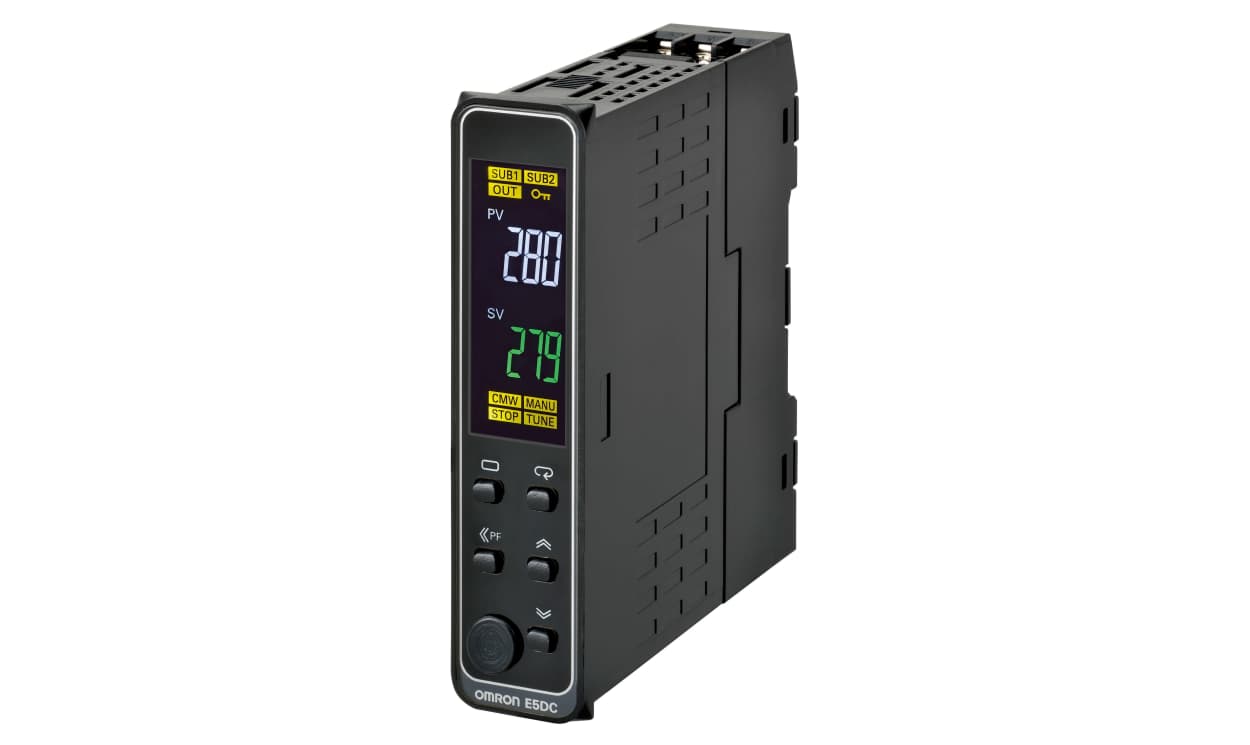

Name: Omron E5DC-RX2DSM-000, E5DC DIN Rail, Panel Mount PID Temperature Controller, 48 x 48mm, 2 Output Relay, 24 V ac/dc Supply Voltage
Brand: OMRON
SKU: E5DC-RX2DSM-000
Availability: OutOfStock

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron E5DC-RX2DSM-000, E5DC DIN Rail, Panel Mount PID Temperature Controller, 48 x 48mm, 2 Output Relay, 24 V ac/dc Supply Voltage

Part Number : E5DC-RX2DSM-000

Availability: Sold out

Detailed Description
Specifications

Omron E5DC Series PID Temperature Controller, Relay Output, Universal/Platinum Resistance Thermometer/PT100/Thermocouple/Analogue Input - E5DC-RX2DSM-000

This PID temperature controller is designed for precise temperature management in various industrial settings. Its compact dimensions of 22.5mm facilitate easy installation on DIN rails or for panel mounting. Capable of operating in a temperature range from -199.9°C to +2300°C, depending on the thermocouple type, this controller is well-suited for sectors that demand exact temperature regulation. The device's relay output ensures dependable operation, making it ideal for automation environments.

Features & Benefits

• Universal input type provides flexibility for various sensors
• Supports ON/OFF and PID control for enhanced performance
• Compatible with multiple thermocouple types for diverse applications
• IP20 rated design offers protection in appropriate environments
• Features an 11-segment digital display for clear temperature readings
• Screw terminal block allows for secure and easy connections

Applications

• Temperature control in industrial ovens
• Monitoring heating processes in manufacturing
• Suitable for integration with platinum resistance thermometers
• Utilised in laboratories for precise thermal management

What types of sensors can be connected to this controller?

It accommodates various sensor types, including thermocouples and platinum resistance thermometers.

How can I ensure proper installation for optimal performance?

Meticulous adherence to terminal connections and input type specifications is essential for optimal operation.

What are the typical use cases for this device in automation?

It is effective in environments such as manufacturing lines and HVAC systems where temperature regulation is crucial.

Can this controller be mounted in different orientations?

Yes, it can be mounted for both DIN rail and panel installations, allowing for versatile layout options.

Do I need additional modules to enhance its functionality?

No communication modules are needed, as it is designed for comprehensive functionality upon installation.

Omron - E5GC, E5CC, E5EC, E5AC, E5DC, E5CN & E5CB Ranges

Brand	Omron
Output Type	Relay
Supply Voltage	24 V ac/dc
Size	48 x 48mm
Number of Outputs	2
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+50°C
Temperature Range	+100 → +1800 (Type B Thermocouple) °C, 0 → +1300 (Type PL II Thermocouple) °C, 0 → +1700 (R & S Thermocouples) °C, 0 → +2300 (Type W Thermocouple) °C, -100 → +850 (Type J Thermocouple) °C, -100 → +850 (Type L Thermocouple) °C, -199.9 → +500 (JPT100) °C, -200 → +1300 (Type K Thermocouple) °C, -200 → +1300 (Type N Thermocouple) °C, -200 → +400 (Type T Thermocouple) °C, -200 → +400 (Type U Thermocouple) °C, -200 → +600 (Type E Thermocouple) °C, -200 → +850 (PT100) °C
Control Type	ON/OFF, PID, 2-PID Controller
Communication Module Available	No
Display Type	11-Segment Digital Display
IP Rating	IP00, IP20
Mounting Type	DIN Rail, Panel Mount
Additional Functionality	ON/OFF
Range	Omron E5DC
Series	E5DC
Input Type	Universal, Platinum Resistance Thermometer, PT100, Thermocouple, Analogue
Termination Type	Screw terminal block
Panel Depth	85mm
