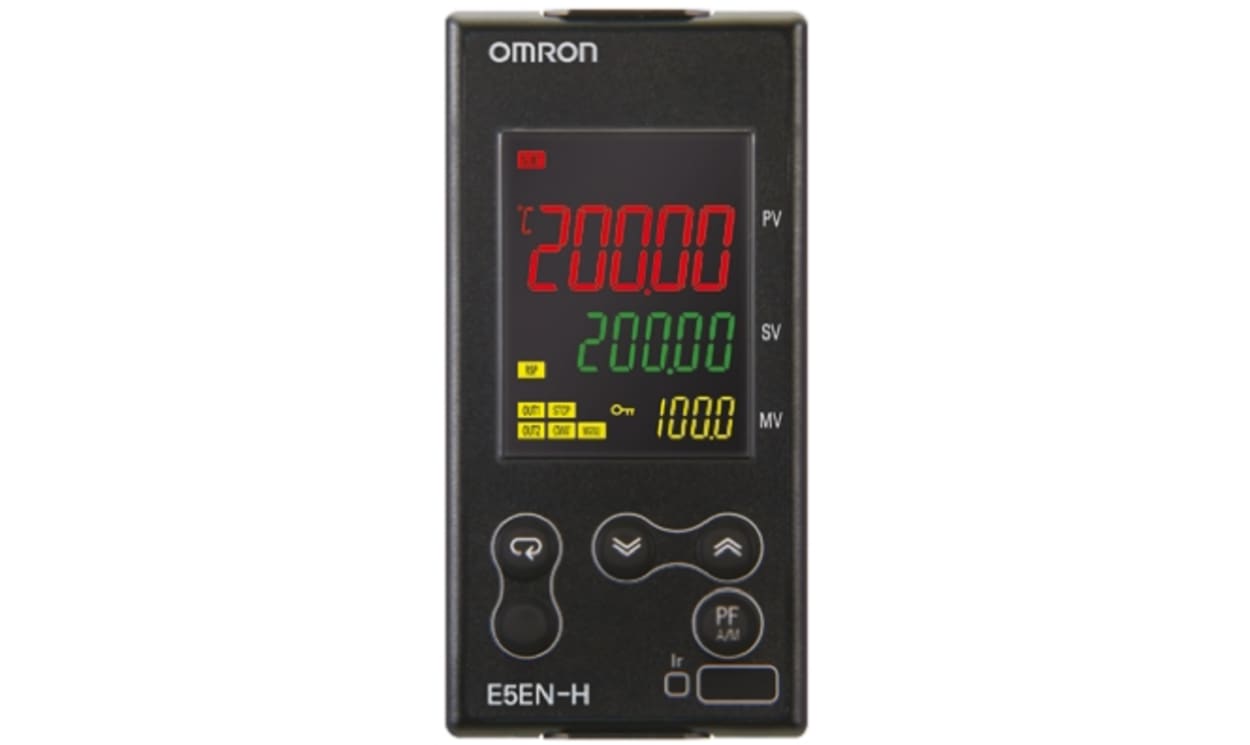

Name: Omron E5EN-HAA2HBMD-500 24VAC/DC, E5EN Panel Mount PID Temperature Controller, 48 x 48mm, 3 Output With additional card, 24 V ac/dc Supply Voltage
Brand: OMRON
SKU: E5EN-HAA2HBMD-500 24VAC/DC
Availability: OutOfStock

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron E5EN-HAA2HBMD-500 24VAC/DC, E5EN Panel Mount PID Temperature Controller, 48 x 48mm, 3 Output With additional card, 24 V ac/dc Supply Voltage

Part Number : E5EN-HAA2HBMD-500 24VAC/DC

Availability: Sold out

Detailed Description
Specifications

E5EN-H/E5AN-H 1/8 and 1/4 DIN Temperature Controllers

A high-performance controller with high resolution, high speed, and high input accuracy.In addition it has logic operations and preventive maintenance functions, and has an infrared port on the front panel.

High-resolution display with 5 digits/0.01°C display
High-speed sampling cycle of 60 ms.
Thermocouple/Pt input: ±0.1% of PV
Analogue input: ±0.1% FS
Universal inputs on all models (thermocouple, PT, analogue) to handle various sensors with one controller
PV/SV-status display function can be set to display the PV or SV and the status of the temperature controller (auto/manual, RUN/STOP and alarms)
Flexible contact outputs with logic operations (AND, OR, and delays) set from the Support Software (CX-Thermo Ver. 4.0)
Preventive maintenance for relays using a control output ON/OFF counter

Omron E5N-H Range

Brand	Omron
Output Type	With additional card
Supply Voltage	24 V ac/dc
Size	48 x 48mm
Number of Outputs	3
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+55°C
Control Type	ON/OFF, PID, 2-PID Controller
Mounting Type	Panel Mount
Range	0 → 10 V, 0 → 20 mA, -200 → +2300 (Thermocouple) °C, -200 → +850 (Platinum Resistance Thermometer) °C
Series	E5EN
Input Type	Universal, Platinum Resistance Thermometer, PT100, Thermocouple, Analogue
Panel Depth	78mm
Display Colour	Red/Green/Yellow
Termination Type	Screw terminal block
