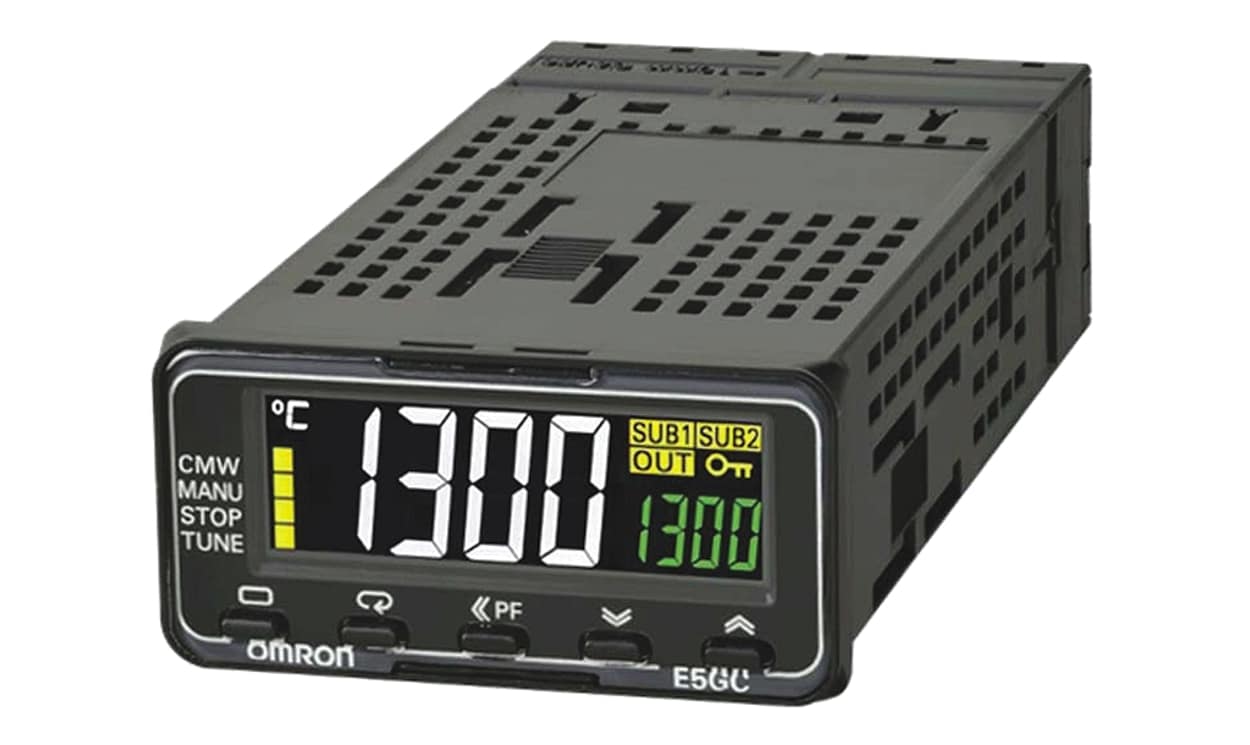

Name: Omron E5GC-RX2D6M-000, E5GC Panel Mount PID Temperature Controller, 48 x 48mm, 1 Output Relay, 24 V ac/dc Supply Voltage ON/OFF, PID,
Brand: OMRON
SKU: E5GC-RX2D6M-000
Availability: OutOfStock

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron E5GC-RX2D6M-000, E5GC Panel Mount PID Temperature Controller, 48 x 48mm, 1 Output Relay, 24 V ac/dc Supply Voltage ON/OFF, PID,

Part Number : E5GC-RX2D6M-000

Availability: Sold out

Detailed Description
Specifications

Omron E5GC Series PID Temperature Controller, -10 to +55°C Temperature Range, IP20/IP66 - E5GC-RX2D6M-000

This PID temperature controller is intended for precise temperature management across various industrial settings. Its compact design, suitable for panel mounting, measures 48x96x64mm and operates within a temperature range of -10 to +55°C. It is well-suited for controlling processes that require high accuracy and offers user-friendly operation with detailed feedback via a clear LCD temperature display.

Features & Benefits

• High-contrast LCD display improves visibility from a distance
• Supports ON/OFF and PID control for adaptable operation
• Relays ensure robust switching for heating and cooling systems
• Rapid 50ms sampling period delivers quick response times
• Multiple sensor inputs enhance versatility for diverse applications
• IP66 rated design resists moisture and simplifies cleaning

Applications

• Utilised in automation systems needing precise temperature regulation
• Ideal for environments where electronics testing is conducted
• Appropriate for industrial machinery requiring consistent thermal control
• Effective in food processing areas where temperature oversight is vital

Can it operate in humid environments?

Yes, it features an IP66 rated design for moisture resistance.

Will it provide alerts for temperature fluctuations?

It includes alarm functions for loop break and sensor failure.

Is it easy to set up and install?

Yes, it offers intuitive operation through software configuration without requiring a power supply.

Omron - E5GC, E5CC, E5EC, E5AC, E5DC, E5CN & E5CB Ranges

Brand	Omron
Output Type	Relay
Supply Voltage	24 V ac/dc
Size	48 x 48mm
Number of Outputs	1
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+55°C
Temperature Range	-10 → +55 °C
Control Type	ON/OFF, PID, 2-PID Controller
Display Type	LCD, Single Line
IP Rating	IP00, IP20, IP66
Range	Omron E5GC
Series	E5GC
Input Type	Thermocouple/Platinum Resistance Thermometer/Infrared Thermosensor/Analog Input
Additional Functionality	ON/OFF
Mounting Type	Panel Mount
Display Colour	White
Termination Type	Screw
Panel Depth	89mm
