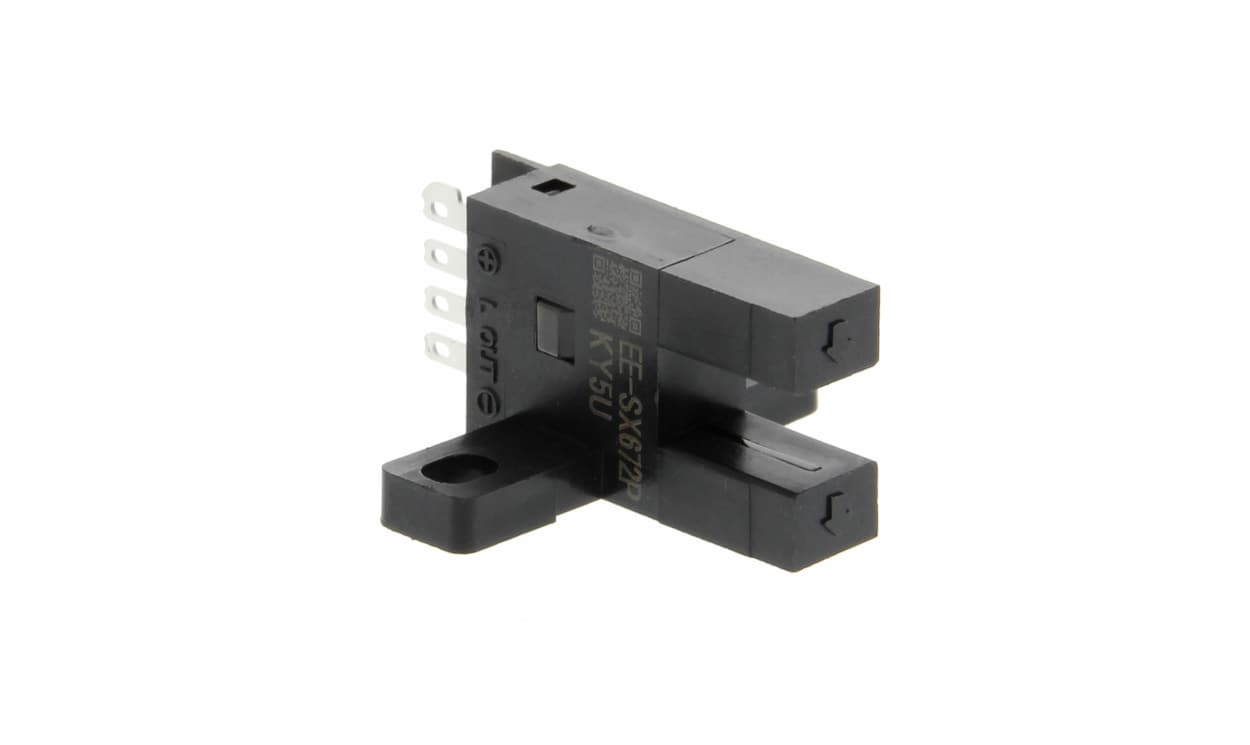

Omron EE-SX672P, Through Beam Photoelectric Sensor, Fork Sensor, 5 mm Detection Range

Part Number : EE-SX672P

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron Photoelectric Sensor, 5mm Detection Range, PNP Output - EE-SX672P

This photoelectric sensor is designed for effective detection in automation and control applications. Featuring a fork-style configuration and through beam detection technology, it ensures precise performance across various industrial settings. Its specifications make it a valuable component for users seeking efficient detection solutions.

Features & Benefits

• Provides a detection range of 5mm for improved accuracy
• Utilises PNP output for straightforward connectivity
• Includes a 4-pin connector for hassle-free installation
• Operates with a maximum voltage of 24V
• Incorporates an infrared light source for enhanced performance
• IP50 rating offers protection against dust ingress

Applications

• Suitable for non-contact object detection in packaging machinery
• Used in conveyor systems for reliable product monitoring
• Employed in assembly lines for precise counting and positioning
• Ideal for sorting systems requiring accurate measurements

How does the setup work for optimal performance?

The setup is simple: connect the 4-pin connector and align the sensor within the designated detection range.

Can this sensor operate in extreme temperatures?

Yes, it can function within a temperature range of -25°C to +55°C, making it suitable for various environments.

What type of load can be managed with this sensor?

It supports a maximum current of 12mA, suitable for controlling low-power devices.

Is this sensor compatible with various control systems?

Yes, it is compatible with most systems that support PNP output, enabling easy integration.

What maintenance does it require to ensure longevity?

Regular cleaning of the sensor lens will help maintain optimal functionality and detection performance over time.

Brand	Omron
Sensor Style	Fork
Detection Type	Through Beam
Detection Range	5 mm
Output Type	PNP
Electrical Connection	4 Pin Connector
Switching Mode	Light / Dark switching
Maximum DC Voltage	24V
Terminal Type	Connector
Light Source	Infrared
IP Rating	IP50
Maximum Current	12 mA
Maximum Operating Temperature	+55°C
Housing Material	PBT
Minimum Operating Temperature	-25°C
Series	EE-SX47/67
Standards Met	CE

Omron EE-SX672P, Through Beam Photoelectric Sensor, Fork Sensor, 5 mm Detection Range

DOWNLOAD CATALOG

EE-SX672P Photomicrosensor Data Book 0900766b8136f7d6

EE-SX672P Selection Guide - Photomicrosensor A700000012100532
