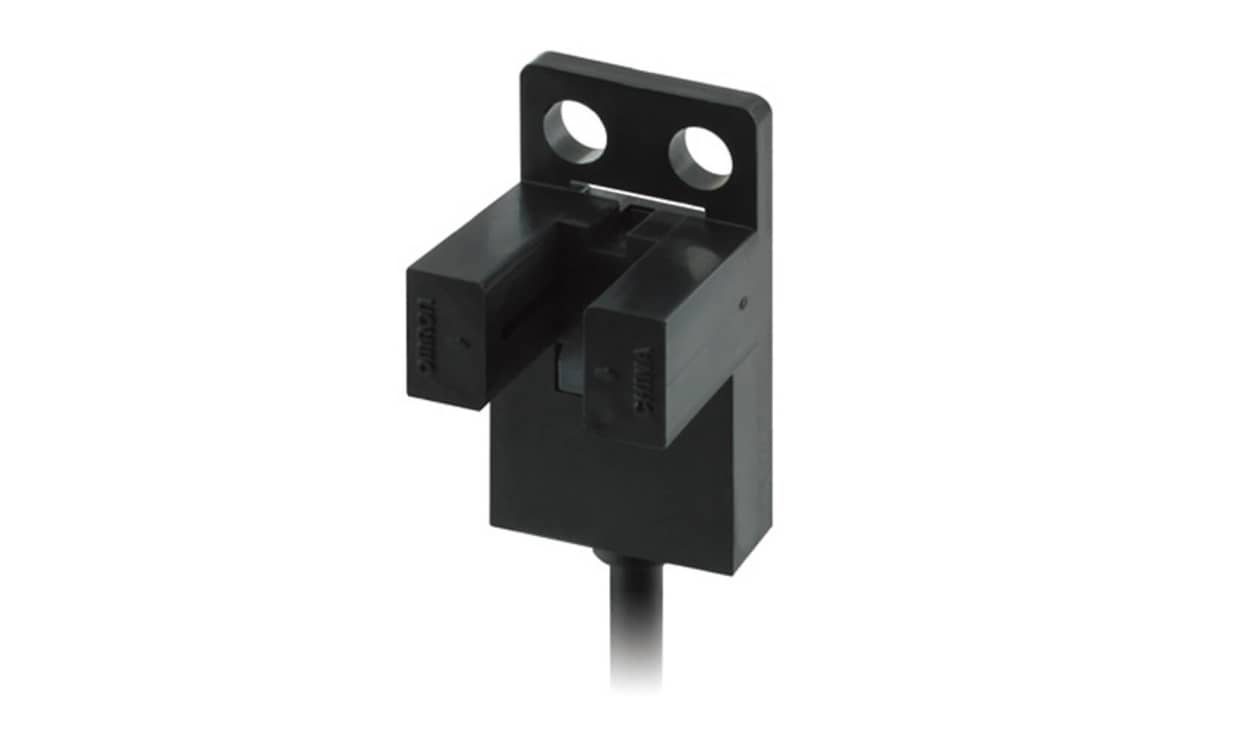

OMRON EE-SX674-WR 1M | Through-Beam Fork Sensor | 5 mm, NPN, Cable
This OMRON through-beam fork sensor, part number EE-SX674-WR 1M, switches an NPN output and has a detection range of 5 mm. The sensor has a cable connection, works with an infrared light source and meets IP50.
- Maximum voltage 24 V DC
- Current up to 35 mA
- 0.17 ms response time
- Works from -25 °C to +55 °C
- PBT housing
- Light-on / dark-on switching
- Detailed Description
- Specifications
- Downloads
Omron EE-SX67 Series Photoelectric Sensor, 5mm Detection Range, NPN Output Type - EE-SX674-WR 1M
Features & Benefits
• NPN output configuration for versatile connectivity
• High-speed response time of 0.17ms ensures quick detection
• Close mounting design facilitates easy installation in tight spaces
Applications
• Useful in packaging and sorting systems
• Ideal for automation in manufacturing environments
• Effective in conveyor systems for product tracking
What are the operational temperature limits of this sensor?
Can the sensor be configured for different output modes?
What is the significance of the IP50 rating for this sensor?
How does the sensor's response time impact its performance in automation?
What installation requirements should be considered for effective use?
| Brand | Omron |
| Series | EE-SX67 |
| Detection Type | Through Beam |
| Detection Range | 5 mm (0.197 in) |
| Sensor Style | Fork |
| Output Type | NPN |
| Electrical Connection | Cable |
| Switching Mode | Light / Dark switching |
| Light Source | Infrared |
| Response Time | 0.17 ms |
| Maximum DC Voltage | 24V |
| IP Rating | IP50 |
| Maximum Current | 35 mA |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Housing Material | PBT |
| Maximum Operating Temperature | +55 °C (131 °F) |
| Terminal Type | Pre-Wired |
| Standards Met | CE |
| Mounting Type | Close Mounting |
