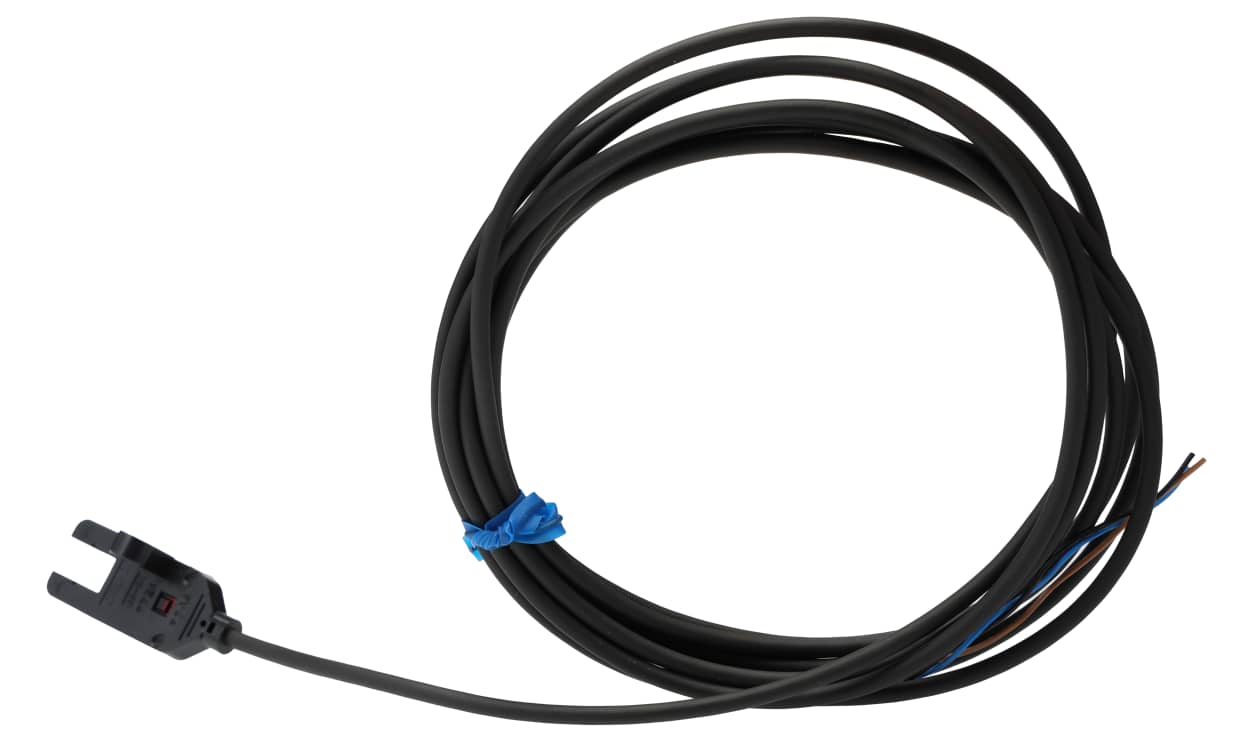

Name: Omron EE-SX772A 2M, Through Beam Photoelectric Sensor, Fork Sensor, 5 mm Detection Range
Brand: OMRON
SKU: EE-SX772A 2M
Availability: OutOfStock

Omron EE-SX772A 2M, Through Beam Photoelectric Sensor, Fork Sensor, 5 mm Detection Range - generaltechuae

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron EE-SX772A 2M, Through Beam Photoelectric Sensor, Fork Sensor, 5 mm Detection Range

Part Number : EE-SX772A 2M

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron EE-SX77/87 Series Photoelectric Sensor, Fork Style, Through Beam Detection - EE-SX772A

This photoelectric sensor is designed for precision detection applications within industrial settings. With a fork-style profile and a detection range of 5mm, it ensures efficient operation in compact mounting environments. The sensor operates using infrared light and features a pre-wired connection for easy installation.

Features & Benefits

• Compact design facilitates dense mounting for space efficiency
• Quick response time of 0.17ms enhances operational speed
• Infrared light source ensures reliable detection of objects
• NPN output configuration allows compatibility with various usage
• IP64 rating protects against dust and moisture ingress

Applications

• Integration in assembly line systems for object detection
• Utilised in packaging machines to confirm product presence
• Effective in conveyor systems for precise positioning
• Ideal for material handling systems in warehouse automation

What is the maximum operating temperature for usage?

The sensor can function within an operating temperature range of -25°C to +55°C, making it suitable for a variety of environments.

How does the NPN output work in this sensor?

The NPN output sensor operates by providing a low-resistance path to earth when triggered, allowing for the control of external loads within its specified current limits.

Can this device handle ambient light conditions?

Yes, it is designed to operate effectively in environments with ambient light levels up to 1,000 lx, providing consistent performance in brightly lit areas.

What is the expected lifespan of the infrared LED?

The LED's longevity is typically determined by its operational conditions, but they are engineered to provide reliable service under normal usage scenarios within the specified temperature ranges.

Brand	Omron
Sensor Style	Fork
Detection Type	Through Beam
Detection Range	5 mm
Output Type	NPN
Maximum DC Voltage	24V
Terminal Type	Pre-Wired
Light Source	Infrared
IP Rating	IP64
Maximum Current	100 mA
Response Time	0.17 ms
Series	EE-SX77/87
Maximum Operating Temperature	+55°C
Minimum Operating Temperature	-25°C
Housing Material	PBT

Omron EE-SX772A 2M, Through Beam Photoelectric Sensor, Fork Sensor, 5 mm Detection Range

DOWNLOAD CATALOG

EE-SX772A 2M Datasheet - EE-SX772A A700000014067897

EE-SX772A 2M Selection Guide - Photomicrosensor A700000014068278
