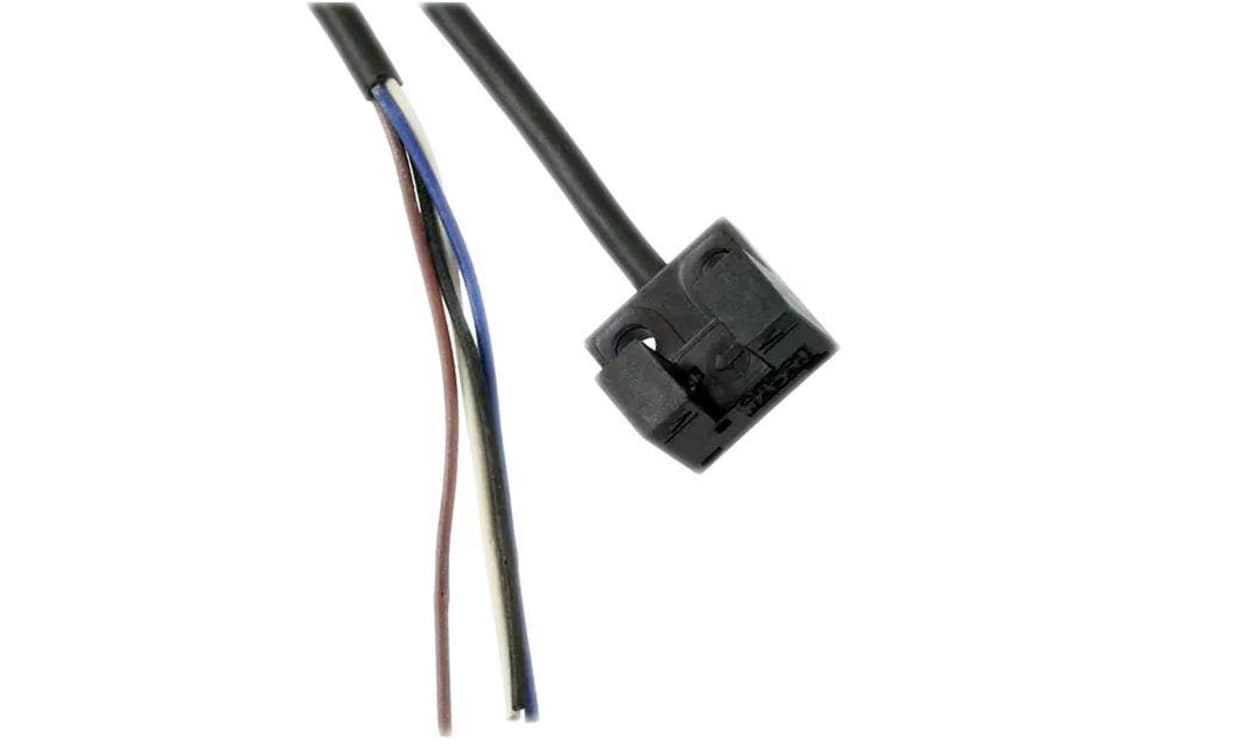

Omron EE-SX951-W 1M, Through Beam Photoelectric Sensor, Block Sensor, 5 mm Detection Range

Part Number : EE-SX951-W 1M

Availability: Sold out

Detailed Description
Specifications

Omron EE-SX95 Series Photoelectric Sensor, Through-Beam Detection, Detection Range 5mm - EE-SX951-W 1M

This photoelectric sensor delivers exceptional precision in sensing applications. Designed in a compact block style, it is ideal for automation and industrial environments. The sensor features an infrared light source operating efficiently over a detection range of 5mm, ensuring accurate object detection with minimal interference. With an IP50 rating, it is protected against dust ingress, making it suitable for demanding applications.

Features & Benefits

• Compact design allows for versatile installation options
• Bright LED indicator aids visibility from multiple angles
• Sensing slot depth of 6.5mm enhances object detection reliability
• NPN output configuration supports seamless integration into systems
• CE certified to meet international safety and quality standards
• Equipped with load short-circuit protection for added safety

Applications

• Utilised in automated assembly lines for precise object detection
• Ideal for packaging machines to monitor product flow
• Employed in conveyor systems for position sensing
• Effective in preventing object collisions in robotic systems

What is the maximum current and voltage specification for operation?

It operates at a maximum DC voltage of 24V with a current consumption of 15mA.

How does the sensing mechanism work in diverse lighting conditions?

This sensor employs a through beam detection method, utilising infrared light to identify objects even under varying ambient illumination levels, up to 1,000lx.

What materials compose the housing, and how does this influence durability?

The sensor's housing is made of polybutylene phthalate, ensuring resistance to harsh environments and enhancing longevity.

Can it be easily replaced with existing sensors?

Yes, it can be mounted using either M2 or M3 screws, allowing for easy replacement of older models.

Brand	Omron
Sensor Style	Block
Detection Type	Through Beam
Detection Range	5 mm
Output Type	NPN
Electrical Connection	4 Wire Cable 1 m
Maximum DC Voltage	24V
Light Source	Infrared
IP Rating	IP50
Maximum Current	15 mA
Series	EE-SX95
Housing Material	Polybutylene Phthalate
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+55°C
Standards Met	CE Certified
