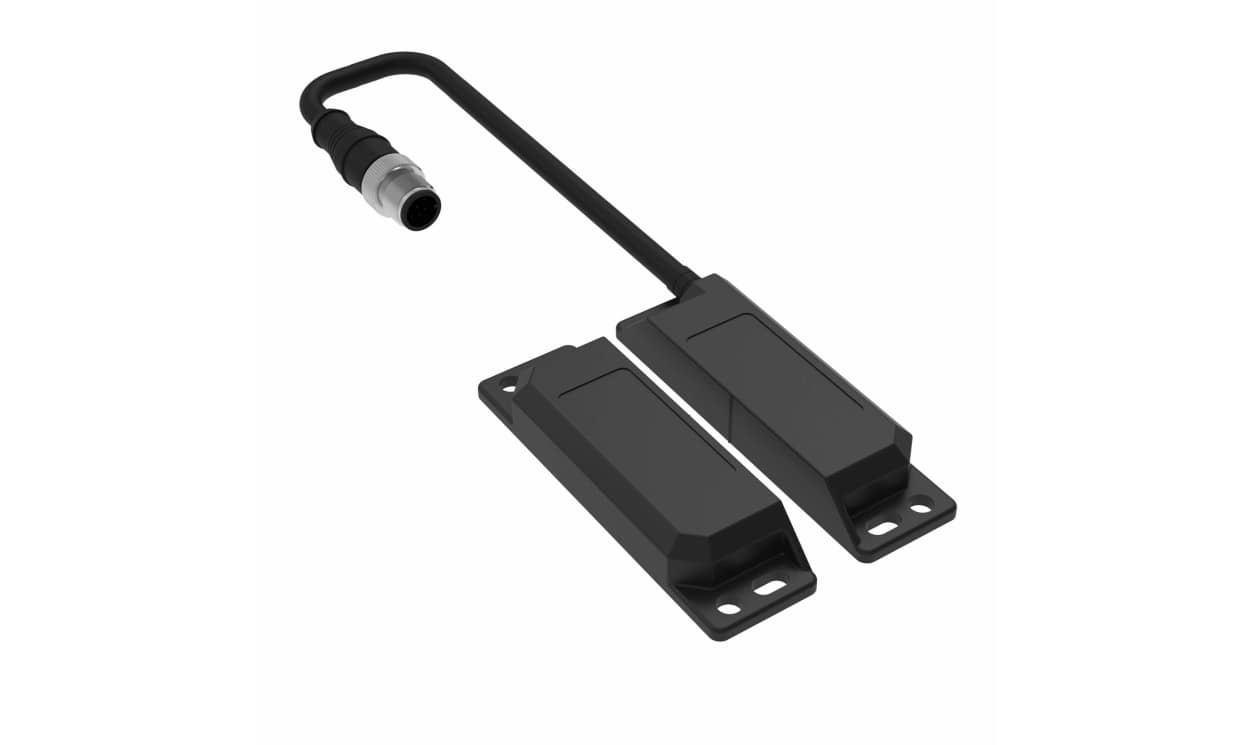

Name: Omron F3S-TGR-NLPU-21-M1J8, F3S-TGR-N_U Series Magnetic Non-Contact Safety Switch, 24V dc, Plastic Housing, NO/2NC, M12
Brand: OMRON
SKU: F3S-TGR-NLPU-21-M1J8
Availability: OutOfStock

Omron F3S-TGR-NLPU-21-M1J8, F3S-TGR-N_U Series Magnetic Non-Contact Safety Switch, 24V dc, Plastic Housing, NO/2NC, M12

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron F3S-TGR-NLPU-21-M1J8, F3S-TGR-N_U Series Magnetic Non-Contact Safety Switch, 24V dc, Plastic Housing, NO/2NC, M12

Part Number : F3S-TGR-NLPU-21-M1J8

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron F3S-TGR-N_U Series Non-Contact Safety Switch, 24V DC Supply Voltage, 10mm Switching Distance - F3S-TGR-NLPU-21-M1J8

This non-contact safety switch is designed for monitoring the status of guarding doors in diverse environments. With dimensions of 88mm in length, 25mm in width, and 13mm in depth, it operates at a supply voltage of 24V DC. Its housing is made from durable plastic and is rated IP67, providing excellent protection against dust and water ingress, essential for industrial settings.

Features & Benefits

• Non-contact operation prevents wear and contamination
• RFID coded actuator enhances safety compliance
• Compatible with all Omron safety controllers
• Designed to operate behind stainless steel fittings
• High hygiene standards suitable for food industry usage

Applications

• Utilised in monitoring access to automated production lines
• Effective for safeguarding doors in food processing facilities
• Applicable in machinery where particle contamination is a concern
• Integrated into safety systems in industrial automation setups

How does this product ensure long-term reliability in harsh conditions?

The switch is constructed with materials that can withstand operational environments ranging from -25°C to 80°C, ensuring consistent performance under varying temperatures. Its IP67 rating offers robust ingress protection, making it suitable for challenging conditions.

Can multiple units be connected with this switch?

Yes, it allows for the connection of up to three switches in series, facilitating versatile safety configurations without compromising on performance.

What is the actuator approach speed required for optimal function?

The actuator approach speed should be between a minimum of 4mm/s and a maximum of 1000mm/s to ensure reliable activation and deactivation.

How does its design support a hygienic environment?

Screw-hole covers facilitate a cleaner design, preventing dust buildup, making it ideal for use in environments with high hygiene demands, such as food and beverage production.

Brand	Omron
Supply Voltage	24V dc
Safety Contacts	NO/2NC
Housing Material	Plastic
Connection Type	M12
Actuator Type	Unique Coded
Auxiliary Contacts	NO
Sensor Principle	Magnetic
Safety Category	4
Actuator Included	Yes
Switching Distance	10 mm
Series	F3S-TGR-N_U
IP Rating	IP67
Supply Current	30mA
Depth	13mm
Length	88mm
Width	25mm
Number of Approach Directions	20

Omron F3S-TGR-NLPU-21-M1J8, F3S-TGR-N_U Series Magnetic Non-Contact Safety Switch, 24V dc, Plastic Housing, NO/2NC, M12

DOWNLOAD CATALOG

F3S-TGR-NLPU-21-M1J8 Datasheet - F3S-TGR-NLPU-21-M1J8 A700000014360589
