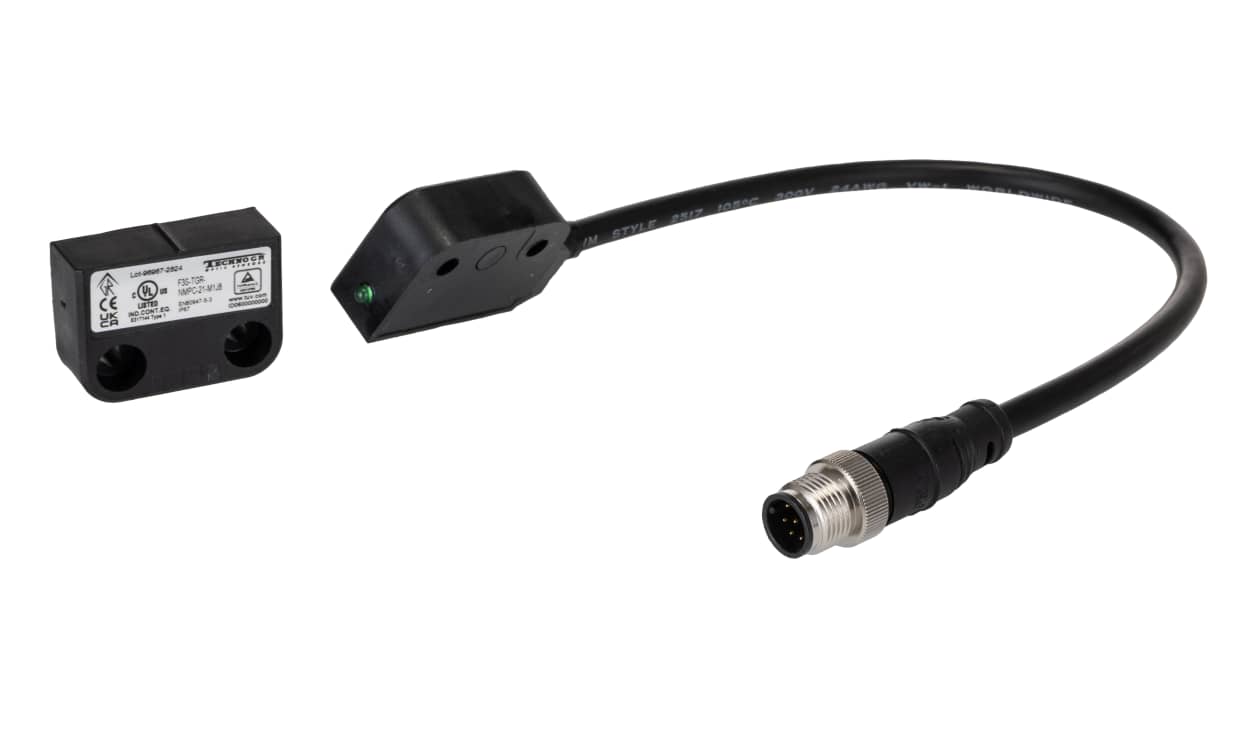

Name: Omron F3S-TGR-NMPC-21-M1J8, F3S Series Magnetic Non-Contact Safety Switch, 24V dc, Polyester Housing, NO/2NC, M12
Brand: OMRON
SKU: F3S-TGR-NMPC-21-M1J8
Availability: OutOfStock

Omron F3S-TGR-NMPC-21-M1J8, F3S Series Magnetic Non-Contact Safety Switch, 24V dc, Polyester Housing, NO/2NC, M12

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron F3S-TGR-NMPC-21-M1J8, F3S Series Magnetic Non-Contact Safety Switch, 24V dc, Polyester Housing, NO/2NC, M12

Part Number : F3S-TGR-NMPC-21-M1J8

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron F3S Series Non-Contact Safety Switch, M12 Connector, IP67 - F3S-TGR-NMPC-21-M1J8

This non-contact safety switch is designed for safety applications in various industrial environments. Made from durable polyester housing, it has a compact depth of 13mm and a length of 36mm, facilitating easy integration into safety systems. The device utilises hall technology and can connect up to 20 switches in series, making it suited for comprehensive monitoring needs.

Features & Benefits

• Hall technology allows for non-contact operation, minimising wear
• IP67 rating offers protection against dust and water ingress
• Compatible with all Omron safety controllers
• Includes a coded actuator for enhanced safety
• LED indicator enables quick diagnostics and troubleshooting
• Suitable for high-pressure cleaning processes

Applications

• Guarding systems for industrial machinery
• Automation tasks requiring non-contact solutions
• Food processing environments
• Settings that necessitate high hygiene standards

Can it withstand high temperatures?

Yes, it operates within a temperature range of -25 to 80°C.

Will it function properly in wet environments?

Yes, it is rated IP67 for protection against water.

Is it easy to diagnose faults?

Yes, the built-in LED indicator allows for quick fault diagnosis.

Can it be installed in series with other devices?

Yes, up to 20 switches can be connected in series.

Is it compatible with various safety control systems?

Yes, it operates effectively with all Omron safety controllers.

Brand	Omron
Supply Voltage	24V dc
Safety Contacts	NO/2NC
Housing Material	Polyester
Connection Type	M12
Switch Type	Non Contact
Actuator Type	Coded
Safety Category	4
Sensor Principle	Magnetic
Actuator Included	Yes
Series	F3S
Switching Distance	12 mm
IP Rating	IP67
Number of Approach Directions	2
Width	26mm
Length	36mm
Depth	13mm

Omron F3S-TGR-NMPC-21-M1J8, F3S Series Magnetic Non-Contact Safety Switch, 24V dc, Polyester Housing, NO/2NC, M12
